JD25, JDH25 Series of Gantry Punching Machine JD25-100,press Punch,power Press Machine,puncher With Cheap Price
- Shenzhen
- T/T Credit Card
You May Like
-
JD25, JDH25 Series of Gantry Punching Machine JD25-1200,press Punch,power Press Machine,puncher for Sale
-
J23-6.3 High Quality Power Press,punching Machine for Sale 6.3T
-
J23-16 Ton Sheet Metal Machinery Punching Machine , Eccentric Press Machine
-
JB04-0.5T Bench Press Machine Sale
-
JB04-4T Bench Power Press
-
JB04-1.5T Bench Power Press
Product Details
| Place of Origin | Guangxi, China | Brand Name | Xiashi | |
| Model Number | JD25-100 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
JD25, JDH25 series of Gantry punching machine JD25-100,press punch,power press machine,puncher with cheap price
Features
JD25, JDH25 series of Gantry punching machine adopts welded steel fuselage, mainly used for punching net hole, square hole net, windbreak, acoustics meshes, screen; anti slide, ceiling, airport chair, decorative board, MDF, cable bridge punching, die with different specifications can be. Install upper rack wheel or feeder feeder, can greatly improve the production efficiency of user. JDH25 type equipped with combined pneumatic friction clutch, sensitive action; adopts the double safety electromagnetic valve, safe and reliable; can also be matched with RVS series computer industrial control system, the design of the embedded system, the 32 bit ARM processor, intelligent control, effective monitoring of mold, charge, discharge action, ensure the production of reliable operation. With high automation, high production efficiency, stable performance, safety and reliability.
Specification
| Model | JD25-80 | JD25-100 | JD25-120 | JDH25-160 | JDH25-200 | JDY25-200A | ||
| Nominal pressure | KN | 800 | 1000 | 1200 | 1600 | 2000 | 2000 | |
| Slide travel | mm | 30 | 30 | 30 | 30 | 30 | 30 | |
| No. of travel | fixed | min-1 | 60 | 60 | 60 | 60 | 60 | 75 |
| changable | 40-70 | 40-70 | 40-70 | 40-70 | 40-70 | 40-75 | ||
| Die height | mm | 210 | 210 | 250 | 260 | 280 | 260 | |
| Die Height Adjustment | mm | 50 | 50 | 50 | 50 | 50 | 100 | |
| Distance between slider center and machine | mm | 210 | 210 | 210 | 210 | 210 | / | |
| Size of worktable ( F.B.xL.R. ) | mm | 400x1640 | 400x1860 | 400x1998 | 400x1860 | 400x1860 | 300x1640 | |
| Thickness of worktable | mm | 150 | 150 | 150 | 160 | 170 | 150 | |
| Slider bottom size (F.B.xL.R.) | mm | 200x1130 | 200x1300 | 210x1450 | 210x1300 | 210x1300 | 300x1100 | |
| Distance between columns | mm | 1300 | 1500 | 1650 | 1500 | 1500 | 1300 | |
| Main motor power | model | KW | ||||||
| power | 7.5 | 11 | 11 | 15 | 18.5 | 22 | ||
| Worktable height | mm | 900 | 900 | 950 | 1000 | 1100 | ||
| Overall dimension(LxWxH) | mm | 2200x1550 x2400 | 2400x1550 x2400 | 2600x1650 x2500 | 2260x1550 x2600 | 2260x1550 x2600 | 2510x1860 x3200 | |
| Net weight | kg | 7000 | 7500 | 8300 | 9000 | 11000 | 17500 | |

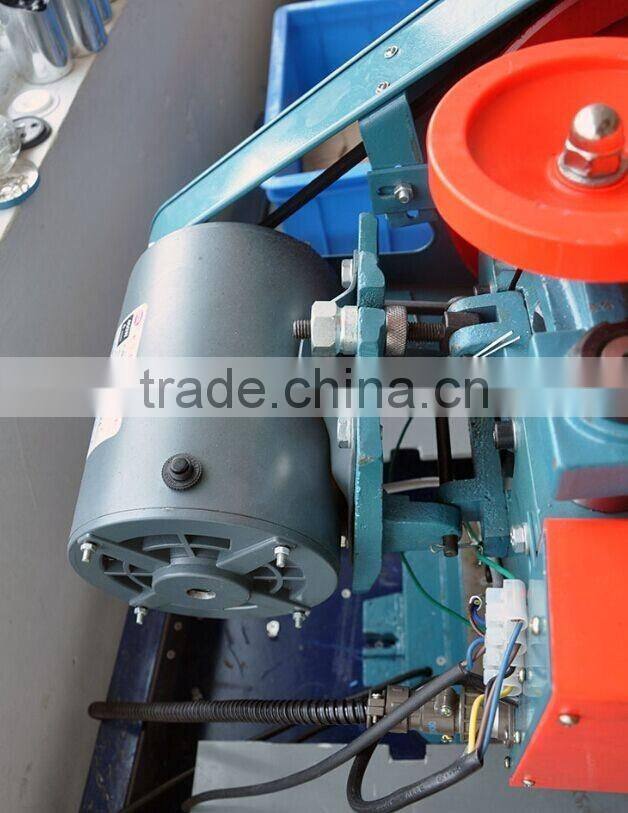

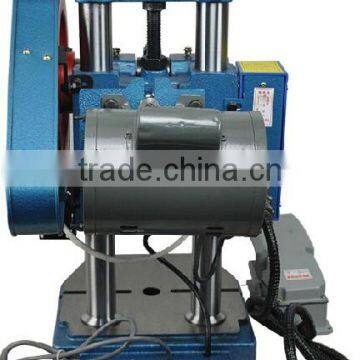

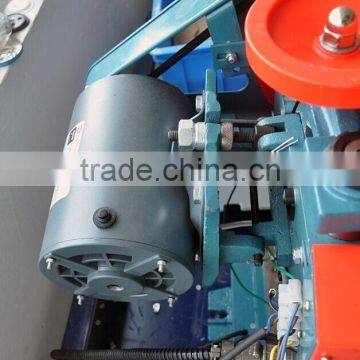

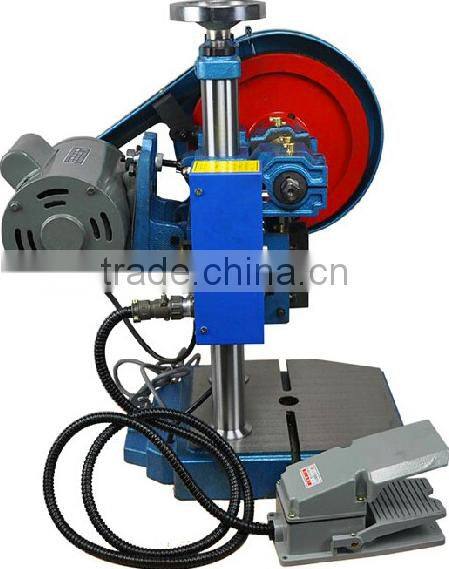

Pictures for your reference
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
