JB04-3T Blanking Press Punching Machine Power Press Machine
- qingdao
You May Like
-
J23-6.3 Ton Sheet Metal Machinery Punching Machine , Eccentric Press Machine
-
J23-40 Ton Sheet Metal Machinery Punching Machine , Eccentric Press Machine
-
JD25, JDH25 Series of Gantry Punching Machine JD25-80,power Press Machine,punch Press for Sale
-
JD25, JDH25 Series of Gantry Punching Machine JD25-100,power Press Machine,punch Press for Sale
-
JD25, JDH25 Series of Gantry Punching Machine JD25-120,power Press Machine,punch Press for Sale
-
JD25, JDH25 Series of Gantry Punching Machine JDH25-160,power Press Machine,punch Press for Sale

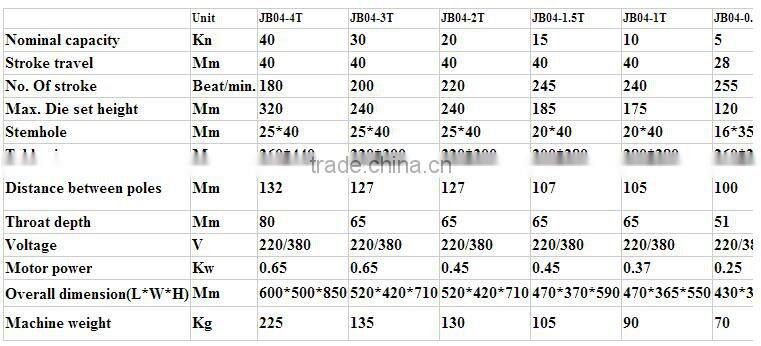

Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Mechanical | Place of Origin | Shandong, China | |
| Model Number | JB04-3T | Voltage | 380V/220V Optional | |
| Power(W) | 0.65kw | Weight | 135kg | |
| Dimension(L*W*H) | 520*420*710mm | Certification | CE ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

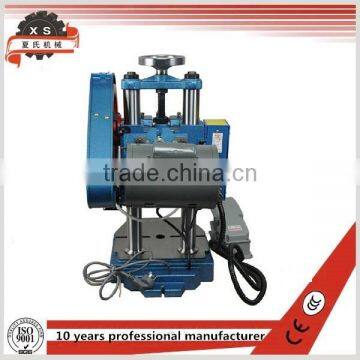

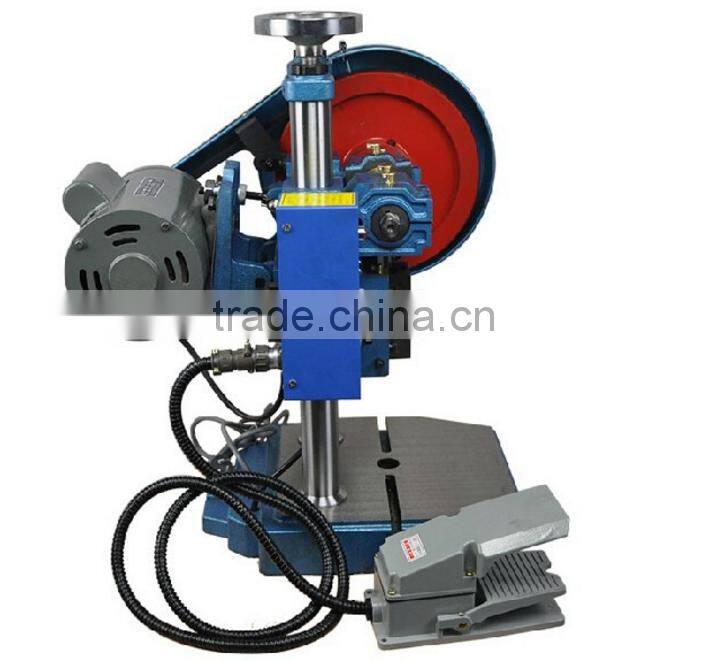

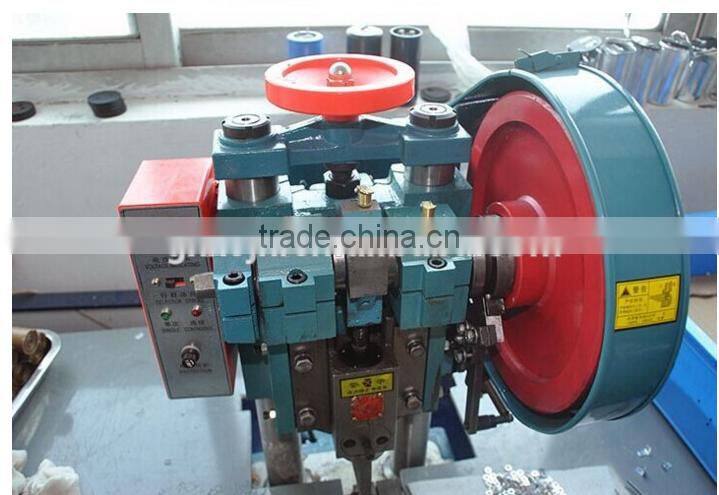

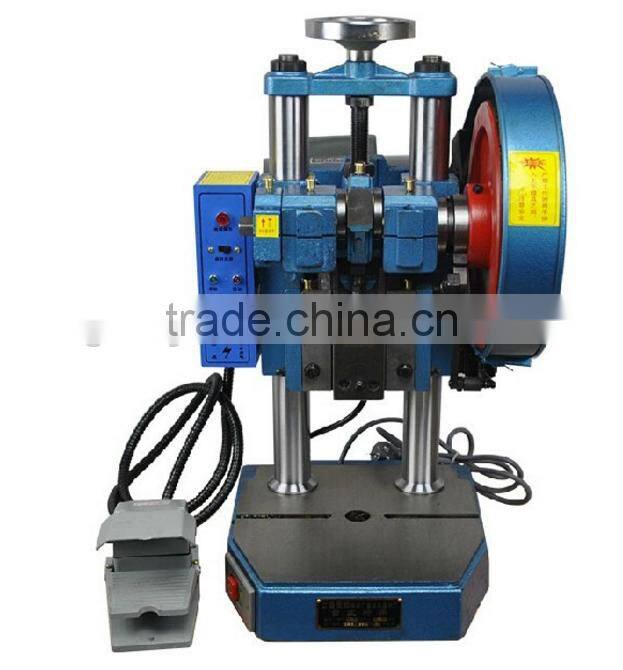

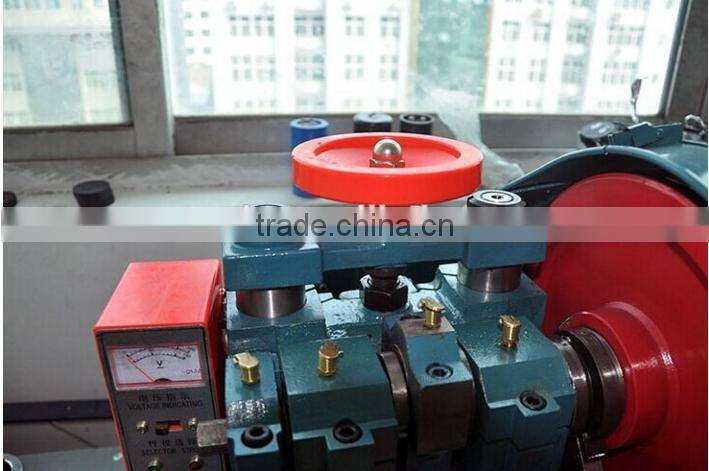

JB04-3T blanking press punching machine power press machine
Description:
Electric punching machine
1.Control by foot or hand Pedal.
2.Punching Power( 1Ton to 3 Tons ).
3.Compact and safely structure
It has the charactors of good rigidity,high precision,refined structure,top quality,
stable,performance and safe and convinent operation.

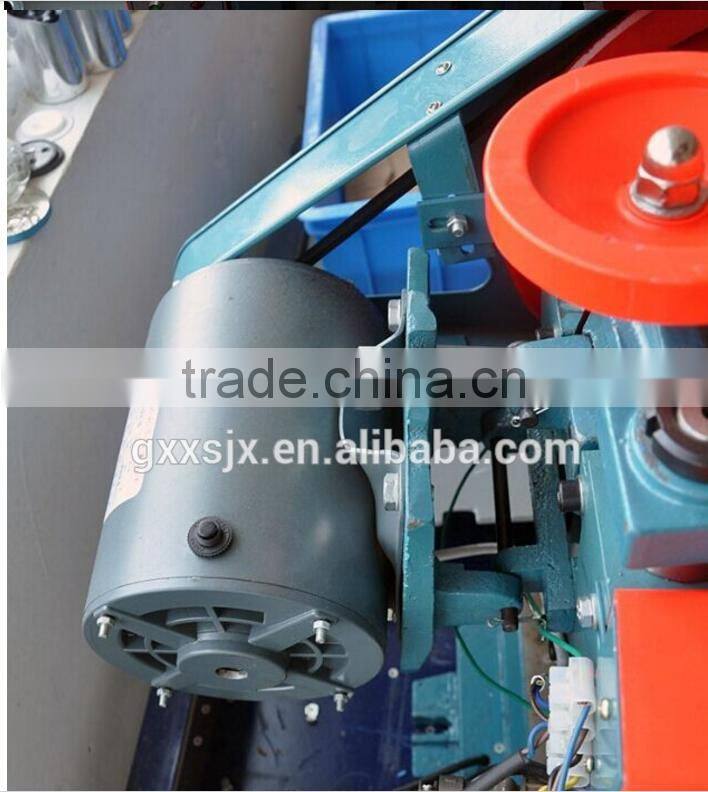

The major driving manner is that the electromotor drives the fly wheel ,through the function of clutch to punch the cards.Because the punching The speed is fast and the power is strong,the edge of the cards is smoothly cut .The machine is desgined with precise automatic punching location holes.
Main usage
Used in punching, bending, blanking, cutting, riveting, etc. this machine usage with die, safely and high efficiency operate,using high quality material, make sure the edge of finished products beautiful and smoth. the methods of punch crad you can choose by youself, for example, the punch method of adjust edge distance and fixation punch method.
