125T Mechanical Inclinable Punching Machine for Sale J23-125

FOB Price

US$ 2,000 - 3,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China	Brand Name	Xiashi
Model Number	J23-125	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Features

1.punching machine,punch press machine
2.Casting machine fuselage with stable performances
3. easy for adjustment

Specification

Parameters of punching machine		Unit	J23-6.3	J23-16	J23-40	J23-63	J23-80	J23-100	J23-125
Nominal pressure on sliding block		KN	63	160	400	630	800	1000	1250
Slide stroke		mm	35	55	90	110	120	140	150
Stroke frequency	Fast speed	times	170	120
	Low speed	min			45	40	38	38	35
Die height		mm	150	220	320	390	440	480	500
Die Height Adjustment		mm	30	45	65	80	90	100	100
Distance between slider center and machine		mm	110	160	250	310	350	380	390
Vertical columns distance		mm	150	220	340	420	450	560	550
Slider bottom size	L*R	mm	140	200	300	400	430	540	540
	F*B	mm	120	180	220	360	360	480	480
Size of handle hole	Diameter	mm	30	40	50	50	60	60	60
	Depth	mm	55	60	70	70	75	75	75
Size of worktable	L*R	mm	310	450	700	860	950	1080	1100
	F*B	mm	200	300	460	570	650	710	720
Thickness of worktable		mm	30	40	65	80	100	120	130
Max. inclination angle			45	35	30	20	20	15	13
Worktable height		mm	750	750	850	850	850	850	860
Size	F*B	mm	780	1150	1721	1958	2060	2254	2200
	L*R	mm	620	847	1335	1500	1715	1790	1790
	High	mm	1503	1910	2488	2868	3290	3625	3590
Anchor bolts distance	F*B	mm	530	780	1060	1300	1360	1550	1710
	L*R	mm	314	450	750	920	1010	1130	1110
Power of electric motor		KW	0.75	1.5	5.5	7.5	7.5	11	11
Weight(Approximate)		KG	420	1095	3600	5580	8020	10800	12035

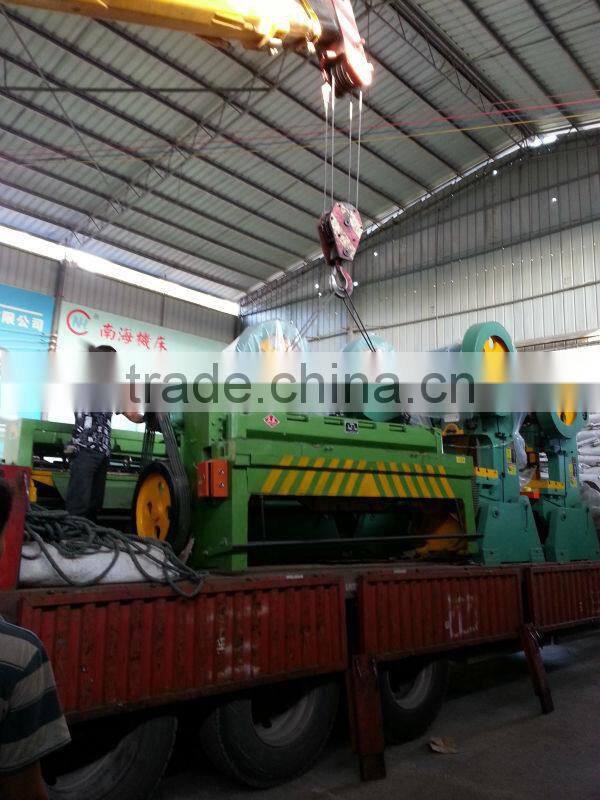

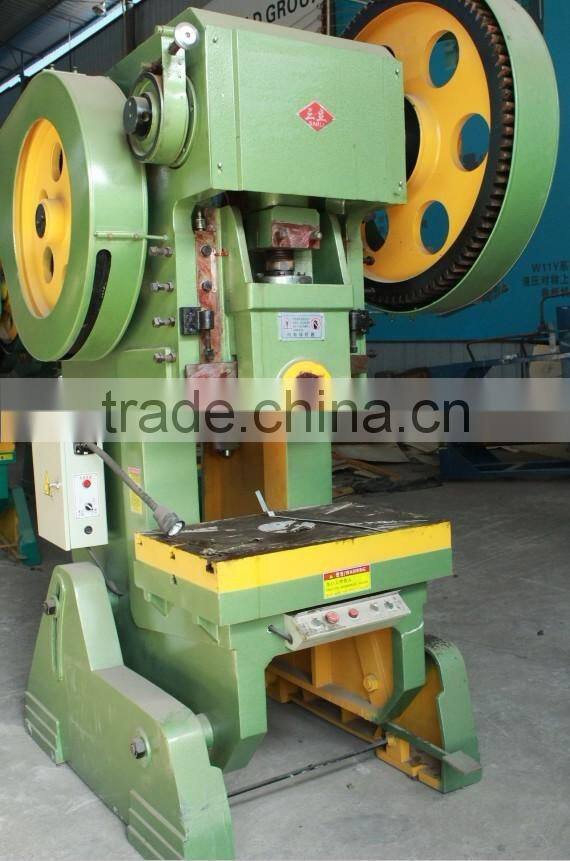

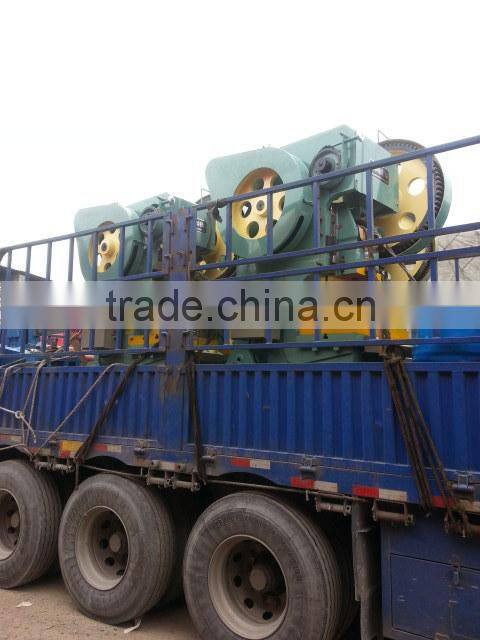

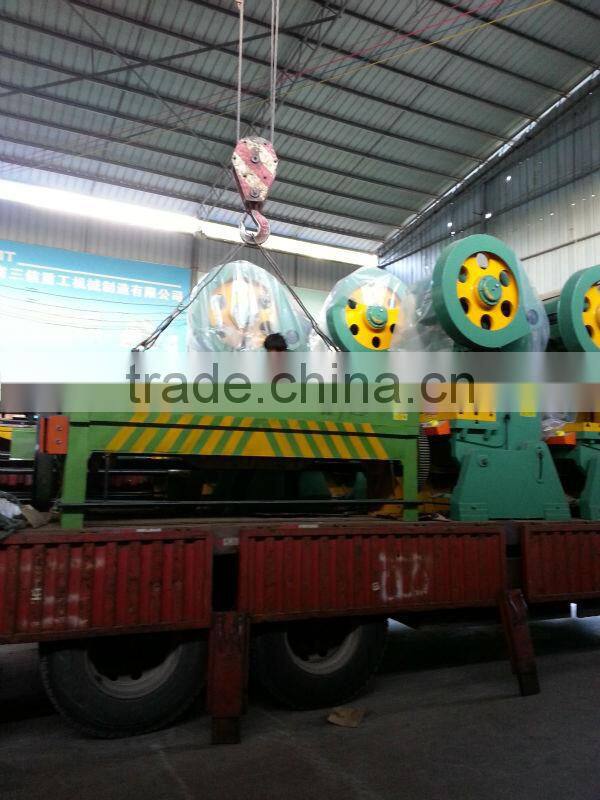

Pictures for your reference

Guangxi Xiashi Machinery Equipment Co., Ltd.: Contact nameChristina Chen
Chat Now; Phone86-772-2729581; AddressNo.68-8 Hangyin Road, Liuzhou, Guangxi
