Home > Products > Punching machine,Power press > JD25, JDH25 Series of Gantry Punching Machine JDY25-200A,power Press Machine,punch Press for Sale

JD25, JDH25 Series of Gantry Punching Machine JDY25-200A,power Press Machine,punch Press for Sale

FOB Price

US$ 1,500 - 2,000 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China	Brand Name	Xiashi
Model Number	JDY25-200A	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

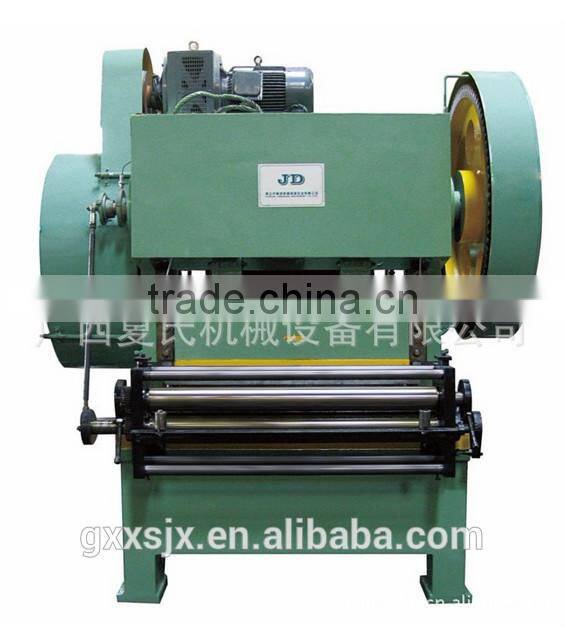

JD25, JDH25 series of Gantry punching machine JDY25-200A,power press machine,punch press for sale

Product Description

Features

JD25, JDH25 series of Gantry punching machine adopts welded steel fuselage, mainly used for punching net hole, square hole net, windbreak, acoustics meshes, screen; anti slide, ceiling, airport chair, decorative board, MDF, cable bridge punching, die with different specifications can be. Install upper rack wheel or feeder feeder, can greatly improve the production efficiency of user. JDH25 type equipped with combined pneumatic friction clutch, sensitive action; adopts the double safety electromagnetic valve, safe and reliable; can also be matched with RVS series computer industrial control system, the design of the embedded system, the 32 bit ARM processor, intelligent control, effective monitoring of mold, charge, discharge action, ensure the production of reliable operation. With high automation, high production efficiency, stable performance, safety and reliability.

Specification

		Model	JD25-80	JD25-100	JD25-120	JDH25-160	JDH25-200	JDY25-200A
		Model	JD25-80	JD25-100	JD25-120	JDH25-160	JDH25-200	JDY25-200A
Nominal pressure		KN	800	1000	1200	1600	2000	2000
Slide travel		mm	30	30	30	30	30	30
No. of travel	fixed	min-1	60	60	60	60	60	75
No. of travel	changable	min-1	40-70	40-70	40-70	40-70	40-70	40-75
Die height		mm	210	210	250	260	280	260
Die Height Adjustment		mm	50	50	50	50	50	100
Distance between slider center and machine		mm	210	210	210	210	210	/
Size of worktable ( F.B.xL.R. )		mm	400x1640	400x1860	400x1998	400x1860	400x1860	300x1640
Thickness of worktable		mm	150	150	150	160	170	150
Slider bottom size (F.B.xL.R.)		mm	200x1130	200x1300	210x1450	210x1300	210x1300	300x1100
Distance between columns		mm	1300	1500	1650	1500	1500	1300
Main motor power	model	KW
Main motor power	power	KW	7.5	11	11	15	18.5	22
Worktable height		mm	900	900	950	1000	1100
Overall dimension(LxWxH)		mm	2200x1550 x2400	2400x1550 x2400	2600x1650 x2500	2260x1550 x2600	2260x1550 x2600	2510x1860 x3200
Net weight		kg	7000	7500	8300	9000	11000	17500

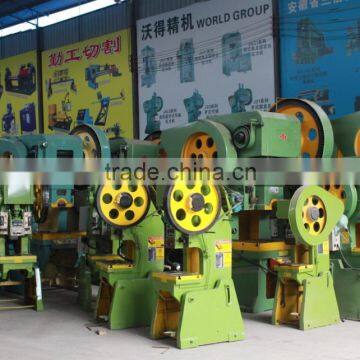

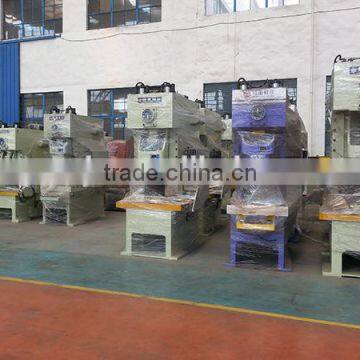

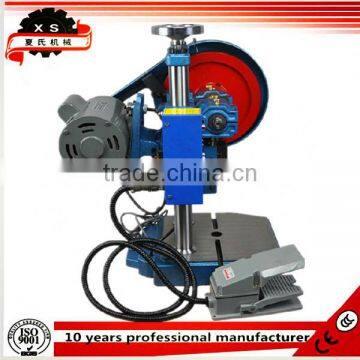

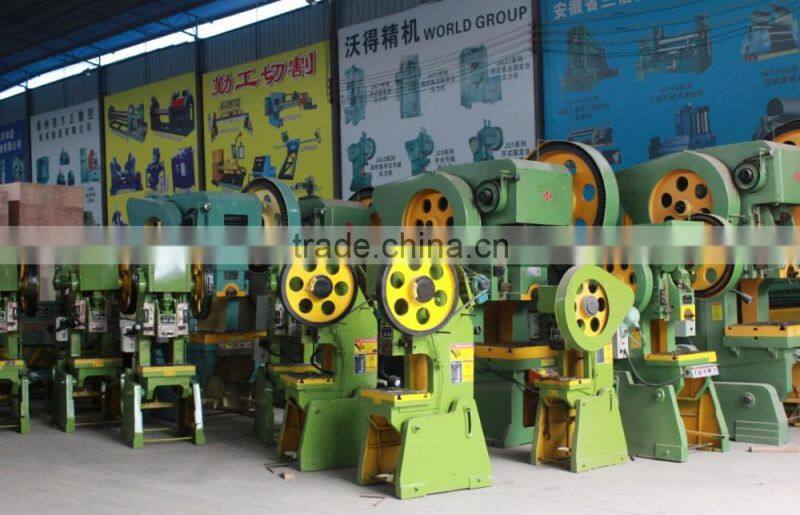

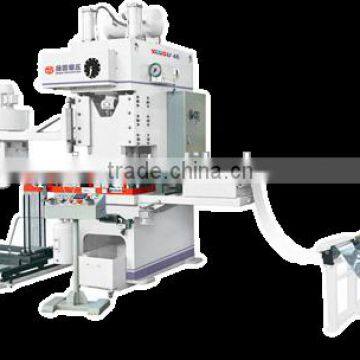

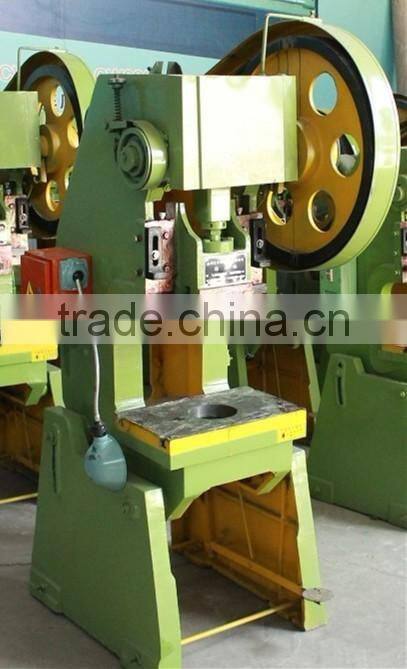

Pictures for your reference

Why Choose Us?

We have our own factory and strong production capacity.
we insist on good quality and have strict quality standards
The hiring of experienced staff to guarantee high quality.
Our product can be made as per your requirement .
24 hour online communication for you.
We have more than 6 years of export experience.

FAQ

Q: What information should I let you know, if I want to get a product offer?

A: 1. the size of your work piece

2. the CNC system you preferred if you need CNC type

3. the work piece drawing if you have

Q: How to control the quality of production processes?

A: We have a professional quality inspectors to check on the quality of the finished product.

Q: Is it possible to visit your factory?

A: It is very convenient to visit us and all clients from around the world are highly welcomed.

Q: What’s the MOQ?

A: The MOQ is 1 set.

Q: What’s the quality assurance and service ?

A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
