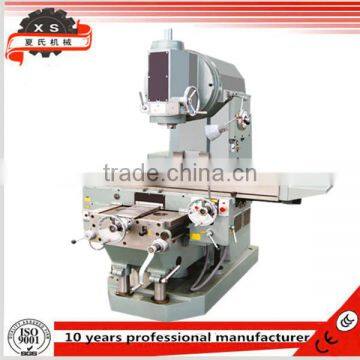

universal heavy duty vertical knee-type milling machine X5042B
- 300 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
CNC milling machine XK7120
-
Dependable Performance Universal swivel head knee type universal vertical milling machine XJ6225C For Sale
-
XK713 China CNC milling machine price with 3 axis
-
X5032x16 horizontal milling machine with low price
-
X5036 horizontal milling machine price with high quality
-
mini drilling and milling machine HQ800
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | XiaShi | Model Number | X5042B | |
| Type | Vertical | CNC or Not | Normal | |
| Voltage | 380v/50Hz | Power(W) | 11kw | |
| Dimension(L*W*H) | 3150x2200x3060mm | Weight | 5400kg | |
| Certification | ISO9001,CE,3C | Warranty | 1Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
X5042b Heavy-Duty Vertical Knee-Type Milling Machine
X5042B heavy-duty vertical knee-type milling machine is a general purpose machine which
can be used in wide range.
Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces.
Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. With high rigidity, accuracy and efficiency, it is an ideal
machine tool for machining process, maintenance, instrument, die and moulds.
"T type" lead screw in three axis ensures convenient operation, reliable performance, and higher processing accuracy.
The movement direction is changed through mechanical clutch. Inside the feed gear box,
mechanical clutch instead of magnetic clutch to protect machine parts and electric
components and prolong lifetime.
Complete coolant and lubrication system.
DRO equipment is optional.
Technical parameter
Main Specification | Units | X5042B |
Table size | mm | 428×2000 |
T slots (N×W×D) | mm | 3×18×100 |
Longitudinal travel X | mm | 1250/1230 |
Cross travel Y | mm | 420/410 |
Vertical travel Z | mm | 480/470 |
Feed speed steps |
| 15 |
Feed speed ranges: Longitudinal X | mm/min | 10~ 1250 |
Cross Y | mm/min | 10~ 1250 |
Vertical Z | mm/min | 2.3~ 315 |
Rapid feed ranges: Longitudinal X | mm/min | 3200 |
Cross Y | mm/min | 3200 |
Vertical Z | mm/min | 800 |
Spindle quill travel | mm | 90 |
Spindle hole taper |
| 7:24 50# |
Diameter of spindle front bearing | mm | φ100 |
Spindle speed steps |
| 20 |
Distance between spindle nose to worktable surface | mm | 40-520 |
Spindle speed ranges | r/min | 18~1400 |
Max. rotary angle of vertical milling head |
| ±45º |
Feed motor power | kW | 3 |
Main motor power | kW | 11 |
Overall size | mm | 3150x2200x3060 |
Net weight | Kg | 5400 |
V/Frequency | Kg | 380/50 |
Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
