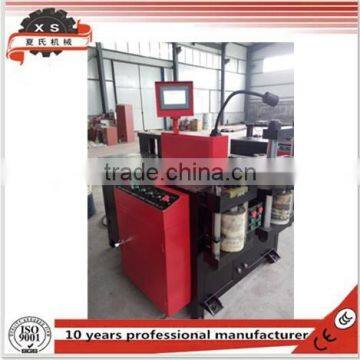

turret busbar processing machine XS-303K
- 300 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Place of Origin: | Guangxi, China | Brand Name: | XiaShi | Model Number: | XS-303K |
Machine Type: | Coiling Bending Machine | Raw Material: | Steel Bar | Material / Metal Processed: | Brass / Copper |
Power: | Hydraulic | Automation: | Automatic | Extra Services: | Other, Piercing & Punching |
Certification: | Other, CE, ISO9001,CE | After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
busbar machine has passed ISO9001-2008, CE certificate, and the machine also passed Chinese government exporting quality assurance quality certificate.
Instruction:
busbar machine is also called busbar processing machine, busbar shearing punching bending machine, copper busbar machine, aluminum busbar machine, which is mainly used in electric industry.
XS busbar machine including: XS-303D, XS-503D and XS-303K
This kind machine is mainly used for different types of processing ofcopper or aluminum busbar. One machine can carry out processing of punching, shearing and bending at the same time or respectively. It is easy to operate, convenient to use and high production efficiency. Soit is an ideal processing equipment for electrical appliance manufacture of high and low voltage.
Main Characteristics:
1, This machine has 3 units for punching, shearing and bending and through changing die, it can do special processing work such as pressing, embossing, pressing cable joint, twisting and so on.
2, It is convenient for using and higher production efficiency than traditional busbar processing equipments.
3, You can adjust working stroke of each unit conveniently to reduce machining auxiliary time and improve production efficiency.
4, We adopt vertical machining method for punching and shearing unit, so operation is flexible and convenient. We use flatedge shearing method, so the work piece surface is neater and smoother
5, Adopting horizontal bending type to achieve flat bending and vertical bending by changing tools.
6, There are 4 trundles. So the machine can be moved conveniently by adjusting them.
7, It can be installed 6 punching mold once time in punching turret unit. Save time of changing punching die, improve working efficiency.
Technical parameters:
|
| ZTMX-303K |
Punching | Max power(KN) | 300 |
Punching Diameter(mm) | 4.3~25 | |
Max thickness(mm) | 12 | |
Max width(mm) | 150 | |
Shearing | Max thickness(mm) | 12 |
Max width(mm) | 150 | |
Bending | Max power(KN) | 300 |
Max width(mm) | 150 | |
Vertical Bending | Max width (mm) | 120(12mm thick copper) |
Embossing |
| √ |
Pressing Cable Joint |
| √ |
Twisting |
| √ |
Outline Dimensions |
| 1300×1000×900 |
Power of Main Motor (KW) |
| 3×4 |
Accessories list or configuration:
No. | Name | Unit | quantity |
1 | Busbar machine | Set | 1 |
2 | Operation instruction | book | 1 |
3 | key | Set | 1 |
4 | Punching mould 9, 11, 13, 17,19, 21 | Set | 1 of each |
5 | Cutting mould(installed in machine) | Set | 1 |
6 | Horizontal bending mould(R5,R10) | Set | 1 |
7 | Vertical bending mould | Set | 1 |
8 | Foot-touch switch | PC | 3 |
9 | inner hexagon spanner | Set | 1 |
10 | spanner 27-30 | PC | 1 |
11 | Sealing ring | Wrap | 1 |
12 | oil filler | PC | 1 |
13 | oil filler pipe | PC | 1 |
14 | oil gun | PC | 1 |
15 | Location magnetism seat | PC | 2 |
16 | Nuts and bolts of bottom | PC | 4 |
17 | Location needle | PC | 1 |
Details of busbar processing:
More detailed picture for your reference:
