Help CenterSpecial Discount for Lathe Extended Horizontal CNC Lathe CK61125
Related Products
-
High Speed Precision CNC Turning Lathe Machine CB45NegotiableMOQ: 1 Set -
CK61125/2000 Horizontal Heavy Duty CNC Lathe MachineUS$ 5,000 - 50,000MOQ: 1 Set
-
Horizontal Flat Bed CNC Lathe Machine for Sale CKD6136i/750NegotiableMOQ: 1 Set
-
CKNC-6150B Cnc Lathe Machine Tool PriceUS$ 15,000 - 20,000MOQ: 1 Set
-
CW61140 Heavy Duty Lathe Machine With Gear HeadUS$ 10,000 - 20,000MOQ: 1 Set
Features
1.Horizontal machine structure ck61125 cnc lathe automatic metal heavy duty lathe machine
2. Spindle bore dia 130mm
3.Supersonic quenching of lead rail
4.Saddle and slide board joint surface using “plastic coated”processing.
5.Serving system adopts servo motor driven
6.Precision ball screws,precision composite bearing structure with high rigidity
7. Ball screw,rail joint surface with automatic forced lubrication
8.Overrall structure lathe bed,more stable.
Technical parameter
Term |
Specification |
CQK61125 |
|
|
Max. swing dia. over bed (mm) |
1250 |
|
Main specs |
Max. swing dia. over slide (mm) |
880 |
|
|
Max. length of workpiece (mm) |
1000, 1500, 3000 |
|
|
Form of main drive |
three step mechanical speed, Stepless Frequency Conversion Timing |
|
|
Step of spindle speed |
Stepless |
|
|
Spindle speed (r/min) |
18-600 |
|
Main drive style |
Structure of spindle nose |
C11 |
|
|
Spindle bore (mm) |
105 |
|
|
Taper of spindle bore |
120, 1:20 |
|
|
Model of main motor |
YVP180L– 6- 15KW |
|
|
Max traverse of toolpost (mm) |
X-direction:650; Z-direction:1200,1650, 3100 |
|
|
Diameter of ball screw× thread pitch (mm) |
X-direction:3205; Z-direction:6310 |
|
|
Rapid traverse feed (mm/min) |
X-direction:4000; Z-direction: 5000 |
|
|
Positioning accuracy (mm) |
X-direction: 0.025; Z-direction: 0.03 |
|
|
Repeatability accuracy (mm) |
X-direction: 0.01; Z-direction: 0.015 |
|
Feed |
Machining accuracy for workpiece |
IT6-IT7 |
|
|
Roughness of the workpiece surface |
Ra1.6 |
|
|
Diameter of tailstock quill (mm) |
100 |
|
Tailstock |
Travel of tailstock quill (mm) |
250 |
|
|
Taper of tailstock quill |
Mohs 6# |
|
|
Standard configuration |
four Electrical toolposts |
|
Toolpost |
Special configuration |
Six(eight) Electrical toolposts |
|
|
Repeatability accuracy (mm) |
0.008 |
|
|
Section of turning tool (mm) |
35×35 |
|
|
CNC system |
Standard |
GSK980TDb |
|
Special |
KND, FANUC, Siemens, |
|
Control system |
Servo drive motor |
X-direction: 130SJT-M150B; Z-direction: 175SJT-M220B |
|
Dimension (L*W*H) (mm) |
3750 (4750) (5500)×1920×1800 |
||
Net weight |
5000, 6000, 7000 |
||

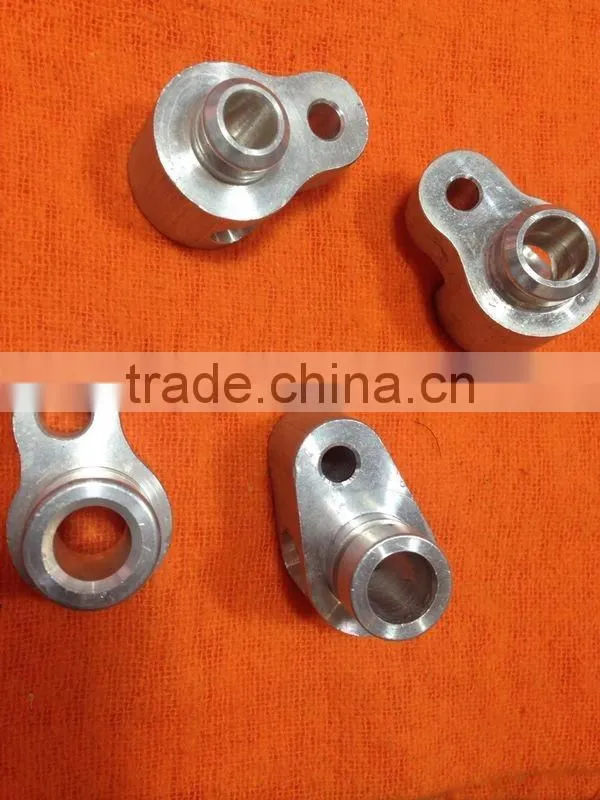

Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
We will pack the machine with standard export wooden case ,ensure the transport safety
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: warranty is one year, but we will offer lifetime service for machine.
