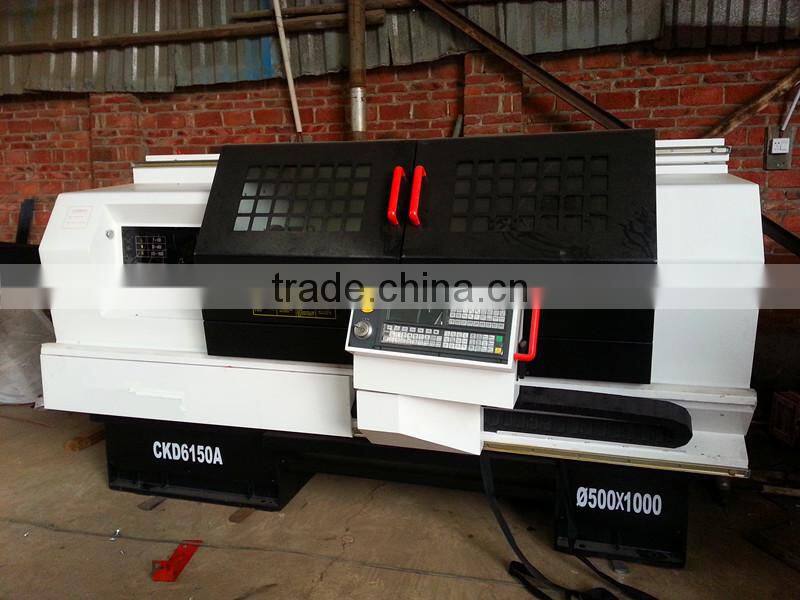

Horizontal Flat Bed CNC Lathe Machine for Sale CKD6136i/750

Specification

This CNC horizontal lathe machine is controlled by longitudinal (Z) and transverse (X) .It can automatically cutting for process of Able metric straight thread, end screw and inch straight thread for a variety of shaft and disk parts auto-complete machining external cylindrical surface, conical surface, circular surface, face, grooving, chamfering and so on. CKD6150A selection GSK, Beijing KND, Dalian, NC, Huazhong Century Star and other famous companies CNC system for workpiece machining cycle can be repeated. Suitable for many varieties, small batch production of complex, high-precision parts, especially to show superiority.

Feature

1.The machine adopts horizontal lathe layout of traditional . The overall design, sealing, safety standards are met. Bed, bed legs and other parts are used primarily base resin sand casting, artificial aging, excellent machine stability.

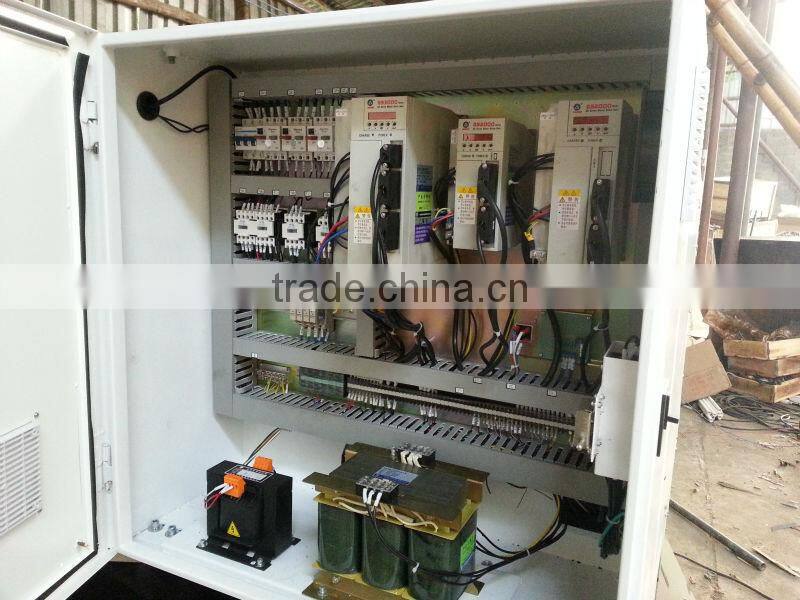

2.Machine longitudinal and lateral movement of the shaft with servo motor, precision ball screw, high rigidity and precision composite bearing drive, encoder position detection of semi-closed loop feedback control system. Guideway adopt international popular high-frequency hardening (hard track) plus "laminating" process, each motion axis response, high precision, long life.

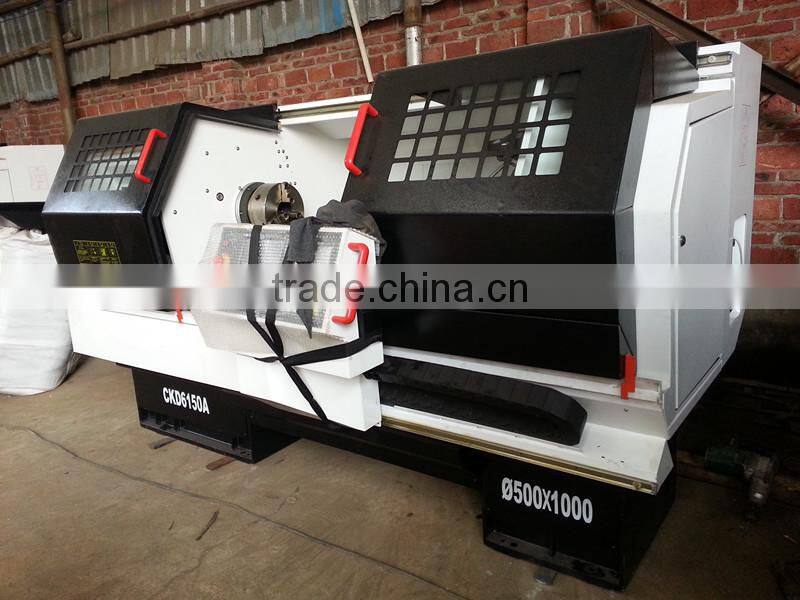

3.Appearance of the machine in accordance with international fashion trends protection design, novel and unique, waterproof, anti-dust, easy maintenance; reflects the characteristics of the times.

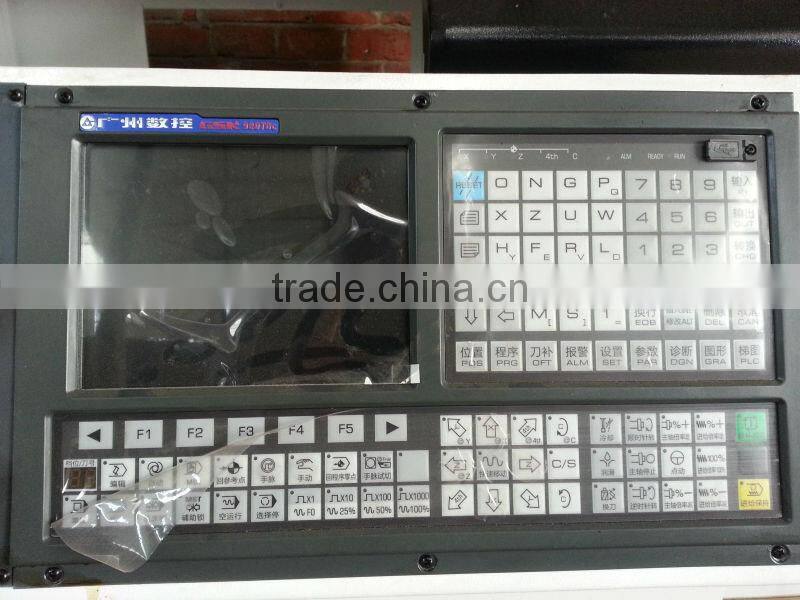

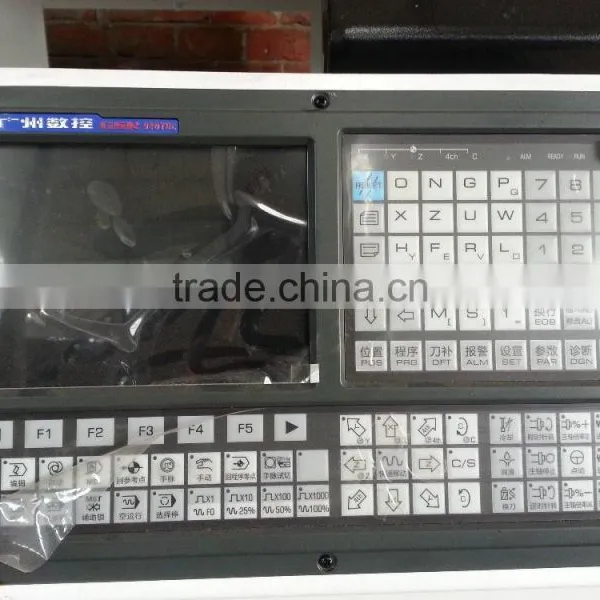

Machine operating system according to ergonomic principles, independence and rotation settings control box can be moved to any location convenient for the operator to the nearest knife, is a manifestation of human design.

4.With a focus on the ball screw and guide rail lubricators combined face mandatory automatic lubrication, which can effectively improve the life of the machine's dynamic response characteristics and screw rail.

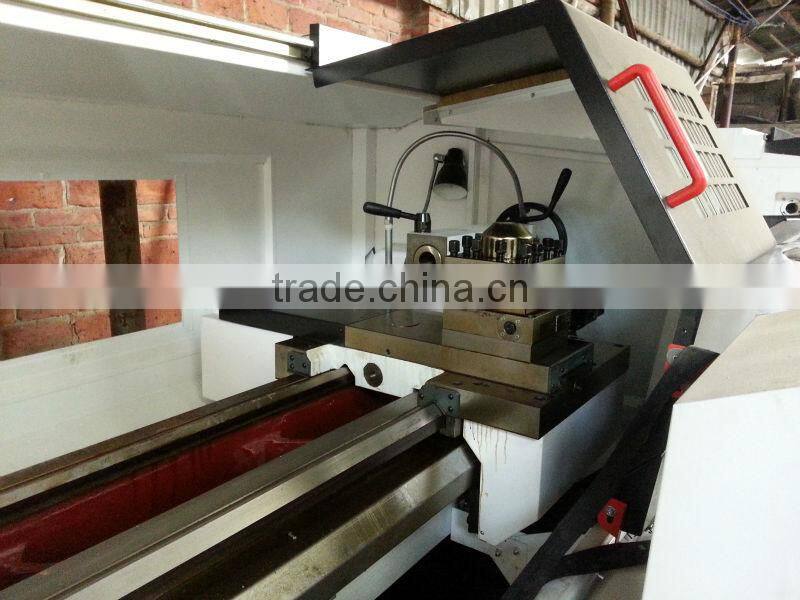

5.Saddle and skateboard rail joint surface using "laminating" process moving parts can be realized micro feed to prevent crawling.

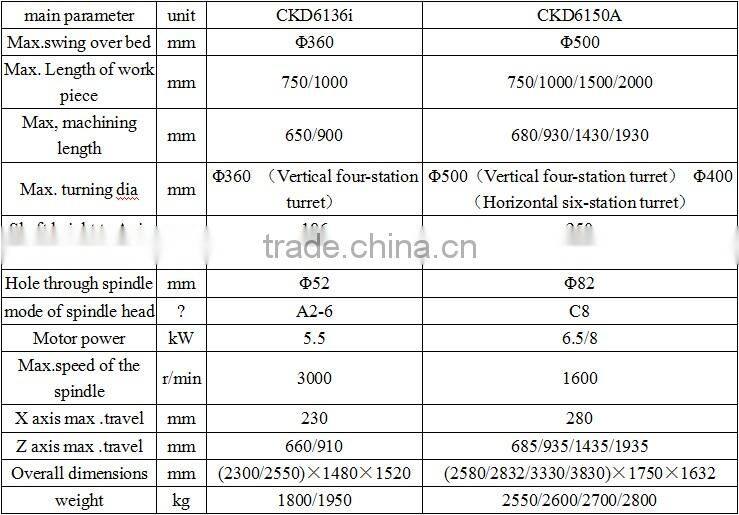

Technical Parameter
