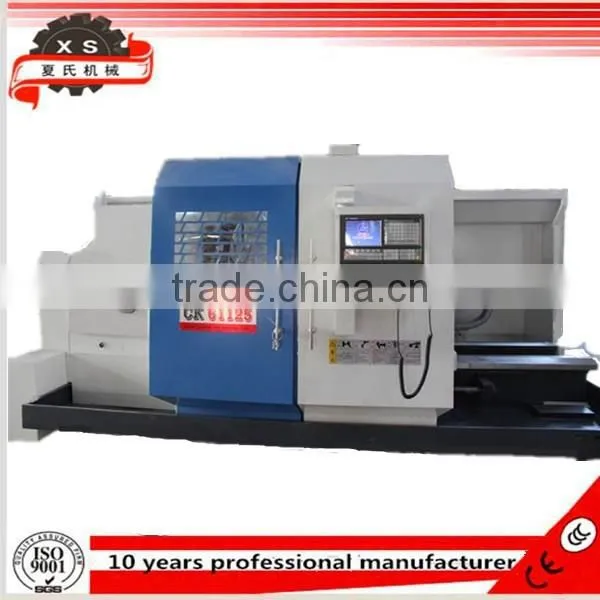

CK61125/2000 horizontal heavy duty CNC lathe machine
Features
1.Horizontal machine structure CK61125 cnc lathe automatic metal heavy duty lathe machine
2. Spindle bore dia 130mm
3.Supersonic quenching of lead rail
4.Saddle and slide board joint surface using “plastic coated”processing.
5.Serving system adopts servo motor driven
6.Precision ball screws,precision composite bearing structure with high rigidity
7. Ball screw,rail joint surface with automatic forced lubrication
8.Overrall structure lathe bed,more stable.
Technical parameter
Term |
Specification |
CK61125 |
|
|
Max. swing dia. over bed (mm) |
1250 |
|
Main specs |
Max. swing dia. over slide (mm) |
880 |
|
|
Max. length of workpiece (mm) |
1000, 1500, 2000,3000 |
|
|
Form of main drive |
three step mechanical speed, Stepless Frequency Conversion Timing |
|
|
Step of spindle speed |
Stepless |
|
|
Spindle speed (r/min) |
18-600 |
|
Main drive style |
Structure of spindle nose |
C11 |
|
|
Spindle bore (mm) |
105 |
|
|
Taper of spindle bore |
120, 1:20 |
|
|
Model of main motor |
YVP180L– 6- 15KW |
|
|
Max traverse of toolpost (mm) |
X-direction:650; Z-direction:1200,1650, 3100 |
|
|
Diameter of ball screw× thread pitch (mm) |
X-direction:3205; Z-direction:6310 |
|
|
Rapid traverse feed (mm/min) |
X-direction:4000; Z-direction: 5000 |
|
|
Positioning accuracy (mm) |
X-direction: 0.025; Z-direction: 0.03 |
|
|
Repeatability accuracy (mm) |
X-direction: 0.01; Z-direction: 0.015 |
|
Feed |
Machining accuracy for workpiece |
IT6-IT7 |
|
|
Roughness of the workpiece surface |
Ra1.6 |
|
|
Diameter of tailstock quill (mm) |
100 |
|
Tailstock |
Travel of tailstock quill (mm) |
250 |
|
|
Taper of tailstock quill |
Mohs 6# |
|
|
Standard configuration |
four Electrical toolposts |
|
Toolpost |
Special configuration |
Six(eight) Electrical toolposts |
|
|
Repeatability accuracy (mm) |
0.008 |
|
|
Section of turning tool (mm) |
35×35 |
|
|
CNC system |
Standard |
GSK980TDb |
|
Special |
KND, FANUC, Siemens, |
|
Control system |
Servo drive motor |
X-direction: 130SJT-M150B; Z-direction: 175SJT-M220B |
|
Dimension (L*W*H) (mm) |
3750 (4750) (5500)×1920×1800 |
||
Net weight |
5000, 6000, 7000 |
||

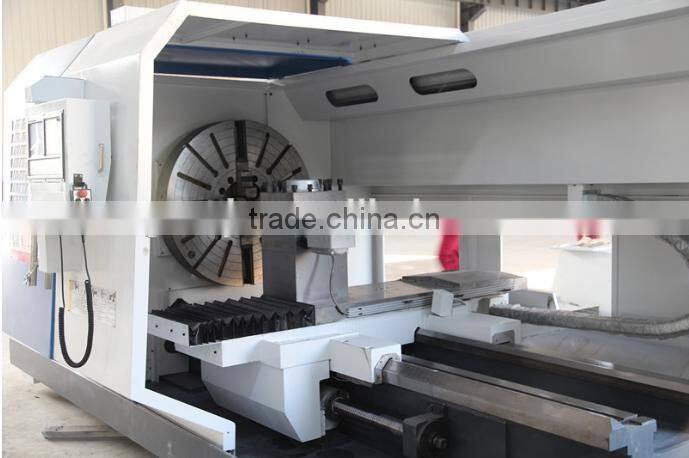

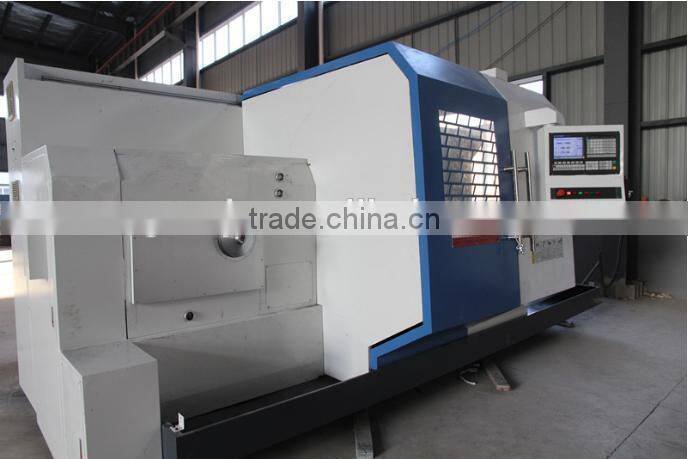

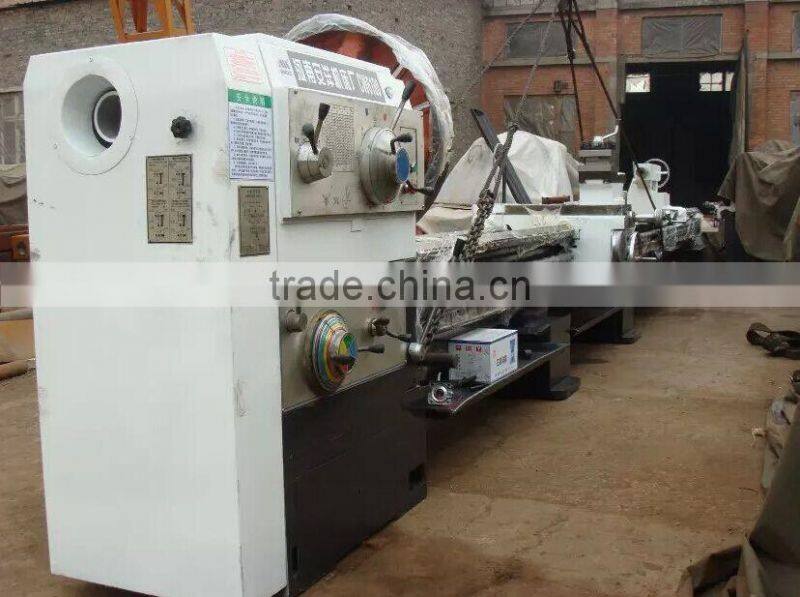

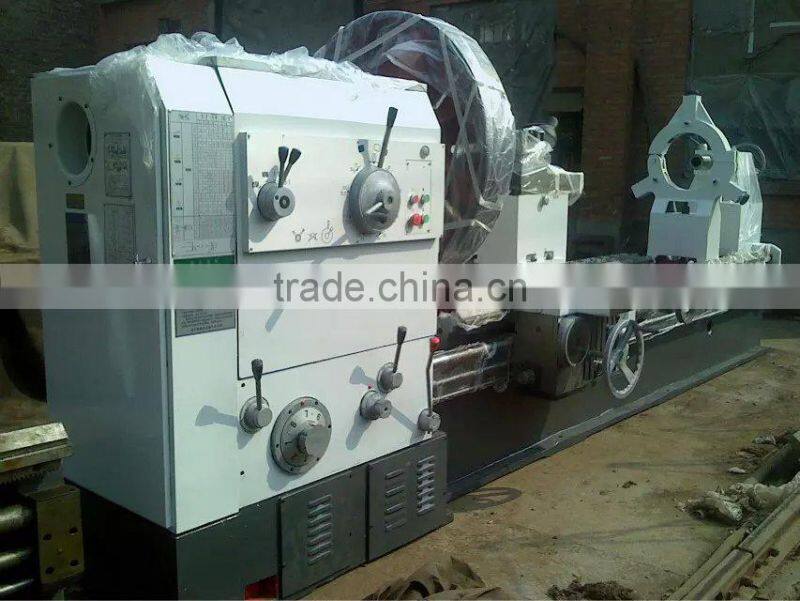

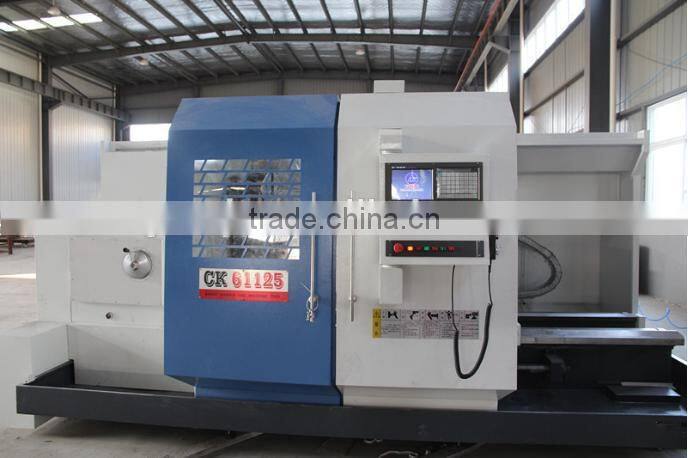

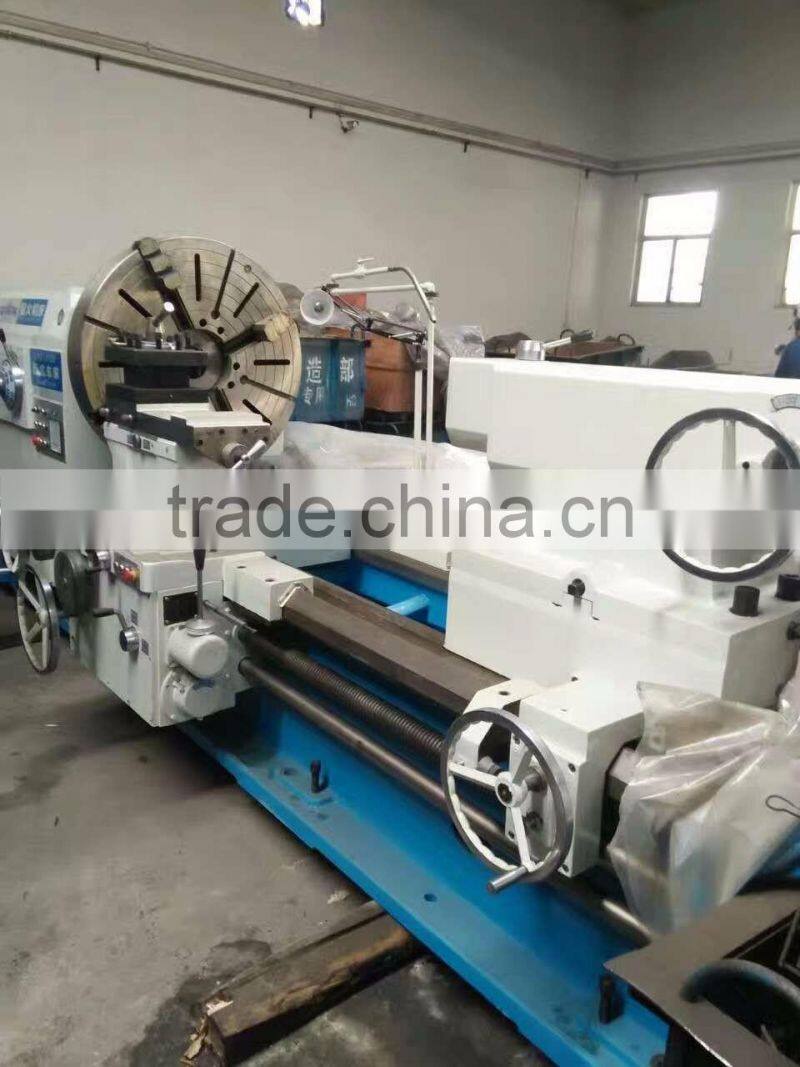

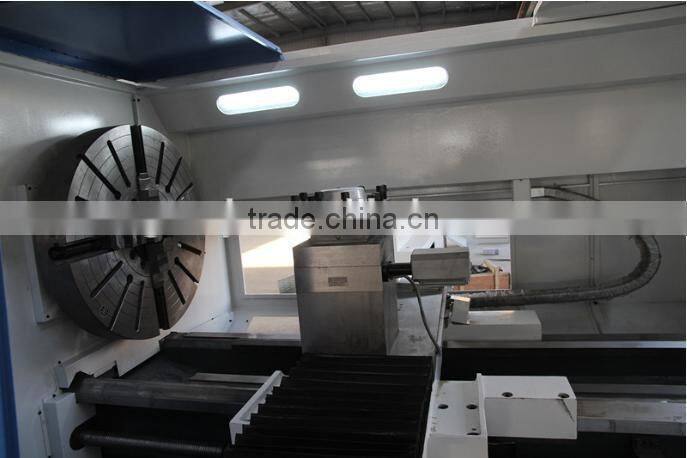

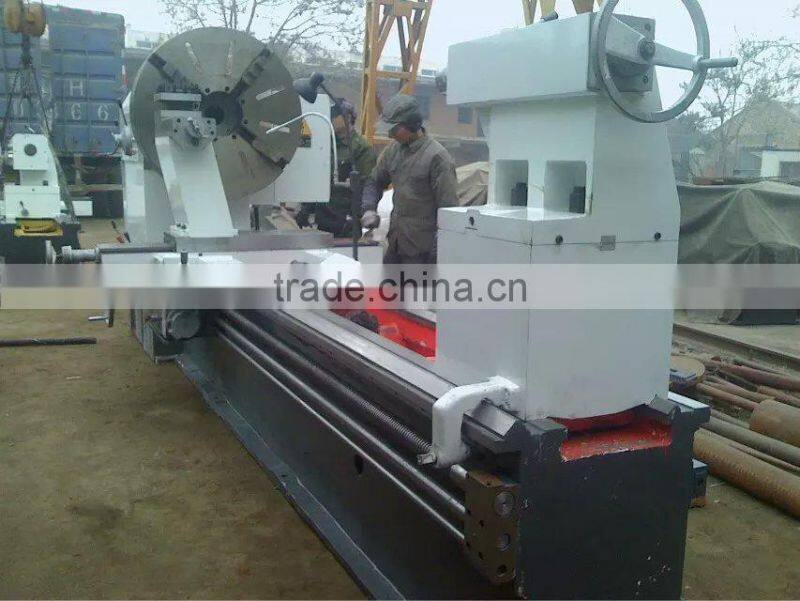

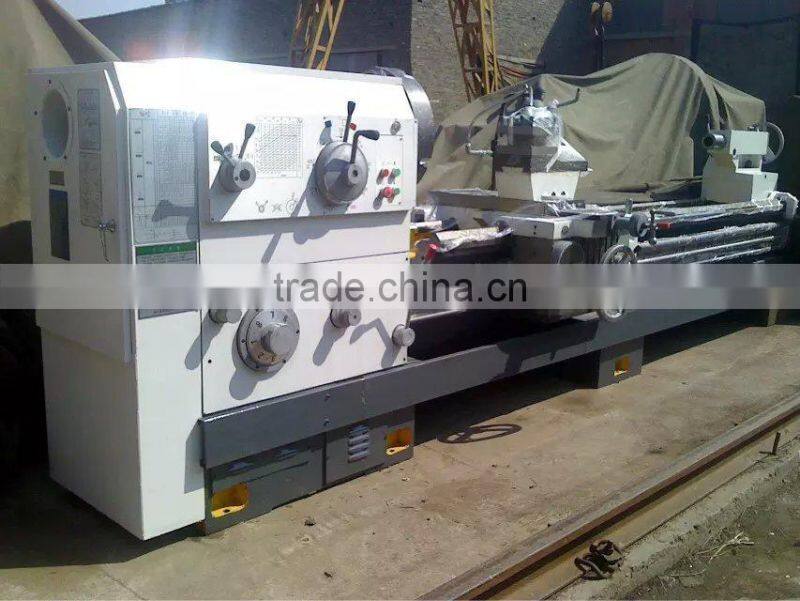

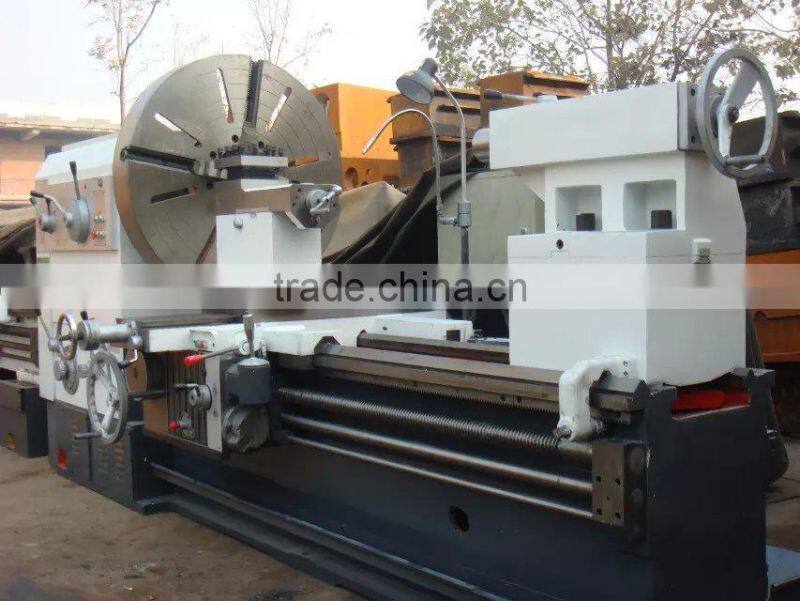

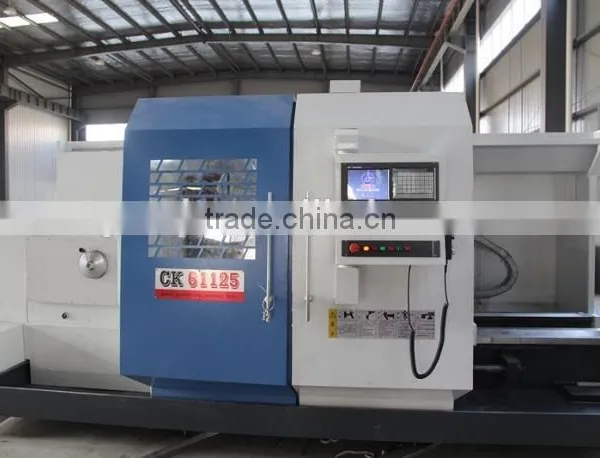

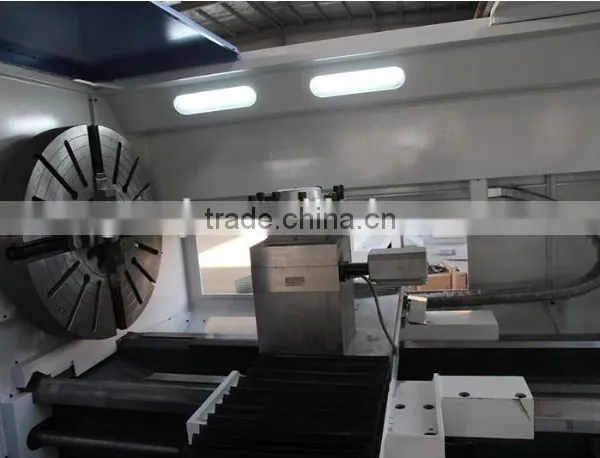

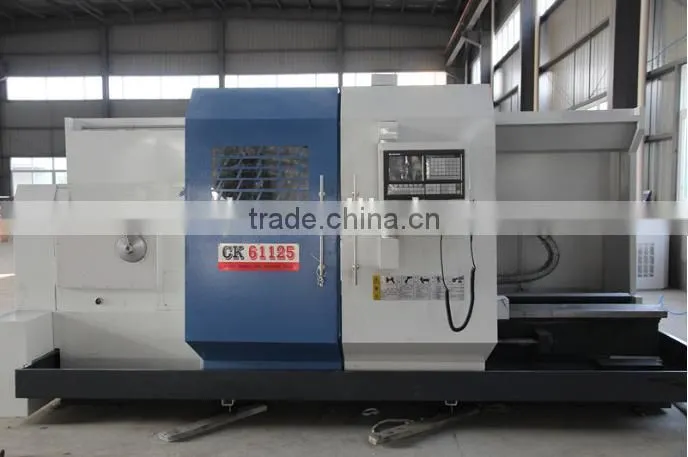

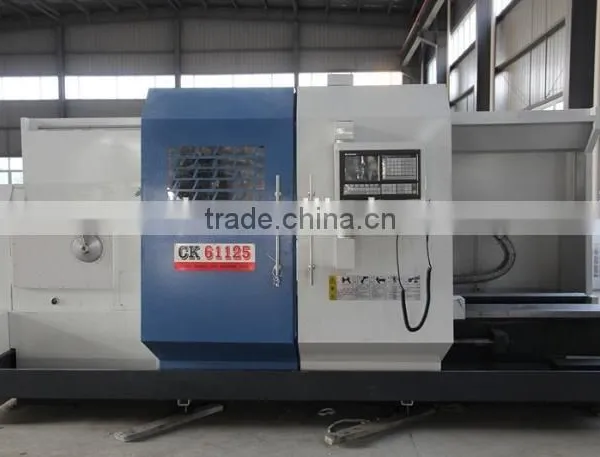

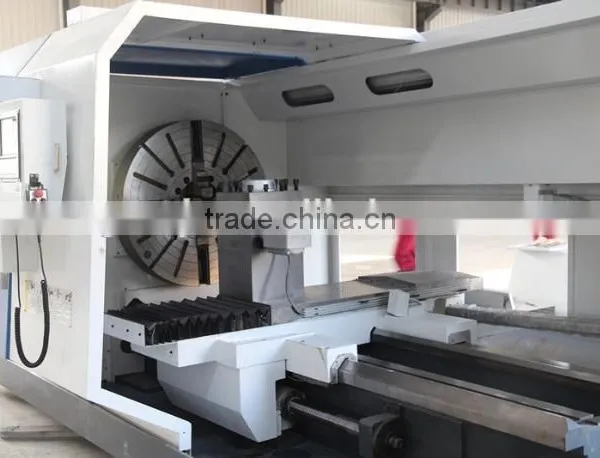

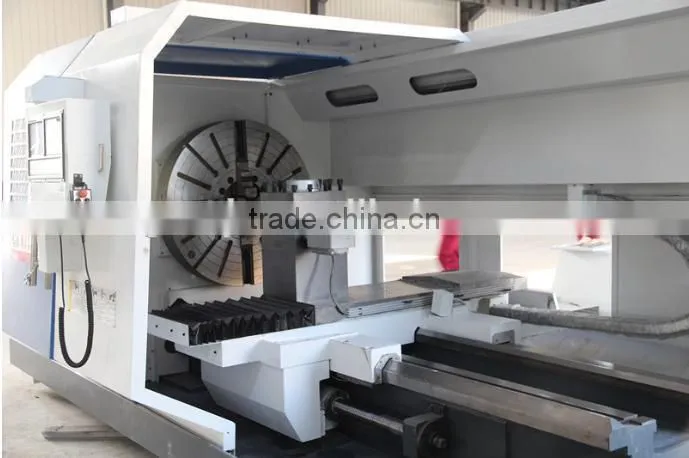

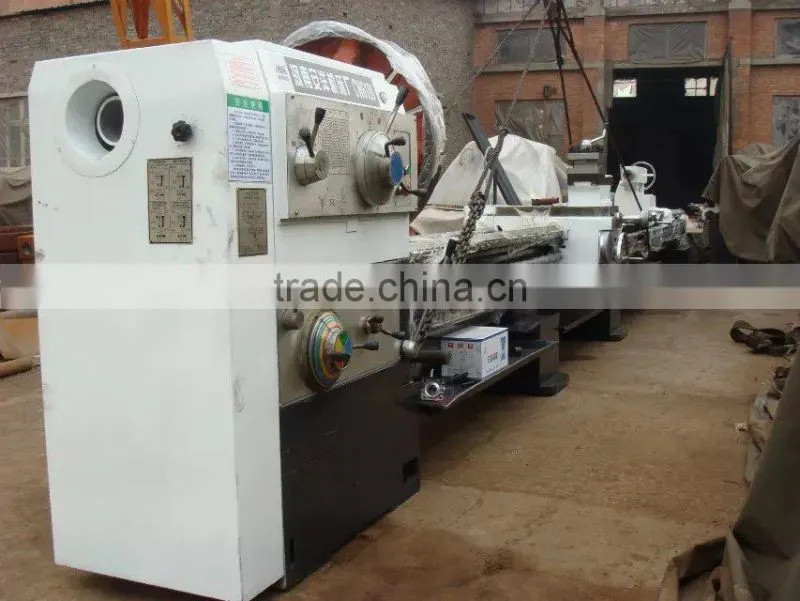

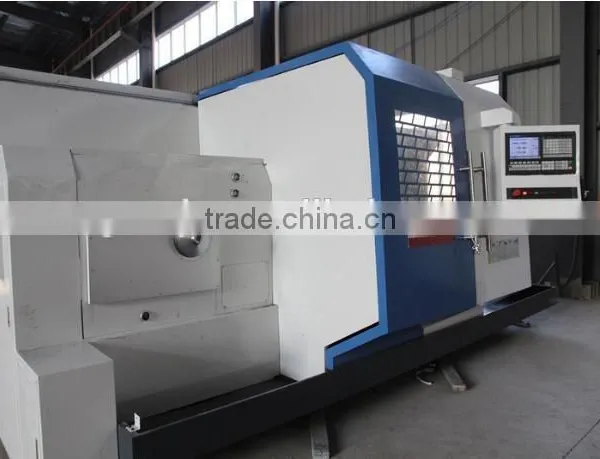

Detailed pictures for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
