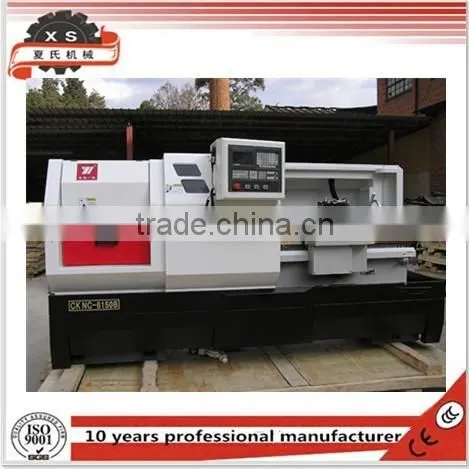

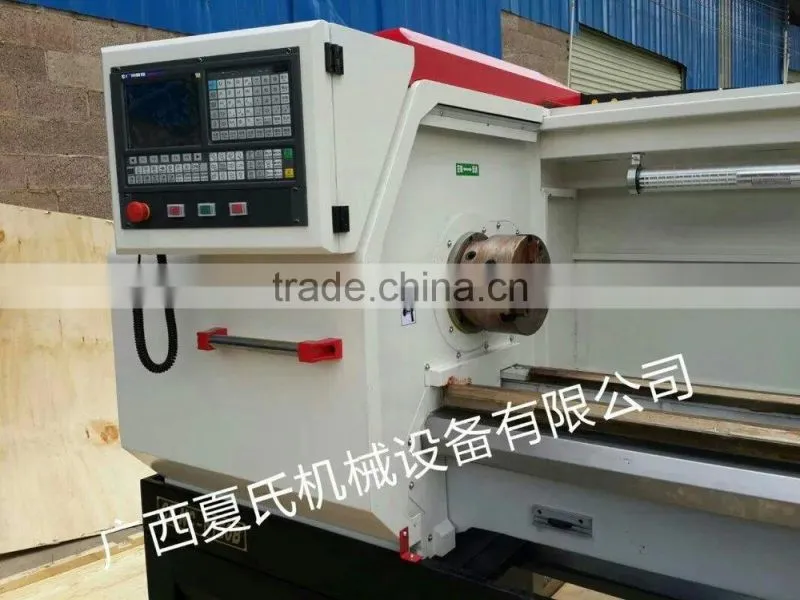

CKNC-6150B cnc lathe machine tool price
Specification
Work range |
Max.swing over bed |
Φ500mm |
Max.swing over slide |
Φ290mm |
|
Max.distance between centers |
1000mm,1500 mm,2000 mm split stand |
|
X axis (max.travel) |
295mm |
|
guideway width |
390mm |
|
X/Z ball screw |
2505/3210 |
|
|
Spindle |
model |
D-8 |
spindle taper/spindle hole |
Metric No.90(1:20)/Φ82mm |
|
|
spindle speed |
45-180rpm; 185-750 rpm,600-1600 rpm |
|
manual 24 steps 9-1600rpm | ||
manual chuck size |
three jaw chuck Φ250mm |
|
Tool post |
type/specs. |
four position or six position tool post/25mm×25mm |
Tailstock |
tail sleeve dia./ travel |
Φ75mm/150mm |
Taper type of tailstock quill |
M5 |
|
Motor |
Main motor power |
7.5KW |
X/Z axis motor power |
7.7NM |
|
Machine weight/size |
2800KG/3000mm×1700mm×1800mm |
|
Standard configuration:

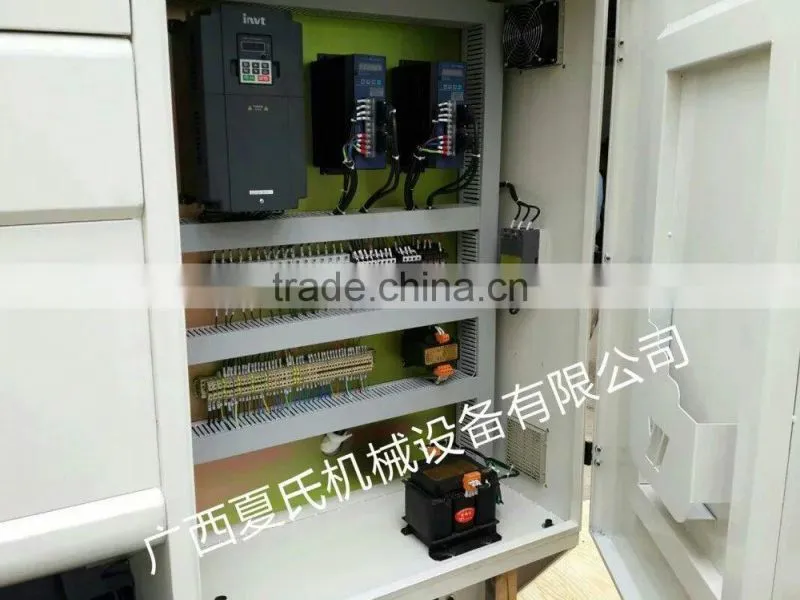

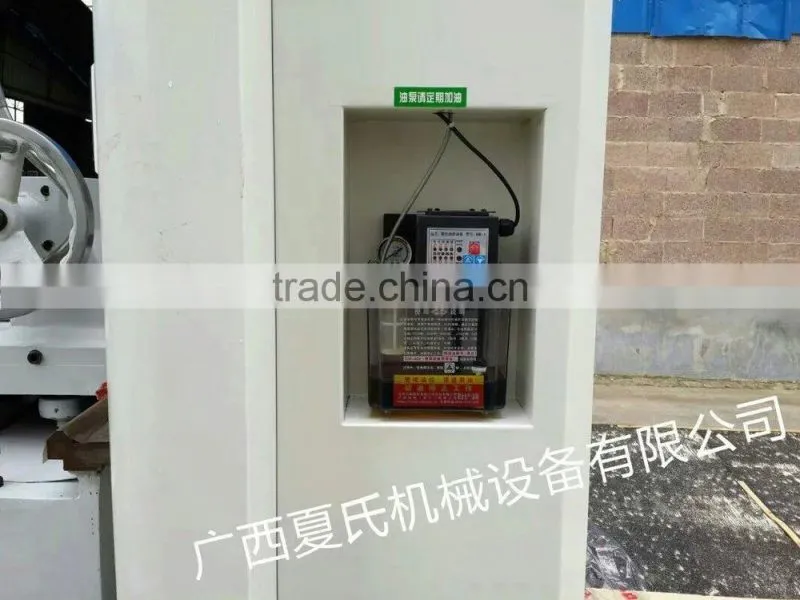

Guangzhou CNC GSK-980TDb CNC system, 7.5kW ordinary main motor, 7.5kW domestic inverter, diameter of 250 manual chuck with three jaws, manual tailstock, four position electric turret, automatic lubricating oil pump, electric cooling system, lighting system, closed door cover (1 meter machine), a semi closed shield (1.5 meters wide and 2 meters machine) Delixi Electric control element, a full set of technical data and randomly attached to a standard parts and tools.
Standard accessories (packing list):
Diameter of 250mm manual chuck with three jaws, instructions and certificate, fixed top, double headed wrench set, six angle wrench set, screwdriver, cushion iron.
Special configuration can be selected separately:
CNC system: Beijing KND, Japan FANUC, MITSUBISHI, Japan, Germany, SIEMENS, etc..
11kw main motor and 11kw inverter, 6163 four position electric turret, a six position electric turret knife row, diameter 320mm chuck with three jaws, diameter 400mm four jaw chuck, center frame, with the frame.

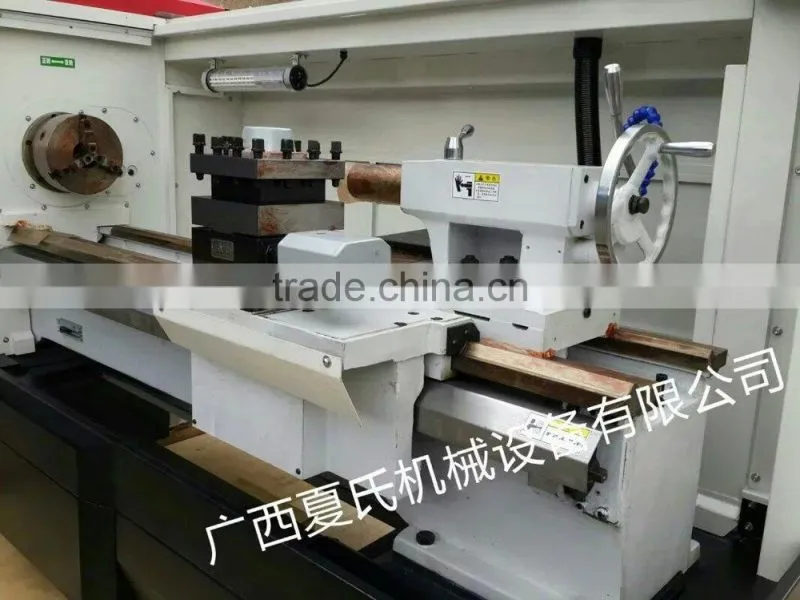

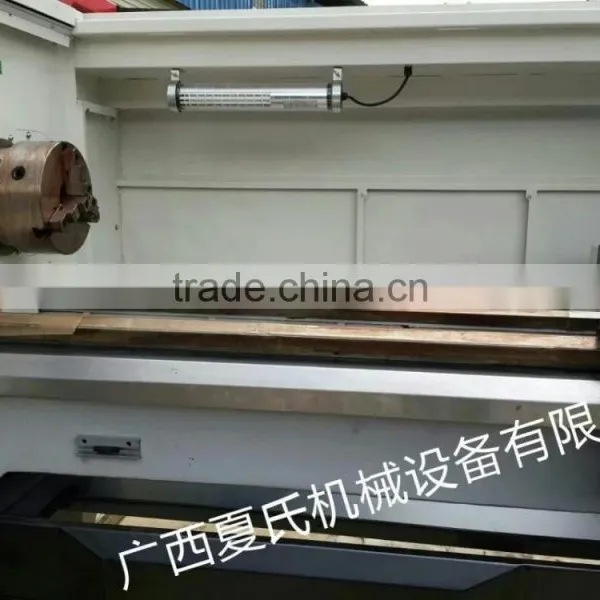

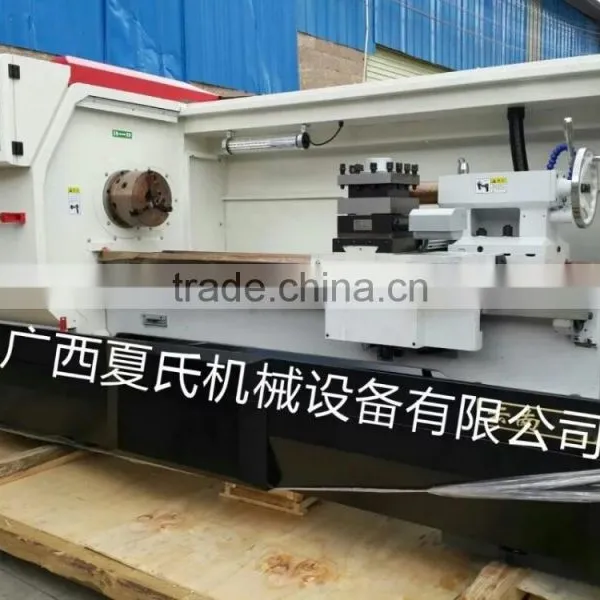

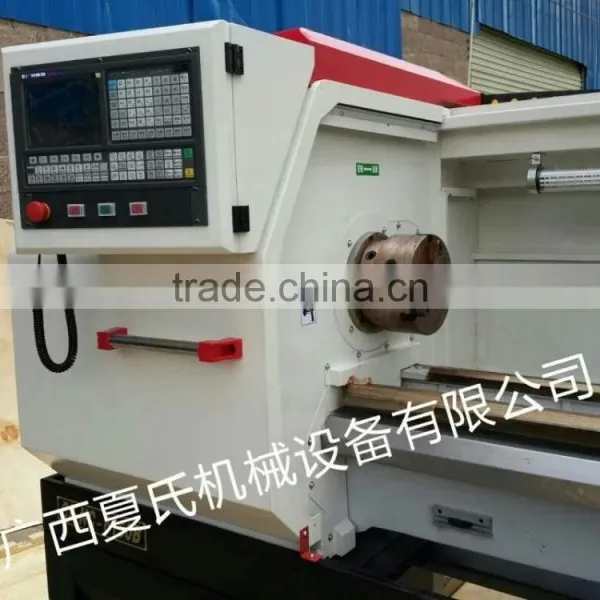

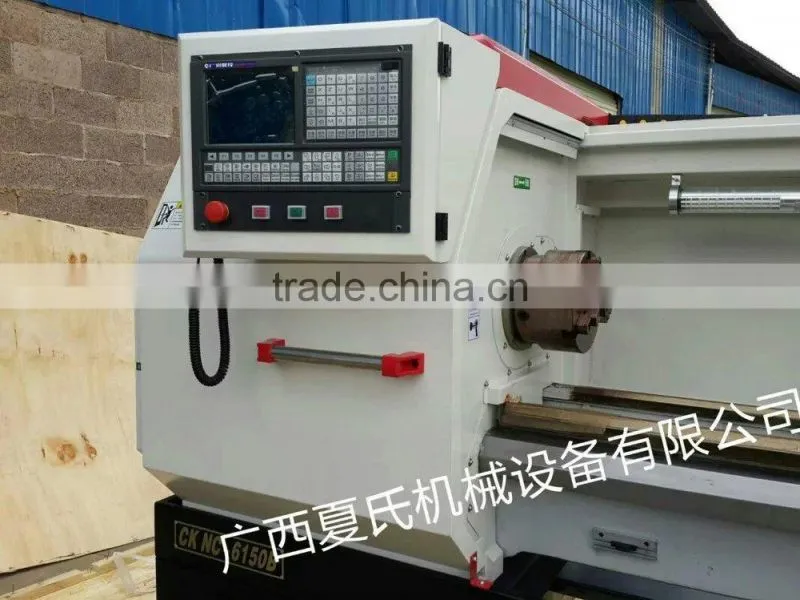

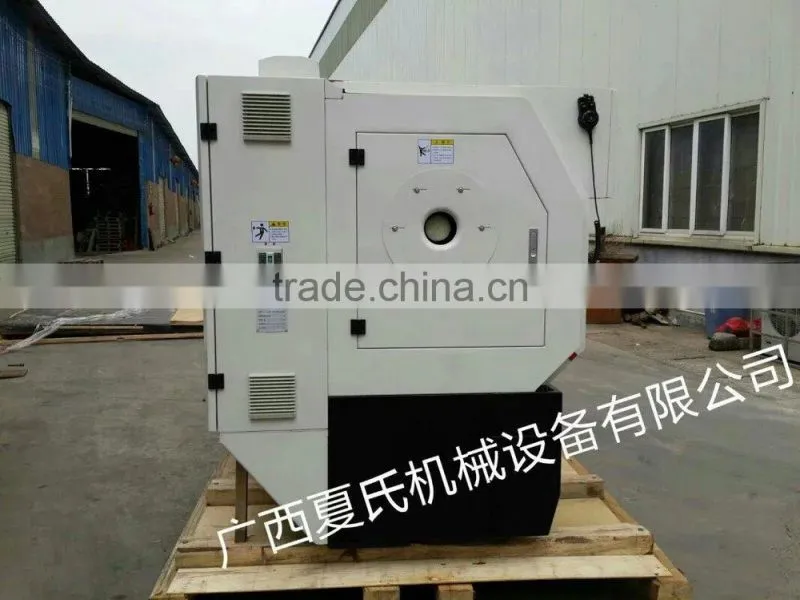

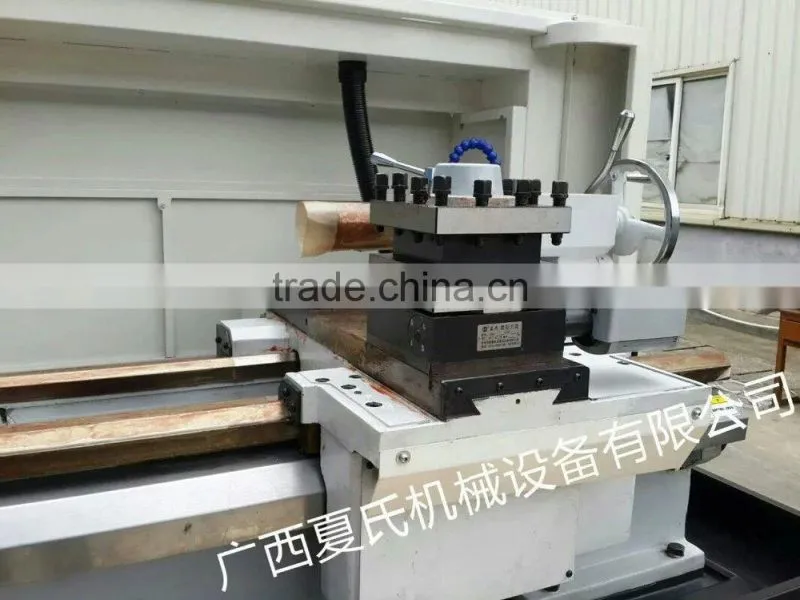

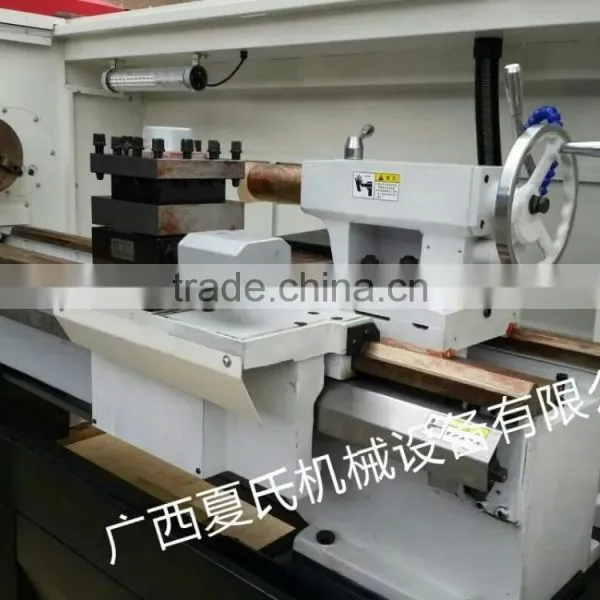

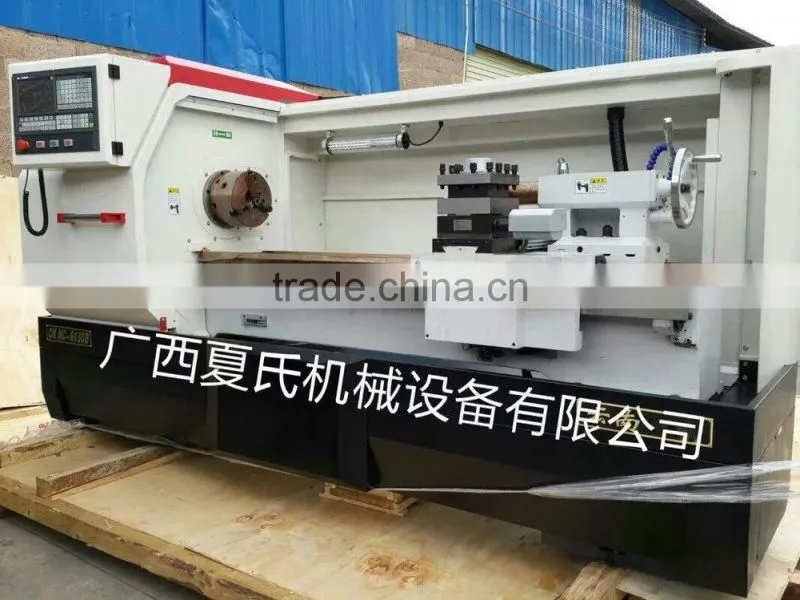

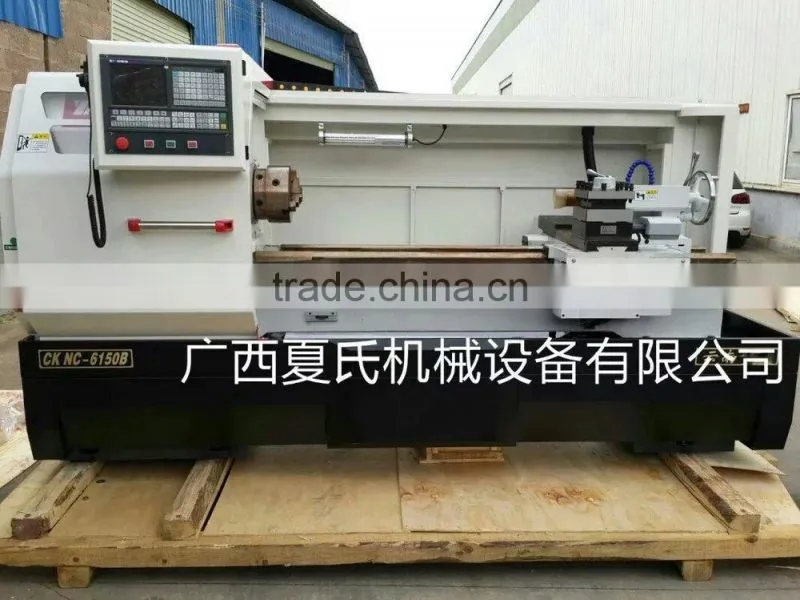

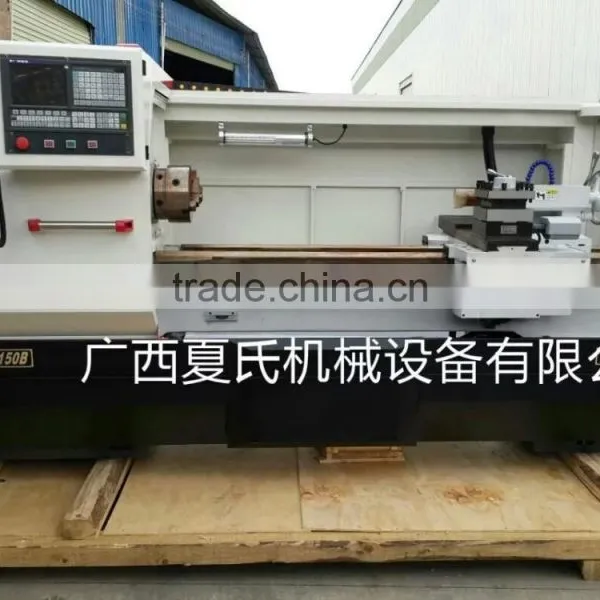

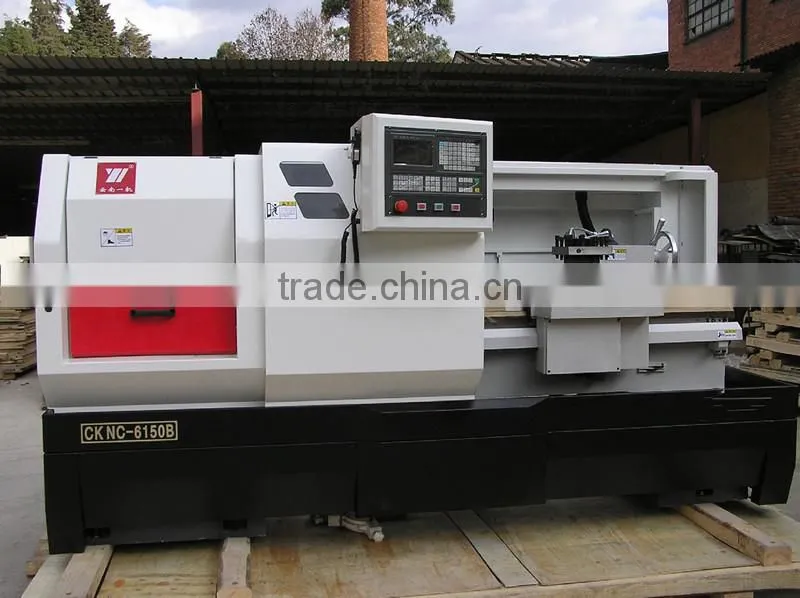

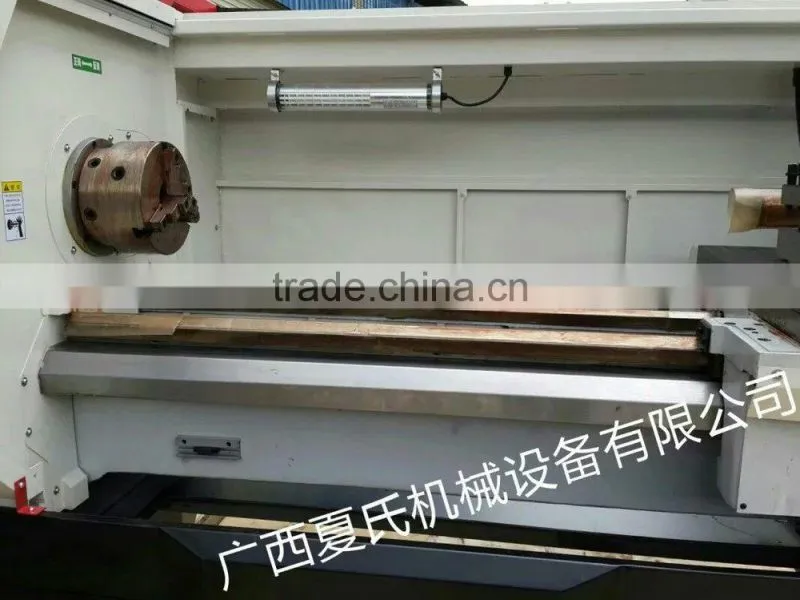

Picture for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
