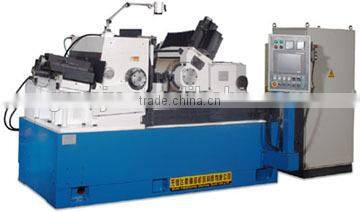

Help CenterCNC Grinding Machine, High Precision Centerless Grinding Machine MK10200A
Related Products
-
High Presicion Centerless Grinding Machine MK1060ANegotiableMOQ: 1 Set -
CNC Centerless Grinding Machine MK10100A High PrecisionNegotiableMOQ: 1 Set
-
MK10200A High Precision Centerless Grinding Machine Price With Low PriceUS$ 5,000 - 50,000MOQ: 1 Set
-
Dependable Performance Surface Grinding Machine ,grinder YM-7163 With Low PriceUS$ 2,000 - 2,500MOQ: 1 Set
-
Hydraulic Surface Grinder Machine for Sale MY3060NegotiableMOQ: 1 Set
Features
The diameter of grinding wheel is 600mm, with strong grinding force.
The wide grinding wheel can increase the grinding allowance in a single pass, and decrease
repeating, to raise efficiency.
The grinder designed for fixed grinding wheel and movable regulating wheel.
The spindles of grinding wheel adopted double support & muti-plate ball support dynamic oil
film bearing.
The spindles of regulating wheel adopted double row cylindrical roller bearing, with double
supported wheel.
Lubrication of grinding wheel spindle with thermostat.
The regulating wheel feed slide is equipped high rigidity linear guideway and servomotor that
drives ball screws.
AC frequency converter is used for regulating wheel stepless speed control, as well as reverse
towing prevent function.
Gear motor driven the ball screw & stepless speed regulation are adopted on regulating wheel & grinding wheel dresser.
The coolant system is equipped with magnetic coolant separator.10.4” touch panel, automatic
plunge-cut grinding, the load, speed, time and step level adjustable, PLC or CNC system
optional.
The design of machine is based on modularize method, with good looking shape. Its configuration can be select
Technical parameter
Thru-feed 1)Grinding diameter |
10-200mm |
2)Grinding length |
300mm |
Plunge feed 1)Grinding diameter |
10-200mm |
2)Grinding length |
390mm |
Grinding wheel specifications |
P600*400*305mm |
Regulating wheel specifications |
P350*400*203mm |
Grinding wheel speed |
1100r/min |
Regulating wheel speed(stepless) |
10-300r/min |
Swiveling angle of regulating wheel |
|
1)Invertical plane |
-2°~ 5° |
2)In horizontal plane |
-1°~ 3° |
Regulating wheel min. feed amount |
0.001mm |
Grinding wheel dresser min. feed amount |
0.001mm |
Height from centerline of gri.wheel & reg.wheel to workest |
200mm |
Cooling Water |
200L/min |
Toal power of machine |
|
1)Grinding wheel motor |
30kw |
2)Regulating wheel motor |
3kw |
3) Pump Motor |
0.45kw |
4)Lubricant Pump Motor |
0.09kw |
5) Hydraulic Pump Motor |
0.75kw |
6)Magnetic coolant separator Motor |
0.18kw |
Overall dimensions |
3300*1780*1900mm |
Machine weight |
about 9000kg |
Machining accuracy |
|
1)Roundness |
0.001mm |
2)Cylindricity |
0.0018mm |
3)Surface Roughness |
Ra0.16um |
Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
