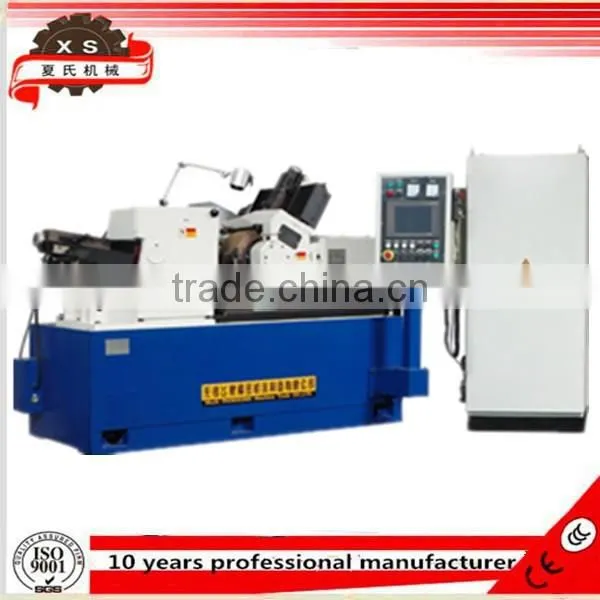

Help CenterHigh Presicion Centerless Grinding Machine MK1060A
Related Products
-
CNC Centerless Grinding Machine MK10100A High PrecisionNegotiableMOQ: 1 Set -
MK10200A High Precision Centerless Grinding Machine Price With Low PriceUS$ 5,000 - 50,000MOQ: 1 Set
-
Dependable Performance Surface Grinding Machine ,grinder YM-7163 With Low PriceUS$ 2,000 - 2,500MOQ: 1 Set
-
Hydraulic Surface Grinder Machine for Sale MY3060NegotiableMOQ: 1 Set
-
High Precision Surface Grinding Machine,Surface Grinder YH-006 With Low PriceUS$ 2,000 - 2,500MOQ: 1 Set
Salient features
The grinding wheel designed for cantilever type, while grinding bracket fixed.
The spindle of grinding wheel adopted muti-plate long bearing bushed static-hydrodynamical oil film bearing.
The frame of regulating wheel moves for adjustment and workpiece fixed in order to equipped different feed
devices.
The spindle designed for double bracing type, as well as double cylindrical roll bearings, which with better rigidity, and higher precise grinding.
Lubrication thermostat equipped in grinding wheel spindle.
The regulating wheel feed slide is equipped double “V” roller guideway and and servomotor that drives ball screws.
AC frequency converter is used for regulating wheel stepless speed control, as well as reverse towing prevent function.
Gear motor driven the ball screw &double “V” roller guideway are adopted on regulating wheel & grinding wheel dresser.
The coolant system is equipped with magnetic coolant separator.
10.4” touch panel, automatic plunge-cut grinding, the load, speed, time and step level adjustable
, PLC or CNC system optional.
The design of machine is based on modularize method, with good looking shape. Its
configuration can be selecte
Technical parameter
|
Thru-feed
|
1)Grinding diameter |
2-60mm |
2)Grinding length |
200mm |
|
Plunge feed |
1)Grinding diameter |
2-60mm |
2)Grinding length |
190mm |
|
Grinding wheel specifications |
P500*200*305mm |
|
Regulating wheel specifications |
P350*200*203mm |
|
Grinding wheel speed |
1338r/min |
|
Regulating wheel speed(stepless) |
10-200r/min |
|
Swiveling angle of regulating wheel |
|
|
1)Invertical plane |
-2°~ 5° |
|
2)In horizontal plane |
-1°~ 3° |
|
Regulating wheel min. feed amount |
0.001mm |
|
Grinding wheel dresser min. feed amount |
0.01mm |
|
Height from centerline of gri.wheel & reg.wheel to workest |
200mm |
|
Cooling Water |
200L/min |
|
Toal power of machine |
|
|
1)Grinding wheel motor |
18.5kw |
|
2)Regulating wheel motor |
3kw |
|
3) Pump Motor |
0.25kw |
|
4)Lubricant Pump Motor |
0.14kw |
|
5)Magnetic coolant separator Motor |
0.18kw |
|
Overall dimensions |
2500*1610*1600mm |
|
Machine weight |
about 5000kg |
|
Machining accuracy |
|
|
1)Roundness |
0.001mm |
|
2)Cylindricity |
0.0018mm |
|
3)Surface Roughness |
Ra0.16um |
|
Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
