MK10200A high precision centerless grinding machine price with low price
Salient features:
The diameter of grinding wheel is 600mm, with strong grinding force.
The wide grinding wheel can increase the grinding allowance in a single pass, and decrease
repeating, to raise efficiency.
The grinder designed for fixed grinding wheel and movable regulating wheel.
The spindles of grinding wheel adopted double support & muti-plate ball support dynamic oil
film bearing.
The spindles of regulating wheel adopted double row cylindrical roller bearing, with double
supported wheel.
Lubrication of grinding wheel spindle with thermostat.
The regulating wheel feed slide is equipped high rigidity linear guideway and servomotor that
drives ball screws.
AC frequency converter is used for regulating wheel stepless speed control, as well as reverse
towing prevent function.
Gear motor driven the ball screw & stepless speed regulation are adopted on regulating wheel & grinding wheel dresser.
The coolant system is equipped with magnetic coolant separator.10.4” touch panel, automatic
plunge-cut grinding, the load, speed, time and step level adjustable, PLC or CNC system
optional.
The design of machine is based on modularize method, with good looking shape. Its configuration can be select
Technical parameter
Thru-feed 1)Grinding diameter |
10-200mm |
2)Grinding length |
300mm |
Plunge feed 1)Grinding diameter |
10-200mm |
2)Grinding length |
390mm |
Grinding wheel specifications |
P600*400*305mm |
Regulating wheel specifications |
P350*400*203mm |
Grinding wheel speed |
1100r/min |
Regulating wheel speed(stepless) |
10-300r/min |
Swiveling angle of regulating wheel |
|
1)Invertical plane |
-2°~ 5° |
2)In horizontal plane |
-1°~ 3° |
Regulating wheel min. feed amount |
0.001mm |
Grinding wheel dresser min. feed amount |
0.001mm |
Height from centerline of gri.wheel & reg.wheel to workest |
200mm |
Cooling Water |
200L/min |
Toal power of machine |
|
1)Grinding wheel motor |
30kw |
2)Regulating wheel motor |
3kw |
3) Pump Motor |
0.45kw |
4)Lubricant Pump Motor |
0.09kw |
5) Hydraulic Pump Motor |
0.75kw |
6)Magnetic coolant separator Motor |
0.18kw |
Overall dimensions |
3300*1780*1900mm |
Machine weight |
about 9000kg |
Machining accuracy |
|
1)Roundness |
0.001mm |
2)Cylindricity |
0.0018mm |
3)Surface Roughness |
Ra0.16um |

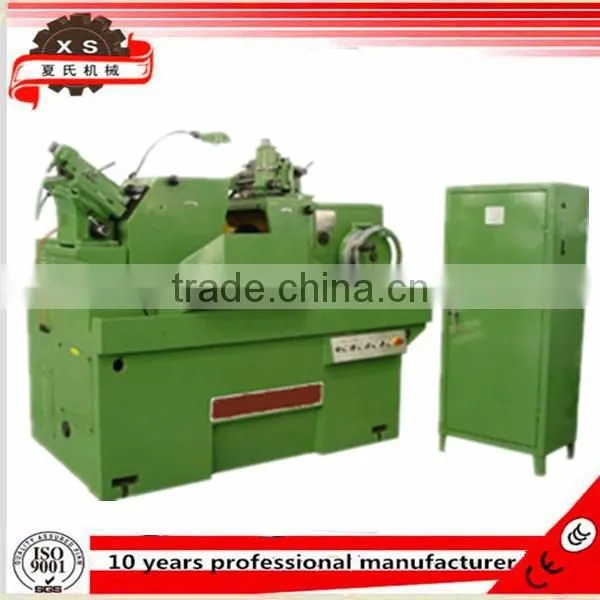

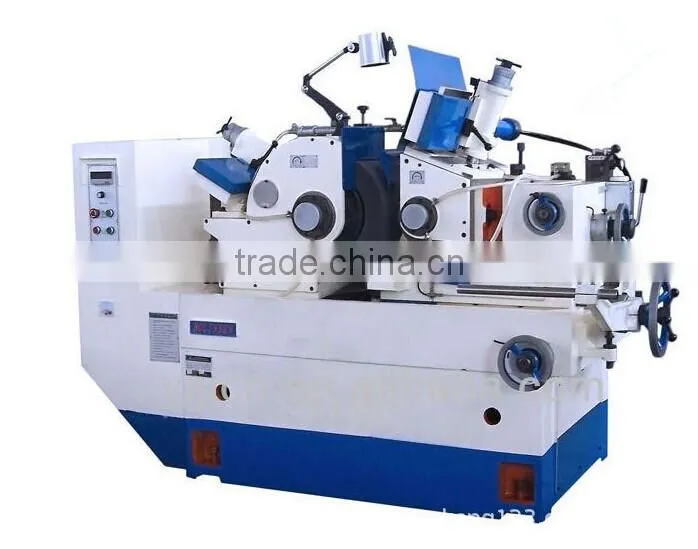

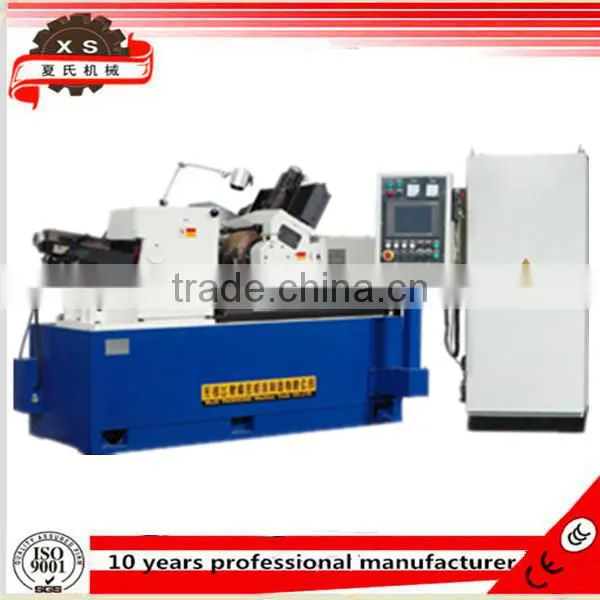

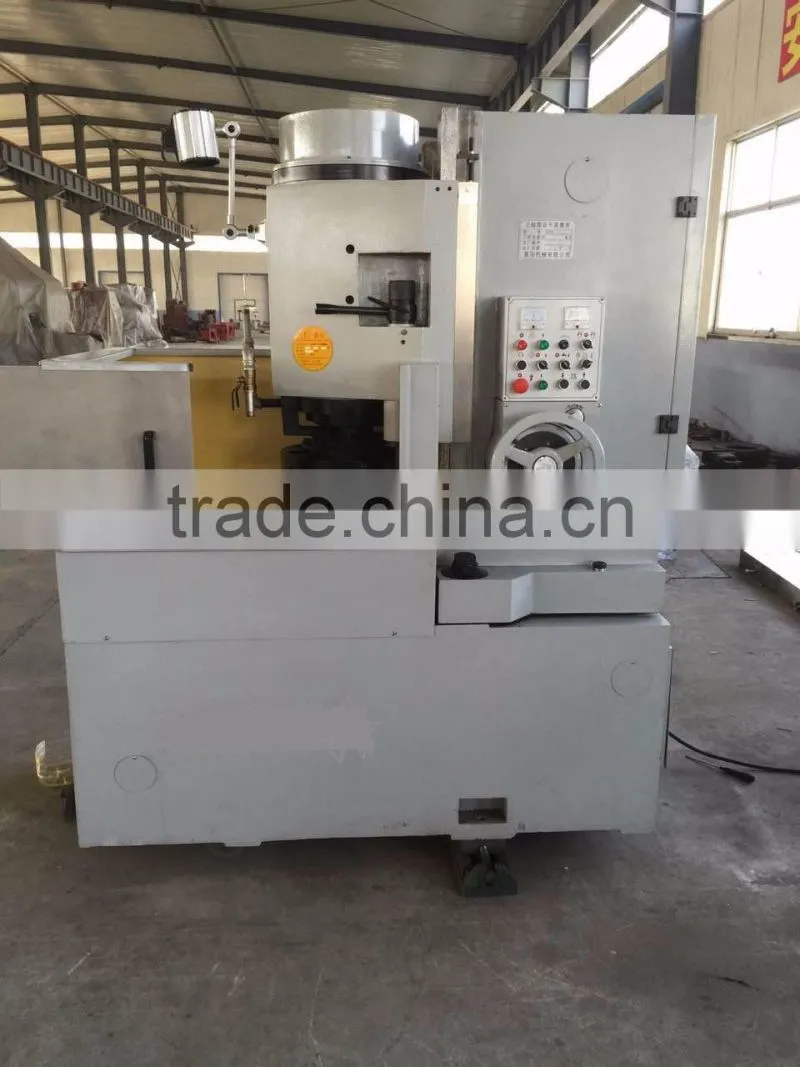

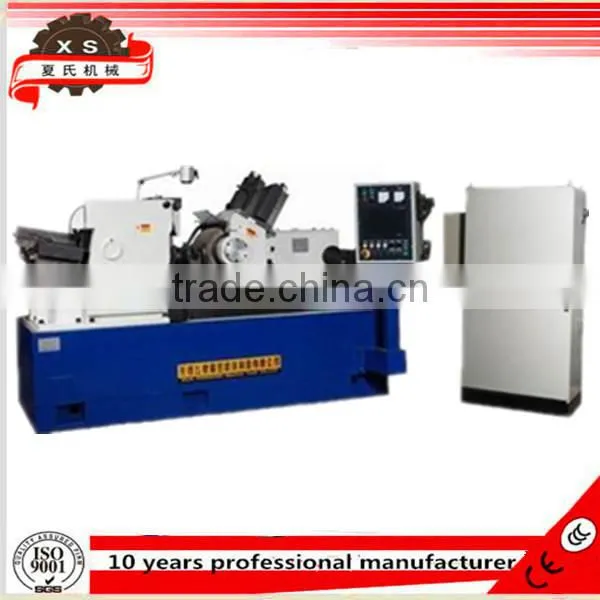

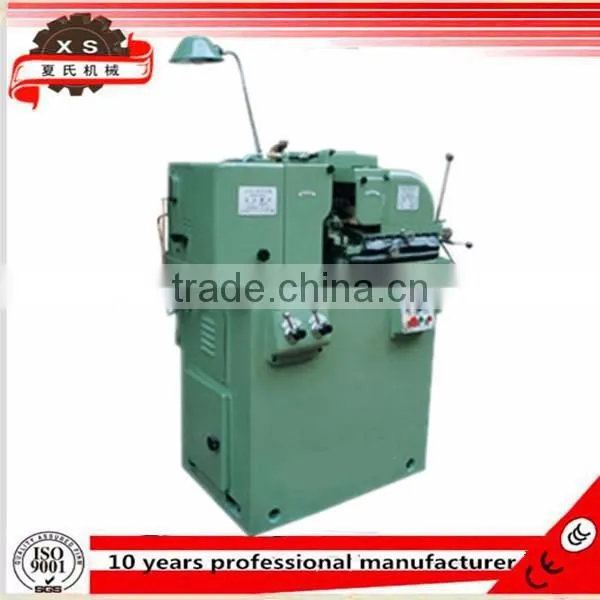

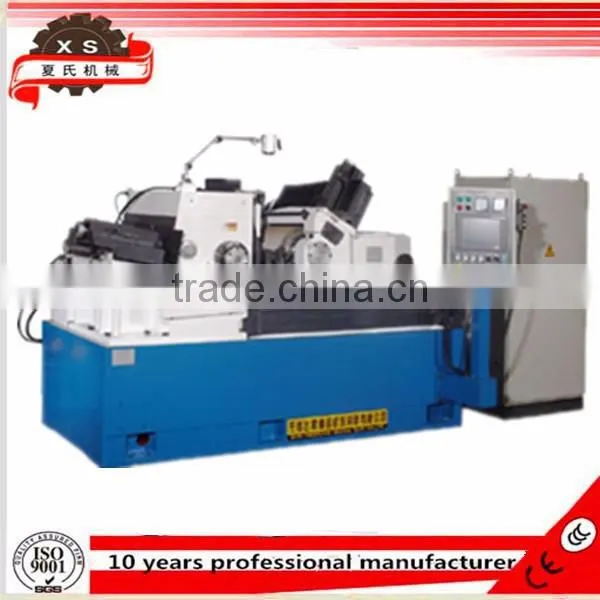

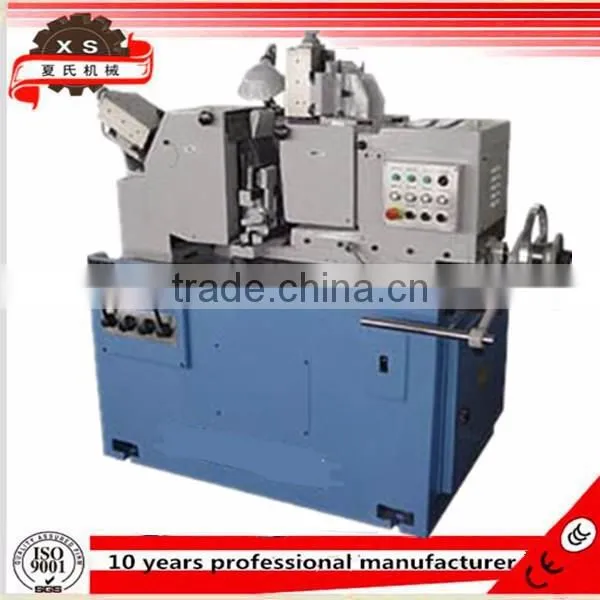

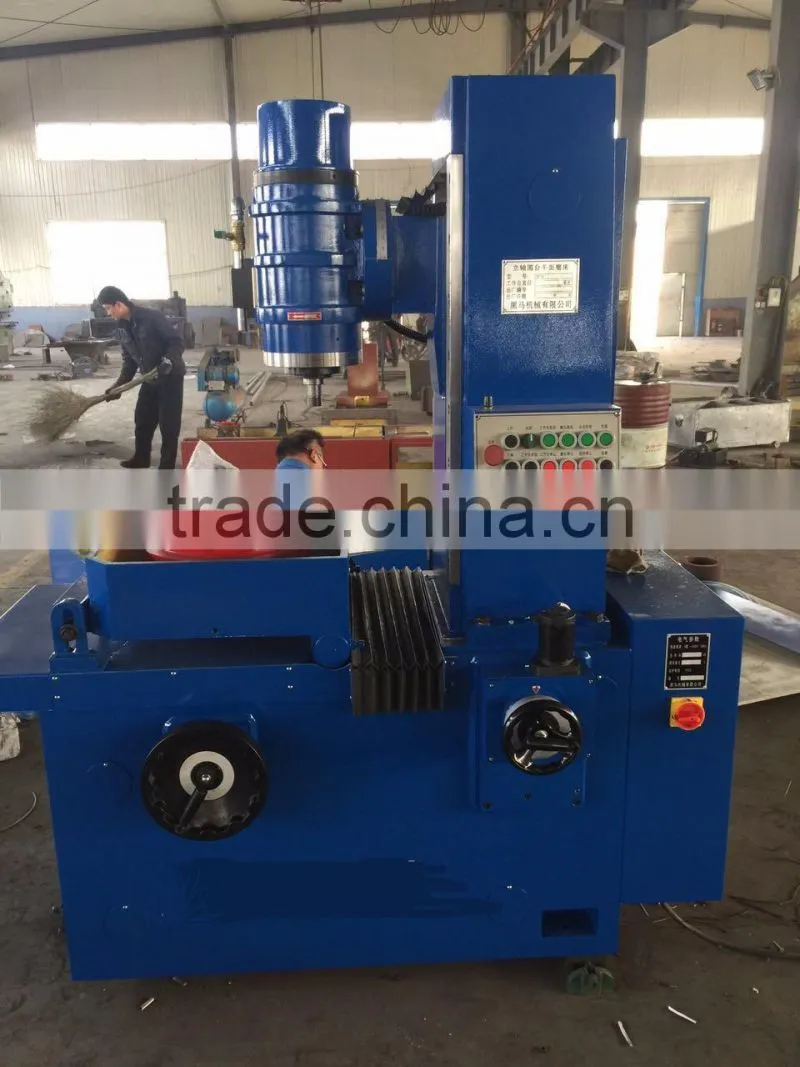

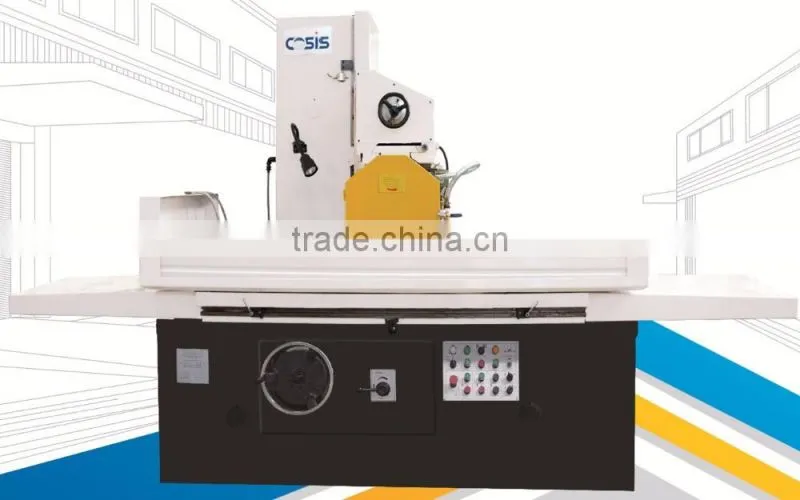

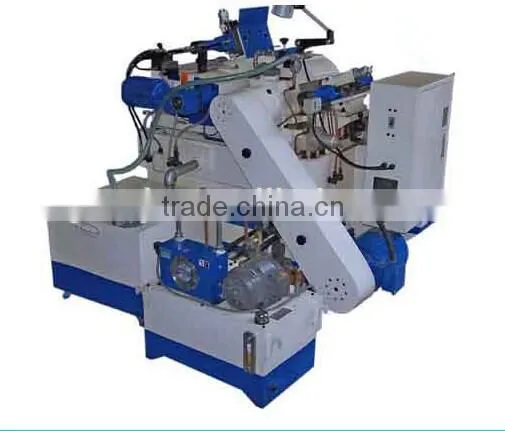

Detailed pictures for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
