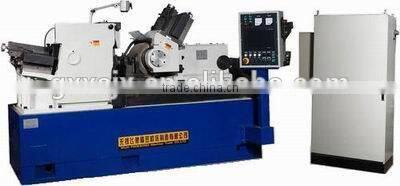

CNC Centerless Grinding Machine MK10100A High Precision

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Cylindrical Grinding Machine
CNC or Not	Normal	Max. Grinding Diameter	5-100mm
Model Number	MK10100A	Voltage	380v
Power(W)	22kw	Dimension(LWH)	320017851800mm
Weight	7500kg	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Main Application

The grinder is mainly used for through-feed grinding of cylindrical surface and

ring-type parts, as well as for plunge-cut grinding of various stepped, cones by

manual operation .

Technical parameter

Thru-feed	1)Grinding diameter	5-100mm
	2)Grinding length	200mm
Plunge-feed	1)Grinding diameter	5-100mm
	2)Grinding length	190mm
Grinding wheel specifications		P600200(250)305mm
Regulating wheel specifications		P350200(300)203mm
Grinding wheel speed		1100r/min
Regulating wheel speed(stepless)		10-200r/min
Swiveling angle of regulating wheel
1)In vertical plane		-2°~ 5°
2)In horizontal plane		-1°~ 3°
Regulating wheel min. feed amount		0.001mm
Grinding wheel dresser min. feed amount		0.01mm
Height from centerline of gri.wheel & reg.wheel to workest		200mm
Cooling Water		100L/min
Toal power of machine
1)Grinding wheel motor		22kw
2)Regulating wheel motor		3kw
3)Water Pump Motor		0.45kw
4)Lubricant Pump Motor		0.09kw
5) Hydraulic Pump Motor		0.75kw
6)Magnetic coolant separator Motor		0.18kw
Overall dimensions		320017851800mm
Machine weight		about 7500kg
Machining accuracy
1)Roundness		0.001mm
2)Cylindricity		0.0018mm
3)Surface Roughness		Ra0.16um

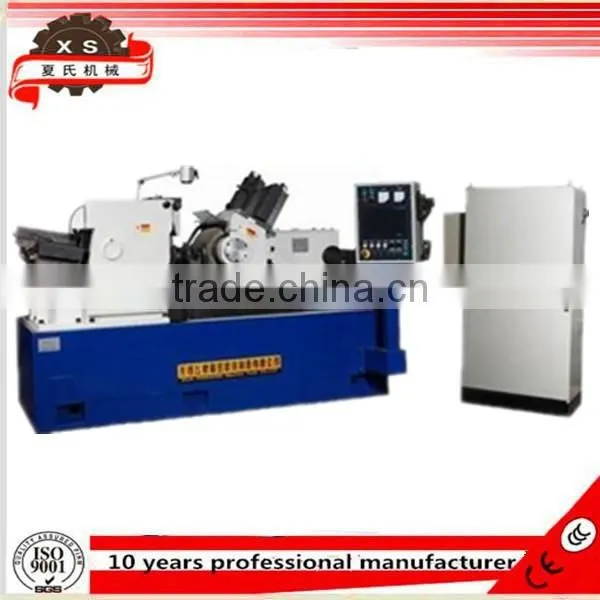

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
