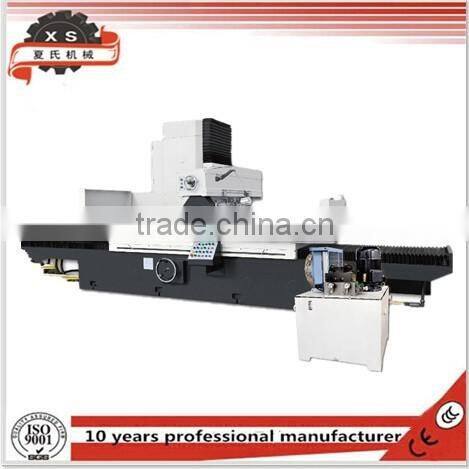

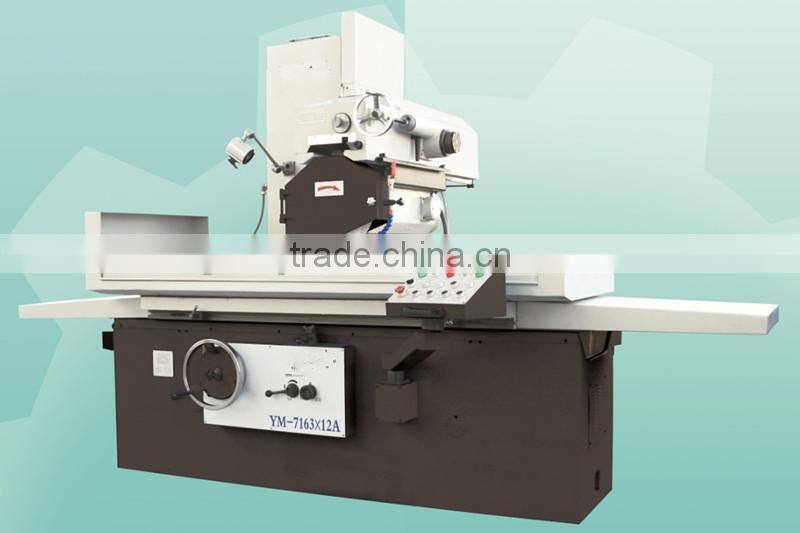

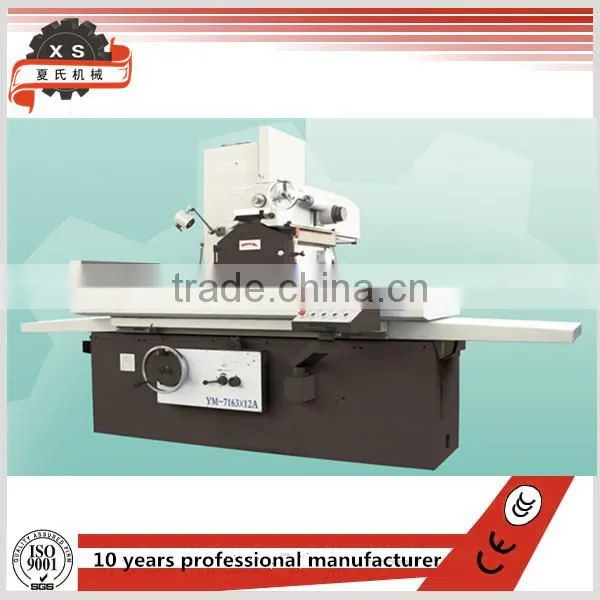

Dependable Performance surface grinding machine ,grinder YM-7163 With Low Price
Item Content |
YM-7163X12A |
YM-7163X16B |
YM-7163X20B |
YM-7163X30B |
YM-7163X40B |
|
Working table size(W×L) |
630×1250 |
630×1600 |
630×2000 |
630×3000 |
630×4000 |
|
Max.grinding size no chuck(L×W×H) |
1250×630×550 |
1600×630×600 |
2000×630×600 |
3000×630×600 |
4000×630×600 |
|
Max.table longitudinal travel |
1350 |
1700 |
2100 |
3100 |
4100 |
|
Max.cross travel of grinding head |
680 |
700 |
700 |
700 |
700 |
|
Max.vertical travel of grinding head |
550 |
600 |
600 |
600 |
600 |
|
Feed on vertical feed handwheel |
Per grad. |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
|
Per rev. |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Wheel size |
400×50×203 |
450×75×203 |
450×75×203 |
450×75×203 |
450×75×203 |
|
The rotating speed of grinding wheel |
1440 |
1440 |
1440 |
1440 |
1440 |
|
Motor total power |
15.2 |
19.5 |
24 |
24 |
28 |
|
Wheel spindle motor |
9 |
11 |
11 |
11 |
11 |
|
Oil pump motor |
5.5 |
7.5 |
11 |
11 |
15 |
|
Parallelism of machining surface to reference surface |
0.008/300 |
0.008/300 |
0.008/300 |
0.008/300 |
0.008/300 |
|
Surface roughness |
Ra:0.63 |
Ra:0.63 |
Ra:0.63 |
Ra:0.63 |
Ra:0.63 |
|
N./G.weight |
4700/5500 |
7000/8000 |
8500/10000 |
11500/13000 |
15000/17000 |
|
Packing dimensions(L×W×H) |
282×210×275 |
500×210×275 |
600×210×275 |
800×210×275 |
1100×210×275 |
|
Configuration of hydraulic station |
The built-in |
Independant external |
Independant external |
Independant external |
Independant external |
|
Note |
To heighten column design according to customer needs |
|||||
Contact
1.Our working time: 8:30am~5:30pm
2. All inquiries will be replied within 24 hours, So please feel free to send us your
inquiry.
3. when our trade manager is off line, please feel free to leave a message, and tell us the
products with model you are interested in, and your E-mail address, we will reply to you within
24 hours.
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
