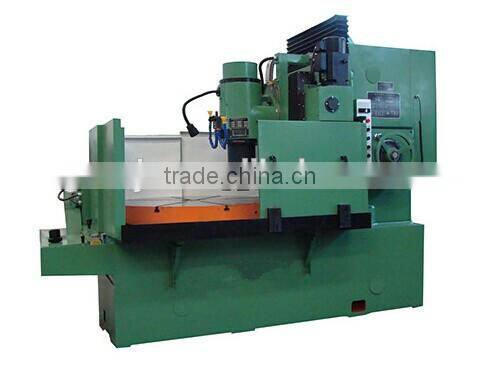

Vertical Spindle Die Grinding Machine With Rotary Work Table MD7480K

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Surface Grinding Machine
CNC or Not	CNC	Place of Origin	Guangxi, China
Brand Name	Xiashi	Model Number	MD7480K
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

MD7480K,MD74125K Vertical Spindle Die Grinding Machine with Rotary Work Table is multi-functional surface-grinding machine mainly to process work pieces on the rotary work table by the circumference of the grinding wheel on the spindle.

There are two models of this machine: magnetic and nonmagnetic; the vertical pillar and the machine tool bed are connected by the three-point position regulation system, which helps to process the work piece into inside cave shape or crown shape; the spindle is able to rotate ±45o around both the horizontal and vertical axis. The grinding wheel spindle is driven by a loaded electric motor; the grinding wheel is in the use of either cup/dish shaped or even distributed trapezoid carborundum brick wheels around the circumference.

This machine is mainly used in the surface grinding process of disc type work. This machine is widely used, in the plants manufacturing or using cooling dies, for the integral grinding of dies with shank or guide-pillar, or to grind an inside cave shaped or crown shaped bench surface on a circular disc type work piece. this machine is also able to grind disc type work pieces with requirement lower than 6-degree accuracy.

List	(Unit)	MD7480K	MD74125K
Diameter of Worktable	mm	Φ800	Φ1250
Grinding Range of Work Pieces(D×H)	mm	Φ800×400	Φ1250×400
Rotational Speed of Working Table(Stepless)	rpm	2~30	2~30
Max. Weight of loaded work piece	kg	700	1300
Grinding wheel swing diameter	mm	Φ350	Φ400
Rotational Speed of Spindle	rpm	1450	1450
Vertical Shifting Distance of Grinding Head	mm	420	420
Auto-Vertical Feed Range of Grinding Head (total 12 levels)	mm	0.005~1.0	0.005~1.0
Auto-Vertical Feed interval time of Grinding Head (total 4 levels)	s	0~9	0~9
Rapid Up-and-Down Speed of the Grinding Head	mm/min	200	200
Max horizontal run distance of Grinding Head	mm	550	800
Auto-Horizontal Feed Range of Grinding Head (total 12 levels)	mm	0.005~1.0	0.005~1.0
Auto-Horizontal Feed interval time of Grinding Head (total 4 levels)	s	0~9	0~9
Rapid Horizontal Speed of the Grinding Head	mm/min	500	500
Y,Z displacement of grinding-head per step of electronic handwheel	mm	0.005	0.005
Power of the Grinding Head Motor	kw	7.5	15
Machine Weight	t	7.5	10.5
Overall Machine Dimensions(L×W×H)	mm	2800×1850×2300	3600×2100×2400
Parallelism of Machined Surface to Base Surface	mm	0.015/1000	0.015/1000
Roughness of Work Piece Surface	μm	Ra≤1.25	Ra≤1.25
