Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > Cylindrical Grinding Machine

Cylindrical Grinding Machine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

External Grinding Machine

Automatic Grade:

Manual

Condition:

New

Contact Supplier Request Quote Chat Now

Suzhou Kemashi Precision Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type External Grinding Machine

Automatic Grade Manual

Condition New

Controlling Mode CNC

Precision Precision

Processing Object Splined Shaft

Abrasives Grinding Wheel

Cylindrical Grinder Type Universal Cylindrical Grinder

For any inquiries, please reach out to me via email at 15312152915@163.com.

I work for a trading company based in China, and we sell a wide range of mold processing equipment, including:

Grinding machines

Milling machines

Machining centers

Wire-cut EDM machines

Medium-speed wire-cut EDM machines

Measuring instruments

You can let me know the specific processing requirements you have, such as the workpiece size, workpiece material, and other relevant information. Alternatively, you can send the drawings to me. Our technician will help your company select the most suitable equipment for your products based on the details of your product.

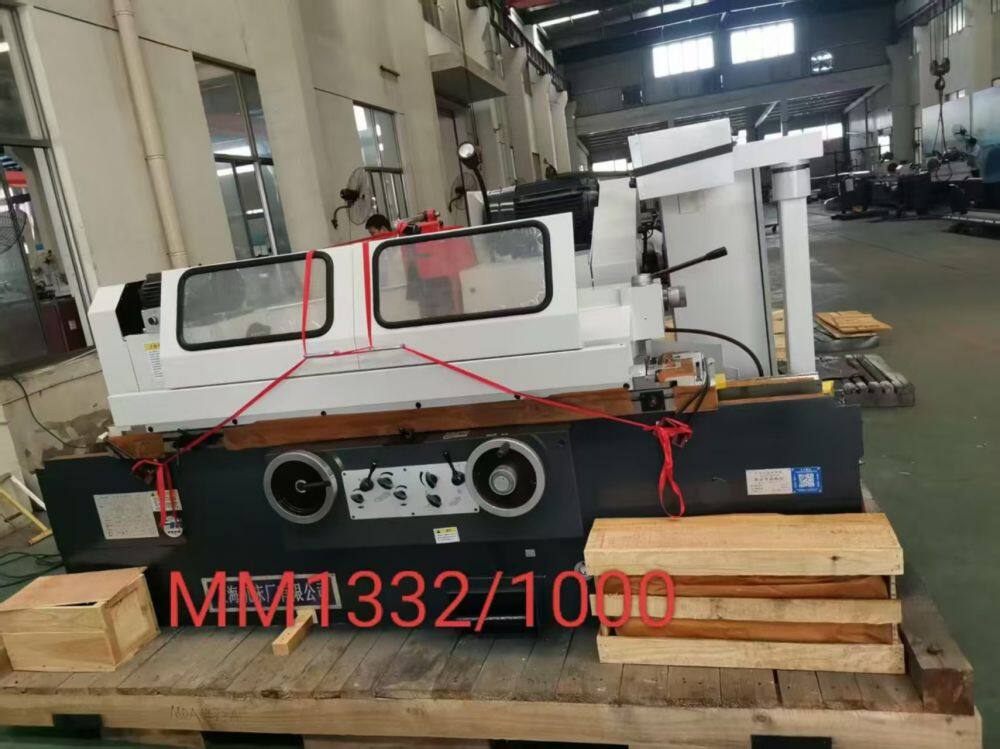

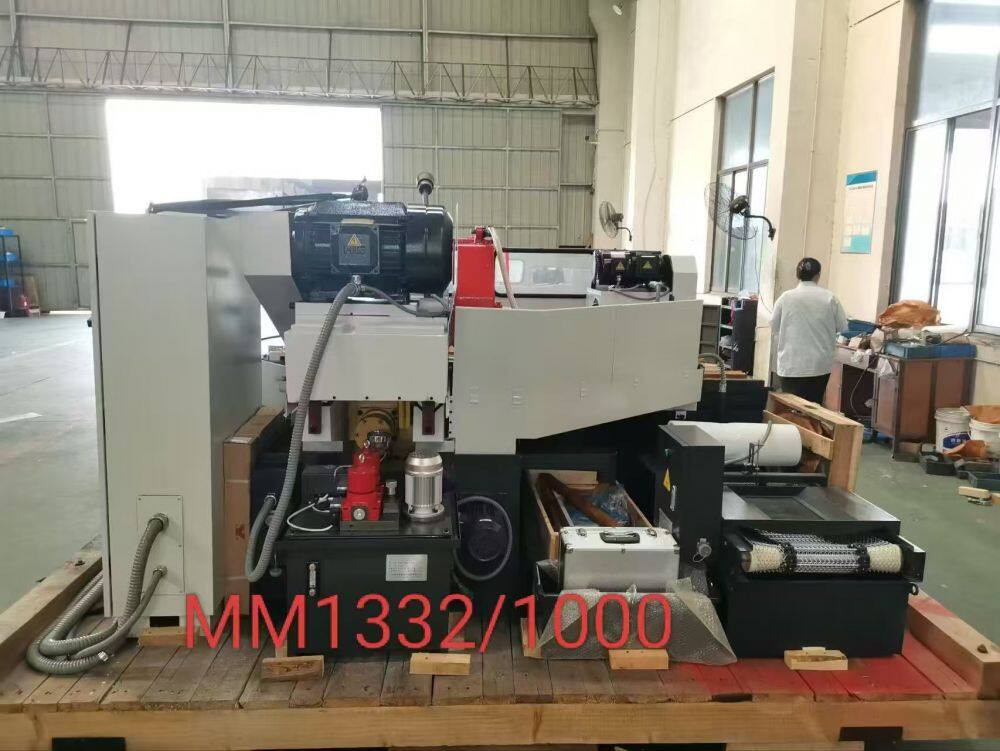

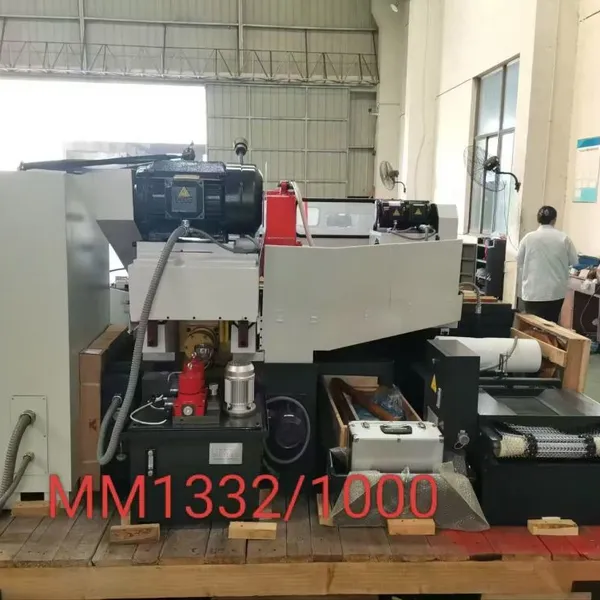

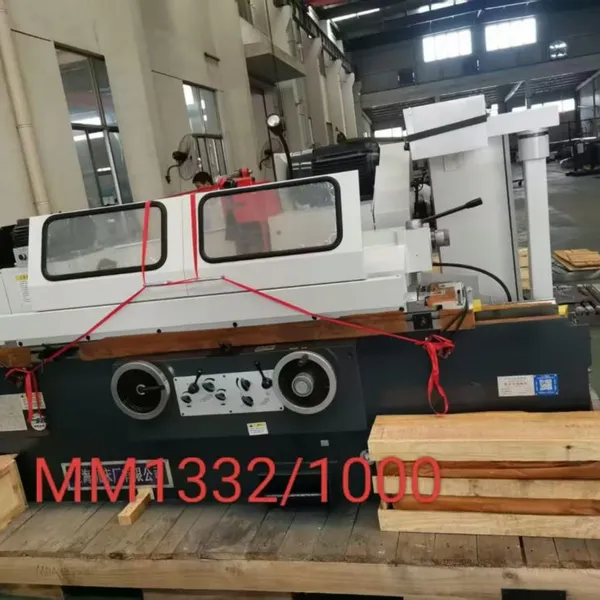

This machine is a general-purpose cylindrical grinder, suitable for processing parts in single-piece and small-batch production workshops of general machinery manufacturing industries. It mainly processes the outer cylindrical surfaces and conical surfaces of cylindrical parts.

The longitudinal movement of the machine tool table can be driven by hydraulic stepless transmission or handwheel. The horizontal feed of the grinding wheel frame can be realized by handwheel, and the hydraulic rapid advance and retreat are also available. The workpiece, grinding wheel, oil pump and cooling pump are respectively driven by separate motors.

This series of machine tools has two specifications with grinding lengths of 500mm and 750mm, and users can choose according to their needs.

Main technical specifications and parameters:(1) Working rangeMaximum grinding diameter: φ200mmMinimum grinding diameter: 8mmMaximum grinding length: 500mm, 750mmMaximum workpiece weight: 50kgDiameter range that can be supported by the steady rest: 5～60mm(2) Main specificationsCenter height: 180mmDistance between centers: 500mm, 750mmHeadstock center (Morse): #4Tailstock center (Morse): #4(3) Headstock and tailstockPossibility of spindle rotation: NoneBody seat rotation angle: NoneWorkpiece rotation speed: 50, 70, 195, 100, 145, 400 r/minTailstock center movement: 30mmTailstock movement mode: Manual(4) Grinding wheel frameGrinding wheel size (outer diameter × width × inner diameter): Maximum φ400×50×φ203mm, worn to φ280×50×φ203mm

Product Tags: 1432Cylindrical Grinding Machine , 1140Cylindrical Grinding Machine , CNC Grinding Machine
