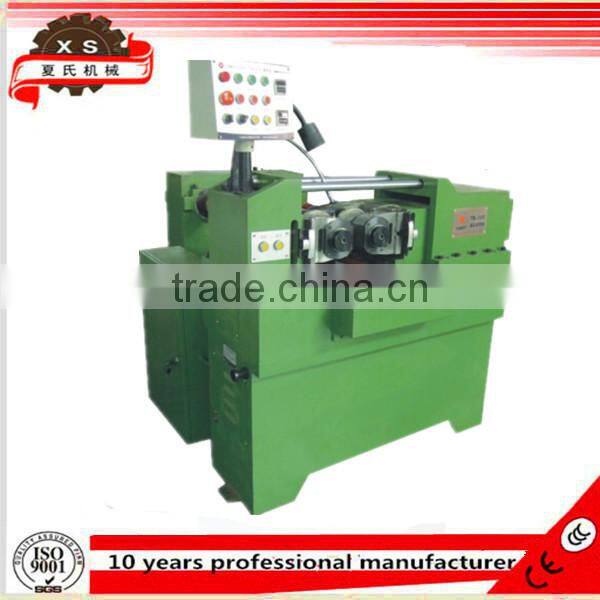

Excellent Quality Two Rollers Thread Rolling Machine Price TB-30S
Product Advantages
1.Combine dual-row needle bearing and cylindrical roller bearing for machine spindle to guarantee the precision and rigidity.
2.For the driving system of spindle, adopt multi-stage gear box to realize stable and convenient speed variation.
3.With sandwich plate vaule for hydraulicsystem, the whole machine seems to be beautiful with less space usage and reliable performance.
4.For the control modes, there are manual, semi-auto and automatic modes for your option.
Product Specification
| Work piece diameter | φ4-φ50/mm | ||||||
| Range of pitch rolled | 1.0-3.5P | ||||||
| Max.length of thread rolled | Fixed and rolling-through for option | ||||||
| Spindle speed | 16/25/40/63rpm | ||||||
| Outside diameter of rolling die | φ115mm-φ175mm | ||||||
| Inside diameter of rolling die | φ54mm | ||||||
| Thickness of rolling die | 120mm | ||||||
| Min.Distance between die spindles | 110mm | ||||||
| Max.Distance between die spindles | 230mm | ||||||
| Output(pcs/min) | 4-20 pcs/min | ||||||
| Machine motor | 5.5HP(4042W) | ||||||
| Hydraulic motor | 2HP | ||||||
| Max. feed pressure | 12.5T | ||||||
| Supply voltage | 380V |

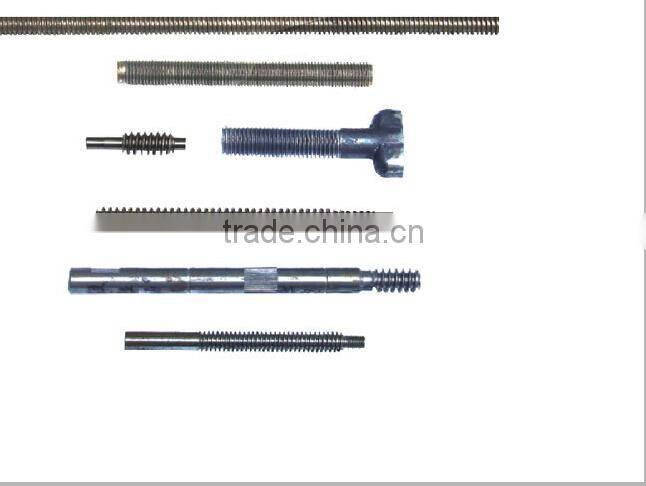

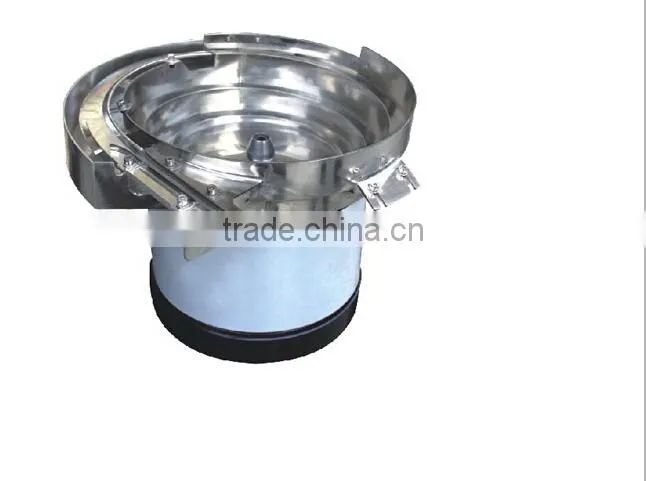

Detailed Pictures For Your Reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
