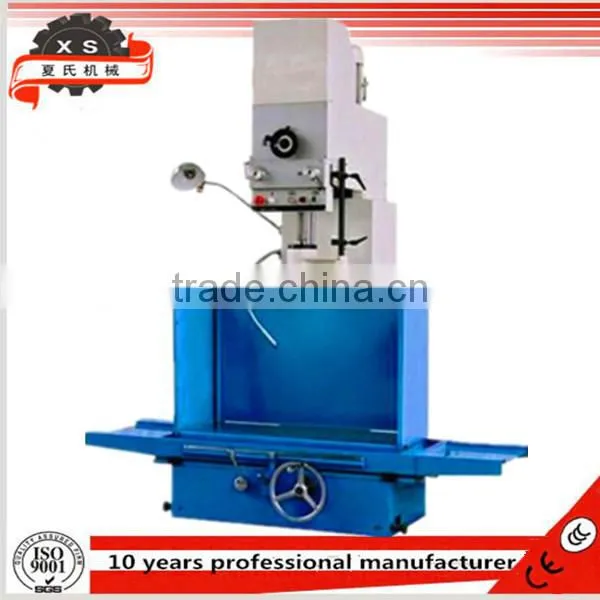

Advanccd-design 2M2217A vertical honing machine
- 30 Set / Sets per Month
- shenzhen
- T/T L/C D/P D/A Credit Card
- 3M9735BX150 Cylinder block and head honing machine with CE
- 3MB9817 Vertical cylinder honing machine from China factory
- 2MSK2125/2MSK2135 CNC deep-hole honing machine
- 2MSK2150 CNC Deep-hole honing machine
- SMAC high precision and well selling manual boring machine
- SMAC high precision and well automatic jig boring machine
Product Details
Condition: | New | Brand Name: | XiaShi | Model Number: | 2M2217A |
CNC or Not: | Normal | Weight: | 2000kg | Dimension(L*W*H): | 1900x1176x2169mm |
Warranty: | 1years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Application
The Machine is mainly used for horing holes of cylinder body and sleeve for engines and other accurate holes.
Feature
The Machine is mainly used for horing holes of cylinder body and sleeve for engines and other accurate holes.
Advanccd-design and steady function.
Stepless of spindle turning feeding.
The rotation of the main shaft adopts gear transmission, feeding by Continuously Variable;
Technical parameters
Honing diameter range | φ40-φ170mm | |
max.honing depth | 320mm | |
Telescopic length of spindle connecting rod | 120mm | |
Spindle speeds(four steps) | 130,180,240,365rev/mm | |
Spindle alternating motion speed(stepness) | 3-18m /min | |
Max.spindle travel | 300mm | |
Distance from spindle axis to column vertical plane | 300mm | |
Dimensions of the surface | 400x 1000mm | |
Table longitudinal travel | 800mm | |
Machining | Dimension | 0.003mm |
Roundness | 0.005mm | |
roughness | Ra0.4 | |
Overall Dimensions(LxWxH) | 1900x1176x2169mm3 | |
N.W./G.W. | 2000kg / 2500kg | |
Paking Dimensions ( LxWxH ) | 1440x1770x2170mm3 |
Standard accessory
1 | MT 62 honing head (honing Φ62-Φ82 hole) |
2 | tool case |
1 | MT110 honing head(honing Φ110-Φ170 hole) |
2 | MT82 honing head(honing Φ82-Φ110hole) |
3 | MT40 honing head(honing Φ40-Φ62 hole) |
Picture details
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
