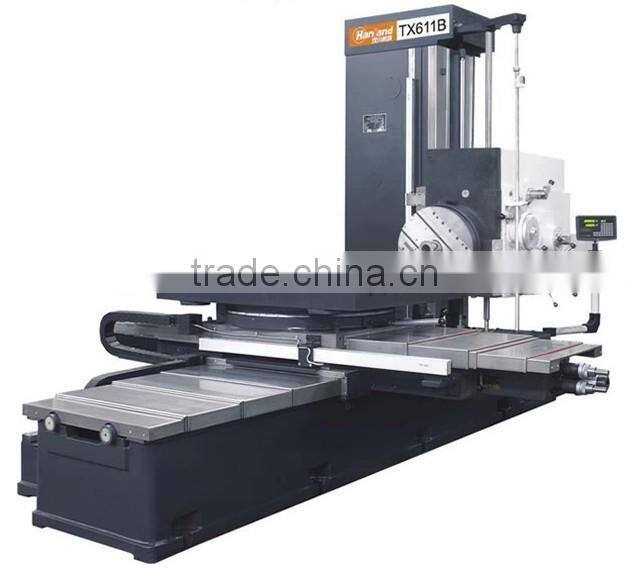

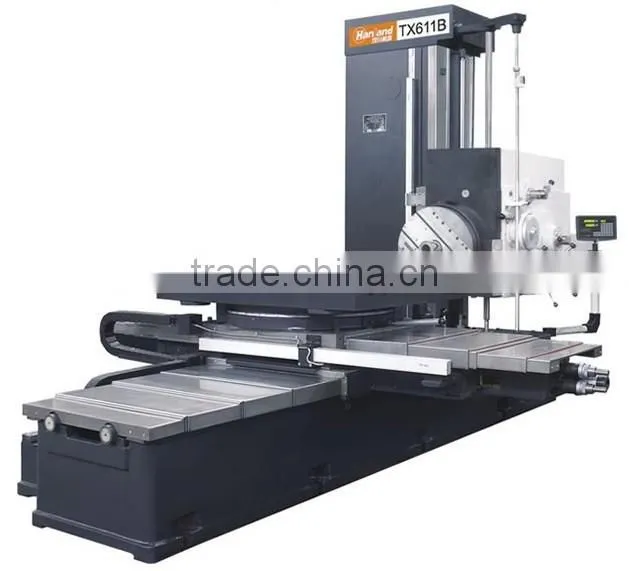

TX611B horizontal boring machine
- 30 Set / Sets per Month
- SHENZHEN
- T/T D/P D/A Credit Card
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Guangxi, China |
Brand Name: | xiashi | Model Number: | TX611B | Power(W): | 6.5/8kw |
Dimension(L*W*H): | 5016*2627*2788 mm | Weight: | 13.5 T | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.110/130 spindle
2.TX611B have high rigidity spindle system, can be used for roughing processing and heavy cutting, high efficiency,good rigid and accuracy.
3.More than 40 years history
.Horizontal Boring Machine TX611B
High rigidity spindle system, can be used for roughing processing and heavy cutting, high efficiency, Bed, column, topslide, bottom side, all use rectangular guides, with PTFE material coating, abrasion and pressure resistant, good stability. Headstock end has facing plate radial direction turret, can for radial directionprocessing. Can choose hanging wheel for thread processing. Moving parts can be rapid-moving rotary table, use pin positioning on 0°,90°,180°,270° position, manual clamping, positioning accuracy, high precision. Headstock heavy hammer balance, smooth movement. Safety device will be disengaged automatically when overload feeding, to prevent damage to the workpiece and tool. Machine manual fine-tuning of the moving parts by hand wheel operation. When any moving parts all can be adjusted by manual.For rapid moving or mechanical feeding, hand-wheel exit automatically, to ensure easy and reliable operation.
Model | TX611B | TX611C | TX611C/4 |
Spindle diameter | 110 mm | 110 mm | 110 mm |
Worktable size(L×W) | 1320×1010 mm | 1320X1010 mm | 1320X1010 mm |
Max. loading of worktable | 5000 Kg | 5000 Kg | 5000 Kg |
Distance from spindle center to table | 5-905 mm | 5-905 mm | 5-1205 mm |
Ttravel of table (z, x) | 850×1100 mm | 1200×1100 mm | 1800×1100 mm |
Headstock vertical travel (y) | 900 mm | 900 mm | 1200 mm |
Spindle axial travel (w) | 550 mm | 550 mm | 550 mm |
Max. boring diameter | 240 mm | 240 mm | 240 mm |
Max. drilling diameter | 50 mm | 50 mm | 50 mm |
Max. milling diameter with facing plate | 630 mm | 630 mm | 630 mm |
Facing head tool holder’s radial travel | 160 mm | 160 mm | 160 mm |
Inner hole taper of spindle | morse No. 6 (BT 50) | morse No. 6 (BT 50) | morse No. 6 (BT 50) |
Max. allowable torque on facing head | 1100 N.m | 1100 N.m | 1100 N.m |
Spindle speed range | 12-950 rpm | 12-950 rpm | 12-950 rpm |
Facing head speed range | 4-160 rpm | 4-160 rpm | 4-160 rpm |
General power | 35 KVA | 35 KVA | 35 KVA |
Positioning accuracy (x, y, z) | X:0.04 Y:0.05 Z:0.06 mm | X:0.04 Y: 0.05 Z:0.06 mm | X:0.04 Y:0.05 Z:0.06 mm |
Weight of machine | 13.5 T | 15 T | 17 T |
Overall dimensions(L×W×H) | 5016×2627×2788 mm | 5016x3149×2788 mm | 5016×3867×3148 mm |
Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
