Home > Products > Boring machine > TK611C/1A CNC horizontal boring machine

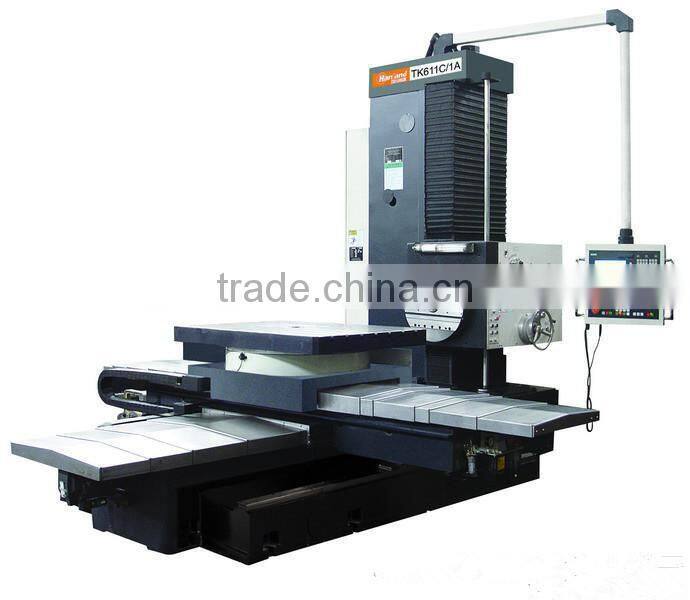

TK611C/1A CNC horizontal boring machine
- 30 Set / Sets per Month
- SHENZHEN
- T/T D/P D/A Credit Card
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Guangxi, China |
Brand Name: | xiashi | Model Number: | TK611C/1A | Dimension(L*W*H): | 5437*3020*2890 mm |
Weight: | 4400kg | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
110 (130 spindle optional)
CNC rotary table (5, 1 & 0.001 degree indexing) .
With planer workbench, this machine adopts double sided power column frame structure form. It can achieve high feed processing and use herringbone guideway cover made especially suitable for basic big pieces of large and medium sizes and weights, the drills of many parts such as board pieces, disk parts, shell parts, mould and so on,processing of diffuser, hinge, boring hole, and milling processing of plate and curved surfaces.
Main specifications
Model | TK611B/1A | TK611C/1A | TK611C/4A |
Spindle diameter | 110 mm | 110 mm | 110 mm |
Worktable size (L×W) | 1320×1010 mm | 1320×1010 mm | 1320X1010 mm |
Max. loading of worktable | 5000 Kg | 5000 Kg | 5000 Kg |
Distance from spindle center to table | 5-835 mm | 5-835 mm | 5-1135 mm |
Longitudinal and transverse travel of table (z x) | 1300×850 mm | 1300×1200 mm | 1300×1800 mm |
Headstock vertical travel (y) | 830 mm | 830 mm | 1130 mm |
Spindle axial travel (w) | 550 mm | 550 mm | 550 mm |
Max. boring diameter | 240 mm | 240 mm | 240 mm |
Max. drilling diameter | 50 mm | 50 mm | 50 mm |
Max. machining diameter with facing plate | 630 mm | 630 mm | 630 mm |
Facing head tool holder’s radial travel | 160 mm | 160 mm | 160 mm |
Inner hole taper of spindle | ISO No. 50 | ISO No. 50 | ISO No. 50 |
Facing plate speed range | 4-125 rpm | 4-125 rpm | 4-125 rpm |
Spindle speed range | 12-1100 rpm | 12-1100 rpm | 12-1100 rpm |
Facing head feeding speed range | 0.2-330 mm/min | 0.2-330 mm/min | 0.2-330 mm/min |
General power of machine | 35 KVA | 35 KVA | 35 KVA |
Positioning accuracy (x, y, z) (B) | X:0.04 Y:0.032 Z:0.04 mm 15" | X:0.04 Y:0.032 Z:0.04 mm 15" | X:0.04 Y:0.04 Z:0.04 mm 15" |
Repeated positioning accuracy (x, y, z/B) | 0.015 mm / 6" | 0.015 mm / 6" | 0.015 mm / 6" |
Overall dimensions (L×W×H) | 5437×2670×2890 mm | 5437×3020×2890 mm | 5352×3704×3344 mm |

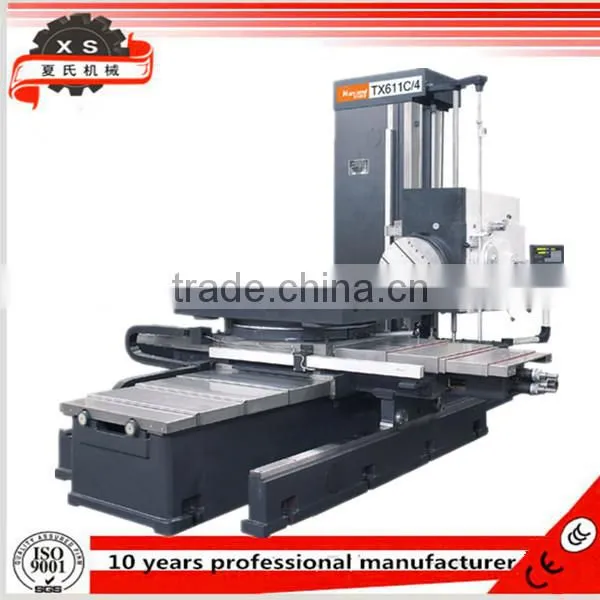

Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
