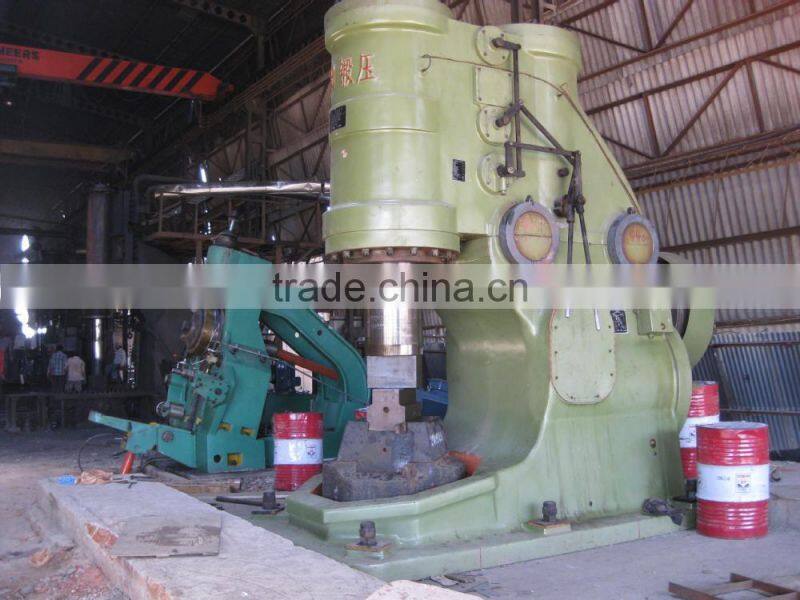

Help Center2000kg Metal Forging Hammer C41-2000
Related Products
-
1000kg Mini Air Hammer C41-1000 With Low PriceUS$ 5,000 - 50,000MOQ: 1 Set -
Tackle Vertical Metal Band Sawing Machine GD5340/120NegotiableMOQ: 1 Set
-
Tackle Vertical Metal Band Sawing Machine GD5335/100NegotiableMOQ: 1 Set
-
GD4265/70 Double Column Horizontal Pipe Cutting Band Saw MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
C41-20KG Factory Direct Sale Blacksmith Air Hammer With Base PlateUS$ 1,000 - 10,000MOQ: 1 Set
It mainly used to free forging,drawing,upsetting,punching,hot shearing,forged welding,bending,torsion and foetal,standard forge.
Widely used for general Forging works, such asdrawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.
Features
1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with its self-contained cylinder,require no ancillary power raising plant.
2. The Pneumatic forging hammer is equipped with a self-priming lubricating oil pump, during operating, it can realize the automatic lubrication.
3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.
Model |
C41-2000 |
|
Weight of falling parts (kg) ) |
2000 |
|
Maximum hit energy(kj) |
54 |
|
Hit number(min-1) |
80 |
|
Heigh of working area (mm) |
1000 |
|
Tup axis to frame front (mm) |
950 |
|
Dimension of top die surface(L x W) (mm) |
400x300 |
|
Dimension of bottom die surface(L x W) (mm) |
400x300 |
|
Forges |
Square(mmxmm) |
350x350 |
Round(mm) |
Φ 400 |
|
Motor |
Type |
Y315L2-6-B3 |
Power(kw) |
132 |
|
Weight |
Hammer(kg) |
48000 |
Anvil block(kg) |
24000 |
|
Outside Size |
4200x |
|
