GD4265/70 Double Column horizontal pipe cutting band saw machine
Introduction
Double column, double cylindergantry type band sawing machine series by the company's own design, manufacture. Reasonable structure, stable performance, beautiful appearance, high
production efficiency, is an ideal material for large cutting equipment.
The guide rail adopts imported linear guide rail. Spiral bevel gear reducer main transmission
adopts German technology. The saw beam by a balance type double cylinder working
simultaneously. The feed speed hydraulic control, stepless speed regulation.
The workpiece using vise hydraulic clamping , saw blade using automatic tensioner.saw kerf is narrow, energy efficient, mechanical automatic feeding.
Technical parameter
Model | GD4265/70 |
Max .cutting capacity: | 650mm |
Cutting speed | 25/45/65 m/min |
square stock | 650×700 |
Specification of blade saw(Length x width x thickness) | 54×1.6×6470mm |
Clamping System | hydraulic vice |
Comprehensive cutting precision | ±0.20mm |
Power of main motor | 9.24kw |
Hydraulic motor power | 3.75kw |
cooling pump | 0.075kw |
The main transmission structure | worm gear drive |
Saw blade tensioning method | manual |
Feeding modes | Auxiliary roller track |
Machine overall dimensions(L*W*H) | 3200×1500×2300mm |
Machine weight | 6300kg |

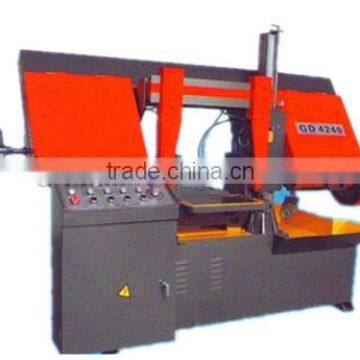

Detailed pictures for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
