1000kg Mini Air Hammer C41-1000 With Low Price
- Shanghai Shenzhen Guangzhou Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
-
Tackle Vertical Metal Band Sawing Machine GD5340/120
-
Tackle Vertical Metal Band Sawing Machine GD5335/100
-
GD4265/70 Double Column Horizontal Pipe Cutting Band Saw Machine
-
C41-20KG Factory Direct Sale Blacksmith Air Hammer With Base Plate
-
Mini Air Hammer Metal Forging Hammer C41-6KG(integrated)
-
Gantry Type Automatic Metal Band Saw Cutting Machine GD4265/70
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | Guangxi Xiashi | Model Number | C41-1000 | |
| Voltage | as request | Power(W) | 75KW | |
| Dimension(L*W*H) | 3770x1500x4125 | Weight | 3200kg | |
| Certification | ISO CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1000kg mini air hammer C41-1000 with low price
It mainly used to free forging,drawing,upsetting,punching,hot shearing,forged welding,bending,torsion and foetal,standard forge
Widely used for general Forging works, such asdrawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.
Features:
1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with its self-contained cylinder,require no ancillary power raising plant.
2. The Pneumatic forging hammer is equipped with a self-priming lubricating oil pump, during operating, it can realize the automatic lubrication.
3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.
Rated weight of the tup(kg) | 1000 | |
Minimum blow energy(kj) | 27 | |
Number of blows per minute(min-1) | 95 | |
Height of working area (mm) | 800 | |
Distance between tup centre axis and frame front(mm) | 800 | |
Maximum round steel can be forged(Diameter)(mm) | 320 | |
Maximum square steel can be forged(mm) | 290 x 290 | |
Maximum round steel can be forged(mm) | 320 | |
Machine floor space(L x W)(mm) | 4125 x 4000 | |
Machine height(above the ground)(mm) | 3662 | |
Motor | Type | Y315S-6 |
Rate power(kw) | 75 | |
Speed(r/min-1) | 988 | |
Total weight of the hammer (kg) | Hammer 2000 | |
Anvil block1300 | ||
Outside size(mm) | 3770x1500x4125 | |

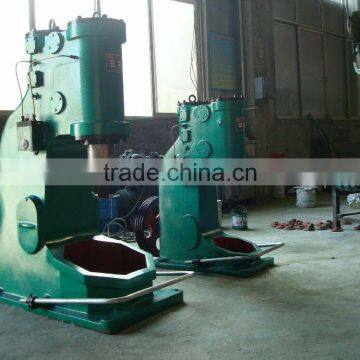

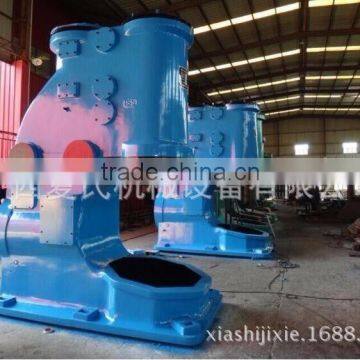

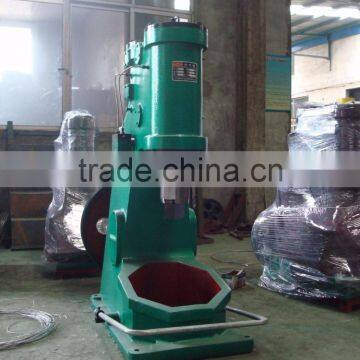

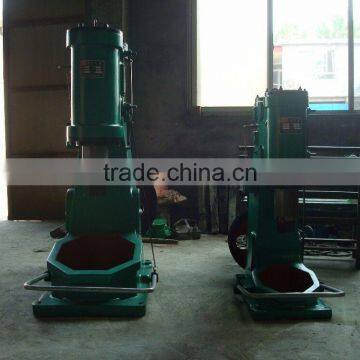

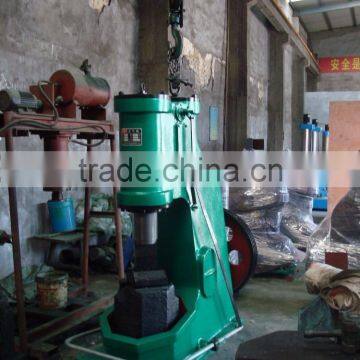

Pictures for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
