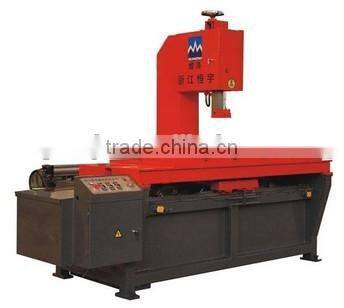

Tackle Vertical Metal Band Sawing Machine GD5340/120

Guangxi Xiashi Machinery Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Model Number:

GD5340/120

Voltage:

380v

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Model Number GD5340/120

Voltage 380v

Rated Power 2.85kw

Dimension(L*W*H) 300*1400*2100mm

Weight 1500kg

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Main feature

The company's own design and manufacture of tackle vertical band sawing machine through

constant technological innovation and development, has made a whole new breakthrough.

Workpiece fixed, saw frame movement, small footprint. . Saw frame for mobile use hydraulic

feed,stepless speed regulation.

Stroke guide rail adopts imported linear guide rail, positioning accuracy, stable performance.

Tungsten alloy adjustable clamp pieces to ensure cutting accuracy. Easy to operate, energy

efficient, suitable for cutting steel cutting die blanks, plates, forgings.

Techinical parameter

Model		GD5340/120
Cutting range	throat depth	400 mm
	Stroke	1200 mm
	Height	380 mm
cutting speed		stepless speed regulation
Specification of band saw		4115×41×1.3
Comprehensive cutting accuracy		±0.20mm
Main motor power		2.85kw
cooling pump		0.075
Clamping System		plate pinch
Feeding modes		Auxiliary roller track
Machine overall dimensions (L×W×H)		3000×1400×2100
Machine weight		1500kg
