Air Power Hammer Metal Forging Hammer C41-40KG (Integrated)

Air Power Hammer Metal Forging Hammer C41-40KG (Integrated) photo-1

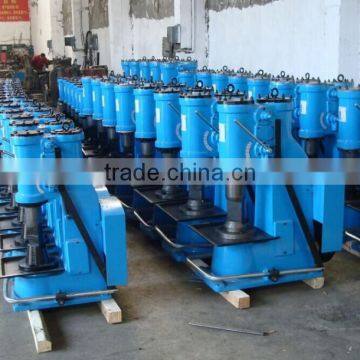

Air Power Hammer Metal Forging Hammer C41-40KG (Integrated) photo-2
Air Power Hammer Metal Forging Hammer C41-40KG (Integrated) photo-3
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
Xiashi
Model Number:
C41-40KG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangxi, China
Brand Name Xiashi
Model Number C41-40KG
Condition New
After-sales Service Provided Engineers available to service machinery overseas



Product Description

This air power forging hammer is used to free forging,drawing,upsetting,punching,hot shearing,forged welding,bending and torsion.

I would like to suggest our air forging hammer(power hammer) to you, which is widely used for general Forging works. It is used for forging in bolster dies.



So far, Our Air Forging Hammers have been exported to Germany, UK, France, Russia, Romania, Slovenia, South Africa, Egypt, Brazil, Mexico, India, Vietnam, Thailand etc more than 50 countries.



Features:



1. the Air forging hammer with its self-contained cylinder,require no ancillary power raising plant.

2. The Air forging hammer is equipped with a self-priming lubricating oil pump.  It can realize the automatic lubrication during operating.

3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.



Item

Unit

MODEL NO.



Weight of falling parts

kg

40

Maximum blow energy

J

530

Distance from center of die to frame

mm

235

Distance between top and bottom die

mm

245

Number of blows per minute

min-1

245

Dimension of top to bottom

mm

120*50

Diameter of the working cylinder

mm

200

Diameter of the compressing cylinder

mm

205

Travel distance of malleus

mm

290

Travel distance of plunger

mm

154

Forges

Round

mm

Φ68



Square

mm

52

Motor

Power

kw

4



Rotate speed

rpm

1440



Outside Size

Length

mm

1080



Width

mm

600



High

mm

1430

Hammer weight

kg

~880

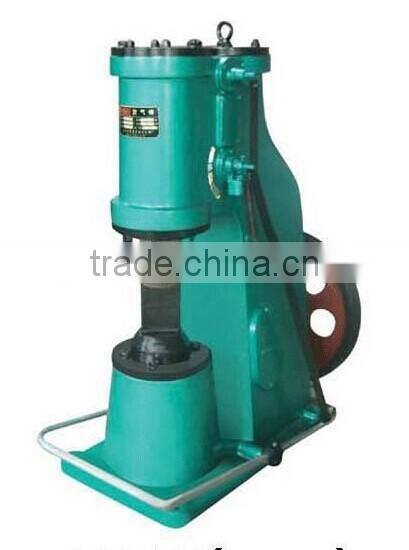

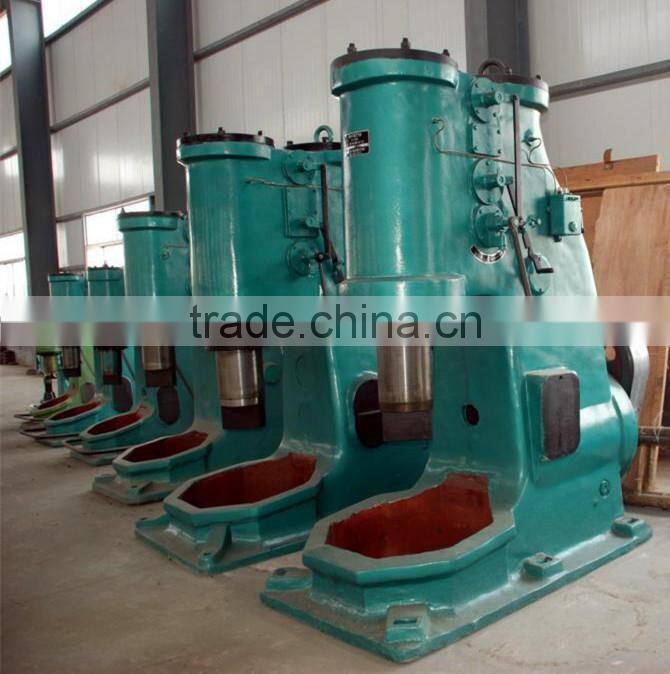

Air power hammer Metal forging hammer C41-40KG (Integrated)Air power hammer Metal forging hammer C41-40KG (Integrated)Air power hammer Metal forging hammer C41-40KG (Integrated)Air power hammer Metal forging hammer C41-40KG (Integrated)

Air power hammer Metal forging hammer C41-40KG (Integrated)







FAQ:

1.  Payment

What are the terms of payments you offer?

We accept payment of T/T, LC and Western Union etc

2.  Shipment

How long will it take to deliver goods?

We will deliver the goods within 10 days for spare parts, we will deliver the goods within the deadline which both parties agree.

3.  What kind of packaging you offer?

Normally in Plywood case or nude package,to make sure all goods in a good condition.

4.  What kind of transportation methods you offer?

We always transport by sea or by air, we will confirm freight with buyers' prior delivery.

5.  How about the insurance during transportation? How to deal with the responsibility?

Buyers should take the full responsibility for shortage of goods if the goods are checked

by any custom during transportation. During transportation, if goods are missed because of

having been detained by custom in China, all loss thus occurred should be borne by us; if

missing or detained of goods are occurred in other country except China, all loss should be

borne by buyers.

Warranty & After-sale service:

1. 24-hours technical support by E-mail or telephone

2. Provide extra accessories for the machine

    Also provide service of make program according to your drawings

   Customized or special design is OK.

3. All of our products’ warranty period for 12 months.

4. Man-made destroy will be exception

5. We can supply the materials or tech support to our customers to help them fix the problems.

    We will pay the delivery charge if the repair, return or replacement cases happen.
