Hydraulic chain calibrating machine
- 8 Set / Sets per Month
- Shanghai
- T/T
- AC spot welding machine 25KVA Iron sheet spot welding machine
- AC spot welding machine 35KW Iron sheet spot welding machine
- AC spot welding machine Resistance spot welding machine Iron sheet spot welding machine
- Heavy Duty Gantry Resistance Welding System Integration for Steel Bars Mesh
- Wire heating mesh resistance welding machine pneumatic pressurized spot welding machine
- Large-scale welding machine Chicken wire automatic welding spot welder Resistance welding equipment
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | BOBO | Model Number: | UNB-350 |
Primary Voltage: | 380V | Rated Duty Cycle: | 50% | Rated Capacity: | 350KVA |
Dimensions: | diamter 14-22mm | Usage: | Chain forming | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

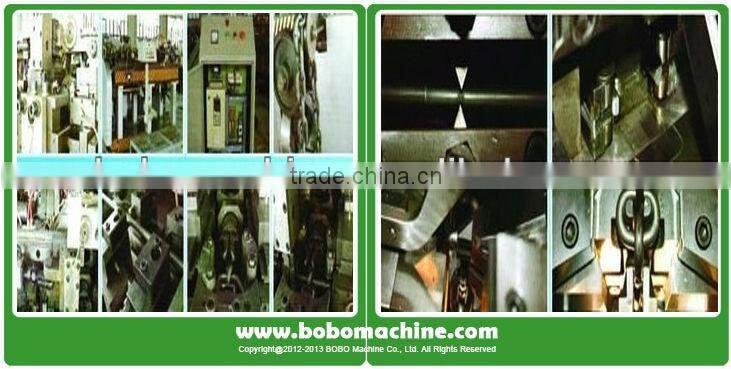

Hydraulic chain calibrating machine1- Chain conveying
2- Chain rotating
3- Chain welding
4- Chain forging
Automatic chain welding machine, chain link welding machine, chain making machine, anchor chain equipment, chain production line.
Hydraulic chain calibrating machine
Chain link formign machine, chain forming machine, chain bending machine,Chain link calibrating machine, chain calibration machine, chain testing machine
The machine used to welding the chain with secondary resistance electrify method, include the chain conveying, rotating, wedling, forging, trimming, ect 19 actions in automatic work.
Working process:
1- Chain conveying
2- Chain rotating
3- Chain welding
4- Chain forging
5- Chain trimming
Technical data
Model: UNB-125C |
Suitable wire diameter: 4-8mm |
Chain pitch: 2.7 ~ 5.0 times of wire diameter |
Productivity: 40-50 rings/min |
Rated capacity: 125KVA, 50Hz |
Open circuit voltage: 3.52~7.04 V (8 grade) |
Motor capacity: 2.2KW, 1500rpm speed |
Pneumatic pressure: 0.6MPa |
Air consumption: 7L / cycle |
Cooling water consumption: 18L/min, min. degree 15 centigrade. |
Machine dimension: 2200 x 1350 x 1900mm |
Machine net weight: 2160KG |
