Chain Link Calibrating Machine
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BOBO
Model Number:
UNB-125C
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Production Line for Chain Making MachineUS$ 1 - 2MOQ: 1 Set -
Anchor Chain Butt Welding MachineUS$ 1 - 2MOQ: 1 Set
-
Automatic Mining Chain Welding MachineUS$ 10,000 - 40,000MOQ: 1 Set
-
Flash Butt Welding Machine for Chain MakingUS$ 10,000 - 40,000MOQ: 1 Set
-
Automatic Chain Making MachineUS$ 1 - 2MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
UNB-125C
Primary Voltage
380V
Rated Duty Cycle
50%
Rated Capacity
350KVA
Dimensions
diamter 14-22mm
Usage
Chain forming
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Chain link calibrating machine1- Chain conveying
2- Chain rotating
3- Chain welding
4- Chain trimming
Automatic chain welding machine, chain link welding machine, chain making machine, anchor chain equipment, chain production line.

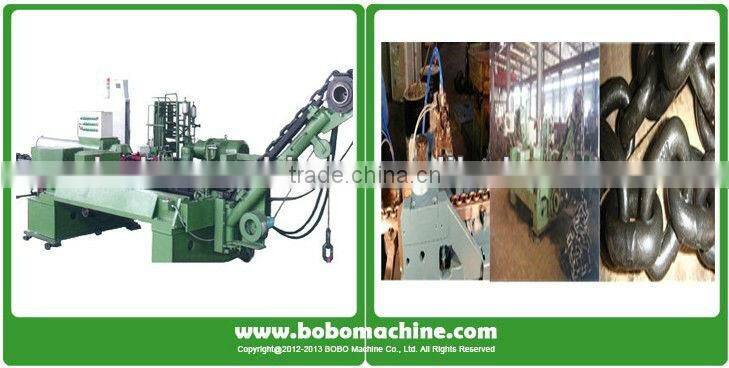

Chain link calibrating machine
Automatic chain welding machine, chain link welding machine, chain making machine, anchor chain equipment, chain production line. Chain link formign machine, chain forming machine, chain bending machine,Chain link calibrating machine, chain calibration machine, chain testing machine
The machine used to welding the chain with secondary resistance electrify method, include the chain conveying, rotating, wedling, forging, trimming, ect 19 actions in automatic work.
Technical data
| Model: UNB-125C |
| Suitable wire diameter: 4-8mm |
| Chain pitch: 2.7 ~ 5.0 times of wire diameter |
| Productivity: 40-50 rings/min |
| Rated capacity: 125KVA, 50Hz |
| Open circuit voltage: 3.52~7.04 V (8 grade) |
| Motor capacity: 2.2KW, 1500rpm speed |
| Pneumatic pressure: 0.6MPa |
| Air consumption: 7L / cycle |
| Cooling water consumption: 18L/min, min. degree 15 centigrade. |
| Machine dimension: 2200 x 1350 x 1900mm |
| Machine net weight: 2160KG. |
