Flash Butt Welding Machine for Chain Making
US$ 10,000 - 40,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | BOBO | |
| Model Number | UNB-125C | Primary Voltage | 380V or can be customized | |
| Rated Duty Cycle | 50% | Rated Capacity | 300KVA | |
| Dimensions | diamter 4-8mm | Usage | Chain welding | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Flash butt welding machine for chain making1-PLC control
2-Good quality

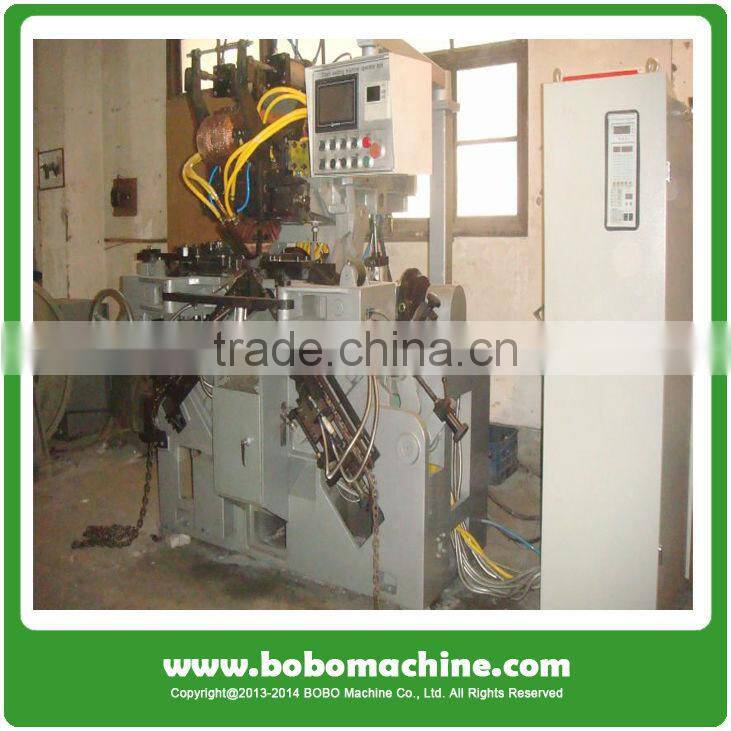

Flash butt welding machine for chain making
The flash butt welding machine for chain making is used to weld the chain with secondary resistance electrify method, include the chain conveying, rotating, wedling, forging, trimming, ect 19 actions in automatic work.
Feature
- Automatic, stable and reliable
- Good performance
- Save enegy and improve welding quality
Technical data
| Model | UNB-125C |
| Suitable wire diameter | 4-8mm |
| Chain pitch | 2.7-5.0 times of wire diameter |
| Productivity | 40-50 rings/min |
| Rated capacity | 125KVA, 50Hz |
| Open circuit voltage | 3.52~7.04 V (8 grade) |
| Motor capacity | 2.2KW, 1500rpm speed |
| Pneumatic pressure | 2.2KW |
| Air consumption | 7L/cycle |
| Cooling water consumption | 18L/min, 15 centigrade |
| Machine dimension | 2200 x 1350 x 1900mm |
| Machine net weight | 2160kg |
