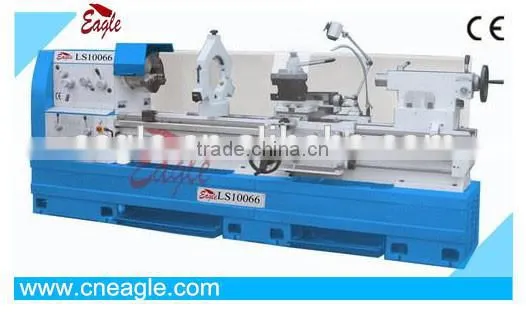

BENCH LATHE

Specifications

• Precision ground.
• Clutched head stock.
• CE-conformity.
• Safety torque limiting device for lead screw.
• Safety overload clutch for feedrod.
• Rapid traverse (optional).
• Main spindle supported at 2 points with precision taper roller bearings.
• 2500~3000mm Lathe with follow chip cuard.

• Model	Unit	LS10066×1000
  Max. swing over bed	mm	660
  Max. swing over cross slide	mm	435
  Max. swing over gap	mm	860
  Valid length of gap	mm	280
  Distance between centers	mm	1000
  Spindle bore	mm	103
  Spindle nose		ISO-C11 or ISO-D11
  Number of spindle speed		CCW18   CW6
  Range of spindle speed	r/min	9~1275    16~816
  Range of longitudinal feeds	mm/rev	0.073~4.066
  Range of cross feeds	mm/rev	0.036~2.033
  Range of metric threads	mm	0.5~112
  Range of inch threads	inch	56~1/4
  Module threads range		0.5~7
  Dia. of  tailstock sleeve	D.P	56~4
  Diameter of tailstock sleeve	mm	90
  Taper of tailstock bore		Morse NO.6
  Travel of tailstock sleeve	mm	150
  Cross adjustment range	mm	10
  Power of motor	kw	7.5 or 11
  Power of quick-travel motor	w	250
  Power of coolant pump	w	125
  N.W/G.W	kg	3000/3600
  Overall dimensions (L×W×H)	mm	2820×1300×2100
  Item NO.		115068

  Standard accessories	Optional accessories
  3-Jaw chuck(160mm)	Steady plates	4-jaw chuck(200mm)
  Change gears set	Follow rest	Taper copy ruler
  Tool box with tools	Thread dial	Quick change toolpost
  Oil gun	Live center	Longitudinal automatic trip
  Driving plate		4-position longitudinal
  Center center sleeve	Face plate	automatic trip
