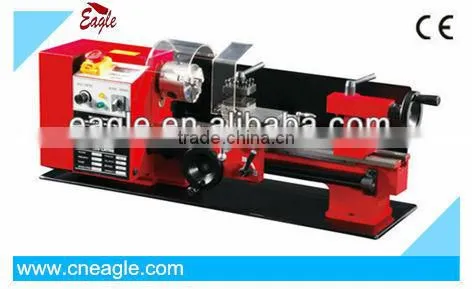

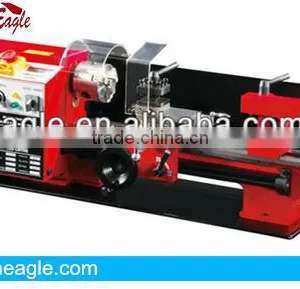

Help CenterMini Lathe
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Mini lathe
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Other, Mini lathe
CNC or Not
Normal
Automatic Grade
Automatic
Max. Swing Diameter
180mm
Place of Origin
Shandong, China
Brand Name
Eagle
Model Number
ML180
Voltage
220V
Power(W)
250W
Dimension(L*W*H)
790*360*390mm
Weight
37/40kg
After-sales Service Provided
No overseas service provided
Specifications
Constructed with cast iron giving great rigidityPrecision ground Vee bed slide ways

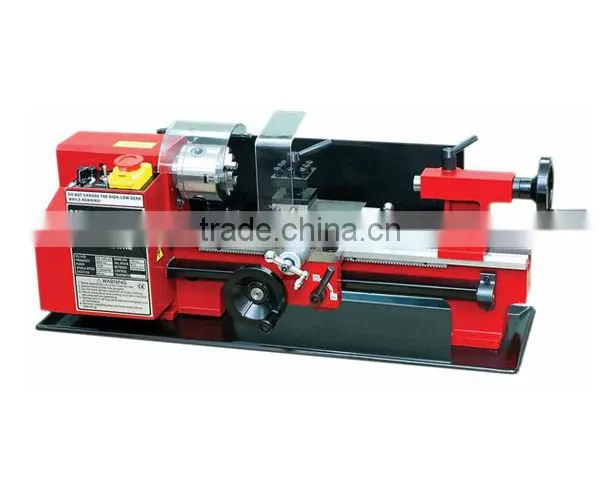

Mini Lathe
Specifications
| Specification | Data | |
| Swing over bed | 180mm | |
| Distance between centers | 200mm | Model 200 |
| 300mm | Model 300 | |
| Hole through spindle | 20mm | |
| Spindle taper | MT3 | |
| Tailstock taper | MT2 | |
| Cross slide travel | 65mm | |
| Compound reavel | 55mm | |
| Range of threads | Metric version 0.4-2.0mm(10thread pitches) | |
| Imperial version 15-52mm(18thread pitches) | ||
| Motor output power | 250W | |
| Spindle speed(variable speed) | Low range 100-1100±10%rpm | |
| High range 100-2500±11%rpm | ||
| Overall dimension (L×W×H) | 600×300×300mm | Model 200 |
| 700×300×300mm | Model 300 | |
| Packing size (L×W×H) | 690×360×390mm | Model 200 |
| 790×360×390mm | Model 300 | |
| Weight (Net/Gross) | 33/36kg | Model 200 |
| 37/40kg | Model 300 | |
| Model | ML180-200/300 | |
| Item Number | 100106 / 100107 |
KEY FEATURE
- • Constructed with cast iron giving great rigidity
- • Precision ground Vee bed slide ways

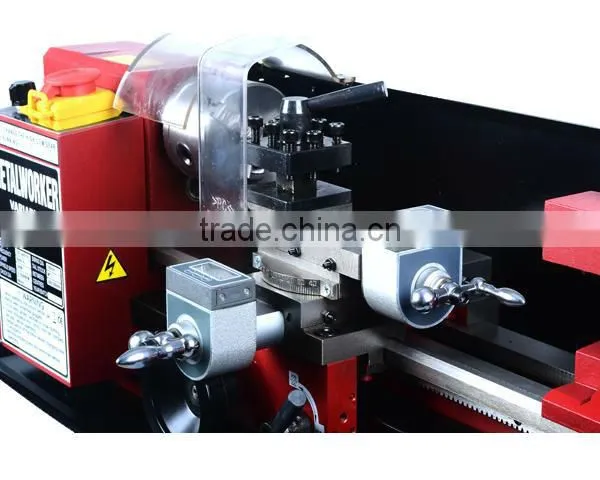

- • Fully featured saddle and carriage assembly including powered lead screw
- • 250W motor with variable speed and a 2 speed gearbox
- • Change wheel set providing thread cutting selections between 0.4-2.0mm & 12-52 tp
| Standard attachment |
| 80mm 3-jaw chuck |
| MT2 center |
| Change gear set |
| Wrench set |
| Oil can |
OPTIONAL ACCESSORIES
| Serial No. | Item Description |
| S/N:10000 | Stand |
| Overall demension: | |
| 800*350*890mm | |
| S/N:10000A | Lux stand |
| Overall demension: | |
| 1000*660*710mm | |
| S/N:10001 | Knob & hand wheel |
| S/N:10002 | Metric 9 pcs |
| 30T/35T/40T | |
| 40T/45T/50T | |
| 60T/80T/80T | |
| S/N:10003 | Imperial 13 pcs |
| 30T/35T/40T/40T | |
| 45T/45T/50T/55T | |
| 57T/60T/65T/80T/80T | |
| S/N:10004 | Cutter 5 pieces set |
| DIN 4971R Straight cutter | |
| DIN 4975 Tip cutter | |
| DIN 4980R Right angle cutter | |
| DIN 4980L Left angle cutter | |
| DIN 4981R Cutter | |
| S/N:10005 | Cutter 11 pieces set |
| DIN 4971R Straight cutter | |
| DIN 4972R Angle cutter | |
| DIN 4973R Bore cutter | |
| DIN 4974R Bore cutter | |
| DIN 4975 Tip cutter | |
| DIN 4976 Wide edge cutter | |
| DIN 4977R Right external turning cutter | |
| DIN 4978R External turning cutter | |
| DIN 4980L Left angle cutter | |
| DIN 4980R Right angle cutter | |
| DIN 4981R Cutter | |
| S/N:10006 | Cutter 6 pieces set |
| DIN 4972R Angle cutter | |
| DIN 4973R Bore cutter | |
| DIN 4974R Bore cutter | |
| DIN 4976R Wide edge cutter | |
| DIN 4977R Right external turning cutter | |
| DIN 4978R External turning cutter | |
| S/N:10007 | Face plate 160mm |
| Bolt size 12mm | |
| S/N:10007A | Clamping kit for face plate |
| Bolt size 8mm | |
| S/N:10008 | Steady rest |
| S/N:10009 | Follow rest |
| S/N:10010 | 80mm 4-jaw chuck |
| S/N:10011 | Quick change cutter rest |
| S/N:10011-1 | Tool post |
| /N:10011-2 | Cutter holder |
| S/N:10012 | Tailstock chuck |
| Dia.13mm+MT#2 | |
| S/N:10013 | Spindle center |
| MT#3 | |
| S/N:10014 | Rolling center |
| MT#2 | |
| S/N:10015 | Lathe dog |
| S/N:10016 | Cutter 2 pieces set |
| S/N:10029A | 100mm 4-jaw chuck with flange |
| S/N:10061 | Vertical slider |
| Slot size 50mm | |
| S/N:10062 | Digital spindle speed readout |
| S/N:10064 | Wood toolrest with center |
| MT#3 | |
| S/N:10100 | 100mm 3-jaw chuck |
| S/N:10100A | 100mm 3-jaw chuck whe flange |
| S/N:10130 | Knurling tool holder |
| S/N:10131 | Grinding attachment |
| S/N:10136 | Rocker tool post |
| S/N:10140 | DRCD kit |
| S/N:10147 | Rolling tailstock chuck |
| Dia.13mm+MT#2 | |
| S/N:10148 | Mill chuck set(metric) |
| chuck dia.4,6,8,10,12,14,16mm | |
| S/N:10182 | Carriage stop |
| S/N:10200 | Cutting set 8mm(Tin Coated) |
| DIN 4977R Right external turning cutter | |
| DIN 4980L left cutter | |
| DIN 4980R Right cutter | |
| DIN 4975R Thread cutter | |
| DIN 4981R Cutter | |
| S/N:10200-1 | Tip replacement set |
