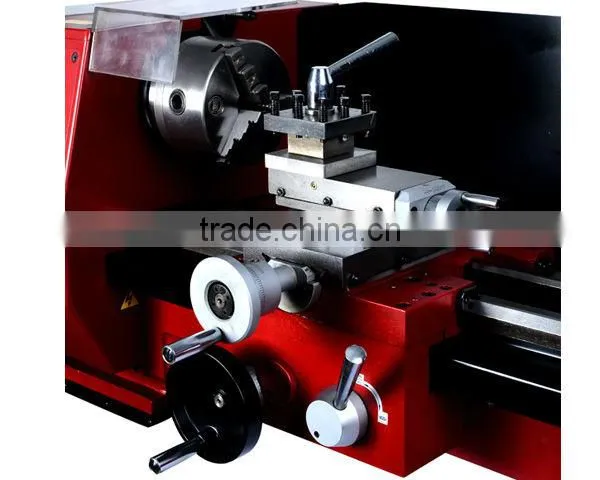

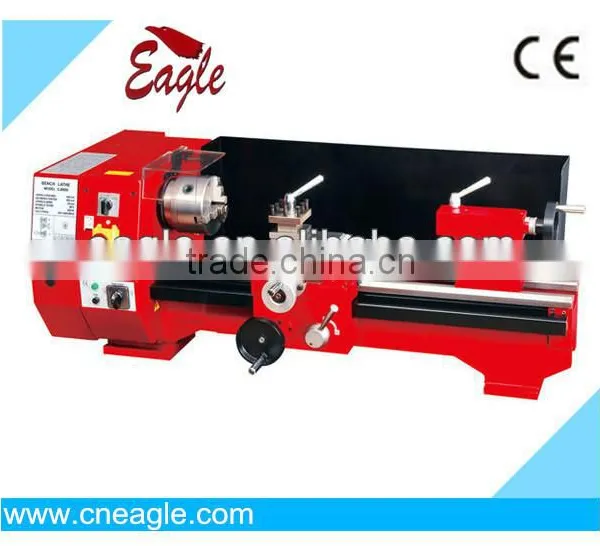

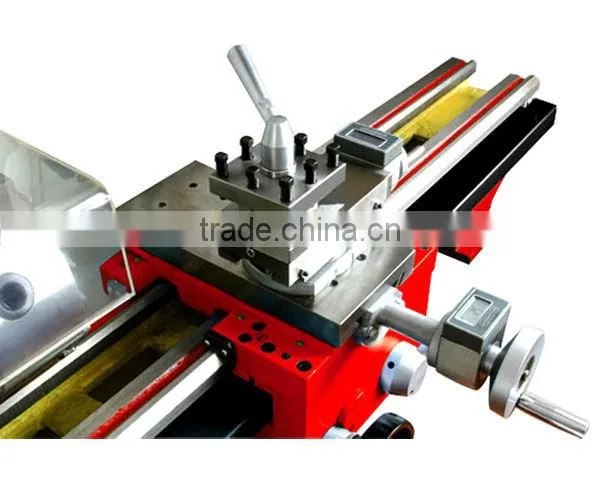

Bench Lathe

Bench Lathe thumbnail-1
Bench Lathe photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Automatic
Max. Swing Diameter 250mm
Place of Origin Shandong, China
Brand Name Eagle
Model Number BL250
Voltage 220V
Power(W) 550W
Dimension(L*W*H) 1170*640*580mm
Weight 145/180kg
After-sales Service Provided No overseas service provided

Specifications

Near silent running
Integral splash guard
Metric and Imperial thread cutting

Bench Lathe

Specifications





Swing over bed   250mm
Distance between centers Model 400 400mm
  Model 550 550mm
Hole through spindle   20mm
Spindle taper   MT3
Tailstock taper   MT2
Cross slide travel   110mm
Compound travel   75mm
Range of thread Metric version 0.4-3.0mm(12 threads pitches)
  Imperial version 10-44TPI(8 threads pitches
Motor output power   550W
Spindle speed(6 steps)   125-2000 rpm
Overall dimension(L×W×H) Model 400 1040×600×450mm
  Model 550 1140×600×450mm
Packing size(L×W×H) Model 400 1070×640×580mm
  Model 550 1170×640×580mm
Weight (Net/Gross) Model 400 125/160kg
  Model 550 145/180kg
Model Model 400 BL250-400
  Model 550 BL250-550
Item Number Model 400 100117
  Model 550 100118







Standard attachment
125mm 3-jaw chuck
MT2 center
Change gear set
Wrench set
Oil can





Key Feature

  • • Near silent running
  • • Integral splash guard
  • • Metric and Imperial thread cutting
  • • Full range of accessories available
  • • Converts to a multi-purpose machine with the milling attachme
  • • Medium capacity, high quality lathe suitable for workshop or school use

Optional Accessories



Serial No. Item Description
S/N:10017 Stand for Model 400
S/N:10018 Stand for Model 550
Overall demension: 1060*440*850mm
S/N:10019 Steady rest
S/N:10020 Follow rest
S/N:10022 Cutter 11 pieces set
DIN 4971R Straight cutter
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4975 Tip cutter
DIN 4976 Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
DIN 4980L Left angle cutter
DIN 4980R Right angle cutter
DIN 4981R Cutter
S/N:10023 Face plate 220mm
S/N:10023A Clamping kit for face plate
S/N:10024 Rolling center MT#2
S/N:10025 4-jaw chuck 125mm
S/N:10025A 4-jaw chuck 125mm with flange
S/N:10026 Quick change cutter rest
S/N:10027 Tailstock chuck
Dia.13mm+MT#2
S/N:10060 Vertical slider
Slot size 50mm
S/N:10063 Wood toolrest with center
S/N:10131B Grinding attachment
Spindle speed  0-6000±10%rpm
Wheel size  80*20*10mm
Motor output power  250W
Net/Gross weight   4/5kg
 S/N:10131-1  Wheel replacement
S/N:10149 Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm
S/N:10149A Mill chuck set(Imperial)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm
S/N:10151 DRCD kit
S/N:10198 Lux cutter set with box 10x10 mm
DIN 4971R Straight cutter
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4975 Tip cutter
DIN 4976 Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
DIN 4980L Left angle cutter
DIN 4980R Right angle cutter
DIN 4981R Cutter
S/N:10201 Cutting set 10mm(Tin Coated)
DIN 4977R Right external turning cutter
DIN 4980L left cutter
DIN 4980R Right cutter
DIN 4975R Thread cutter
DIN 4981R Cutter
S/N:10201-1 Tip replacement
