Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Bench Lathe

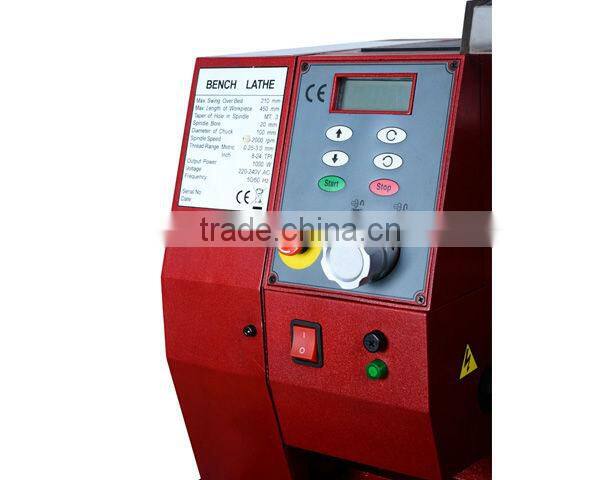

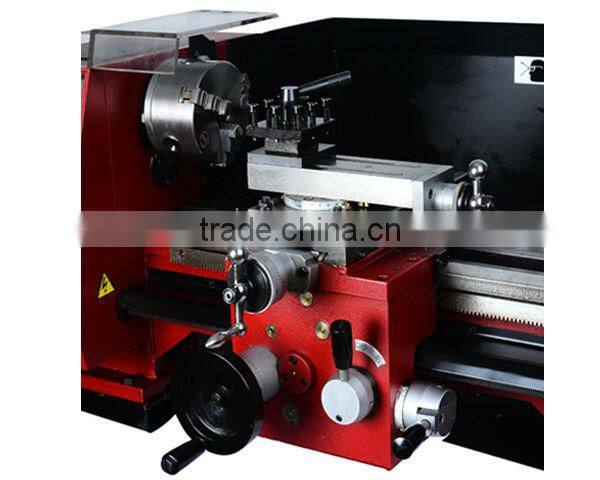

Bench Lathe

Name: Bench Lathe
Brand: Eagle
SKU: 140923872
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Automatic

Max. Swing Diameter 210mm

Place of Origin Shandong, China

Brand Name Eagle

Model Number SBL210

Voltage 220V

Power(W) 1000W

Dimension(L*W*H) 1060*710*510mm

Weight 90/117kg

After-sales Service Provided No overseas service provided

Specifications

1000W high torque, brushless motor
Near silent running

Bench Lathe

Specifications

Swing over bed	210 mm
Distance between centers Model 410	410 mm
Model 510	510 mm
Hole through spindle	20 mm
Spindle taper	MT3
Tailstock taper	MT2
Spindle speed (variable speed)	150-2000 ±10% rpm
Compound travel	70 mm
Cross slide travel	100 mm
Motor output power	1000 W
Thread of range Metric	0.25-3.0 mm (17 Threads pitches)
Imperial	8-24 TPI (10 Threads pitches)
Overall dimension (LxWxH)	910x630x400 mm
Packing Size (LxWxH)	1060x710x510 mm
Weight (Net/Gross)	90/117kg
Model	SBL210-410 / 510
Item Number	100115 / 100116

Standard attachment

100mm 3-jaw chuck

MT2 center

Change gear set

Wrench set

Oil can

Key Feature

• 1000W high torque, brushless motor
• Near silent running
• Integral splash guard
• Metric and imperial thread cutting
• Electronic variable spindle speeds
• Full range of accessories available

Optional Accessories

Serial No.	Item Description
S/N:10022	Cutter 11 pieces set
	DIN 4971R Straight cutter
	DIN 4972R Angle cutter
	DIN 4973R Bore cutter
	DIN 4974R Bore cutter
	DIN 4975 Tip cutter
	DIN 4976 Wide edge cutter
	DIN 4977R Right external turning cutter
	DIN 4978R External turning cutter
	DIN 4980L Left angle cutter
	DIN 4980R Right angle cutter
	DIN 4981R Cutter
S/N:10024	Rolling center MT#2
S/N:10027	Tailstock chuck 13mm Dia.13mm+MT#2
S/N:10029	100mm 4-jaw chuck
S/N:10131A	Grinding attachment
	Spindle speed 0-6000±10%rpm
	Wheel size 802010mm
	Motor output power 250W
	Net/Gross weight 4/5kg
S/N:10131-1	Wheel replacement
S/N:10160	Steady rest
S/N:10161	Follow rest
S/N:10162	Face plate
	Slot size 12mm
	180mm
S/N:10162A	Clamping kit for face plate
S/N:10162A	Bolt size 12mm
S/N:10164	Stand
S/N:10164	Overall demension: 950450830mm
S/N:10065	Digital readout for cutting depth kit
S/N:10167	Mill chuck set(metric)
S/N:10167	Chuck dia. 4, 6, 8, 10, 12, 14, 16mm
S/N:10167A	Mill chuck set(Imperial)
S/N:10167A	Chuck dia. 4, 6, 8, 10, 12, 14, 16mm
S/N:10168	Quick change cutter rest
S/N:10168	Quick change cutter rest
S/N:10198	Lux cutting set 10*10mm 11pcs
	DIN 4971R Straight cutter
	DIN 4972R Angle cutter
	DIN 4973R Bore cutter
	DIN 4974R Bore cutter
	DIN 4975 Tip cutter
	DIN 4976 Wide edge cutter
	DIN 4977R Right external turning cutter
	DIN 4978R External turning cutter
	DIN 4980L Left angle cutter
	DIN 4980R Right angle cutter
	DIN 4981R Cutter
S/N:10201	Cutting set 10mm(Tin Coated)
S/N:10201-1	Tip replacement (set)
