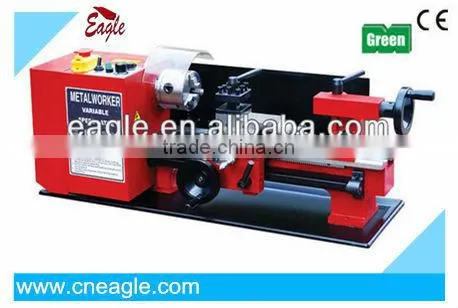

Mini Lathe

Eagle Industries, Ltd.
Mini Lathe thumbnail-1
Mini Lathe photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Mini lathe
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Mini lathe
CNC or Not Normal
Automatic Grade Automatic
Max. Swing Diameter 180mm
Place of Origin Shandong, China
Brand Name Eagle
Model Number SML180
Voltage 220V
Power(W) 500W
Dimension(L*W*H) 900*420*390mm
Weight 50/55kg
After-sales Service Provided No overseas service provided

Specifications

Constructed with cast iron giving great rigidity
Precision Vee bed with ground slide ways
High torque brushless DC 500W

Mini Lathe

Specifications



Swing over bed180 mm
Distance between centers  Model 300300 mm
                                             Model 350350 mm
Hole through spindle20 mm
Cross slide travel65 mm
Compound travel 55 mm
Spindle taperMT3
Tailstock taperMT2
Spindle speed (variable speed)100-2500 ±10% rpm
Motor output power(Brushless motor)500 W
Range of threads  Metric version0.4-2.0 mm (10 thread pitches)
                                Imperial version12-52 TPI (18 thread pitches)
Overall dimension         Model 300720x300x290 mm
                                         Model 350800x290x290 mm
Weight(Net/Gross)       Model 30044/51 kg
                                         Model 35050/55 kg
Packing size (LxWxH)  Model 300780x420x390 mm
                                         Model 350870x360x380 mm
ModelSML180-300/350mm
Item Number100108/100109













Standard attachment
80mm 3-jaw chuck
MT2 center
Change gear set
Wrench set
Oil can



Features
Upgraded version fo C2
Brushless Motor
Greater Durability
Higher Efficiency
Mainernance-free





 KEY FEATURE

  • • Constructed with cast iron giving great rigidity
  • • Precision Vee bed with ground slide ways
  • • High torque brushless DC 500W motor
  • • Fully featured saddle and carriage assembly including powered lead screw
  • • Supplied with, 80mm 3 jaw chuck,, 2MT centre, change wheel set, wrench set





OPTIONAL ACCESSORIES





S/N:10005Cutter 11 pieces set
DIN 4971R Straight cutter
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4975 Tip cutter
DIN 4976 Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
DIN 4980L Left angle cutter
DIN 4980R Right angle cutter
DIN 4981R Cutter
S/N:10006Cutter 6 pieces set
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4976R Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
S/N:10004Cutter 5 pieces set
DIN 4971R Straight cutter
DIN 4975 Tip cutter
DIN 4980R Right angle cutter
DIN 4980L Left angle cutter
DIN 4981R Cutter
S/N:10011Quick change cutter rest
S/N:10011-1Tool post
S/N:10011-2Cutter holder
S/N:10016Cutter 2 pieces set
S/N:10016-1Cutter 2 pieces set
S/N:10016-2Cutter 2 pieces set
S/N:10200Cutting set 8mm(Tin Coated)
DIN 4977R Right external turning cutter
DIN 4980L left cutter
DIN 4980R Right cutter
DIN 4975R Thread cutter
DIN 4981R Cutter
S/N:10200-1Tip replacement set
S/N:10145Cut-off tool
S/N:10012Tailstock chuck
Dia.13mm+MT#2
S/N:10030Digital spindle speed readout
S/N:10148Mill chuck set(metric)
chuck dia.4,6,8,10,12,14,16mm
S/N:10130Knurling tool holder
S/N:10136Rocker tool post
S/N:10064Wood toolrest with center
MT#3
S/N:10136Digital spindle speed readout





No more high/low gear trouble free
