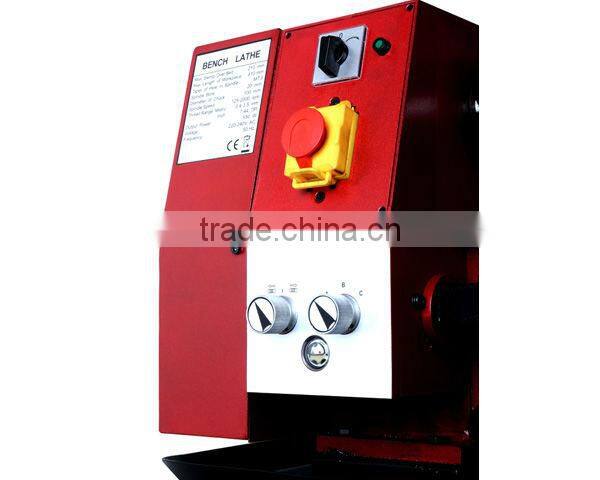

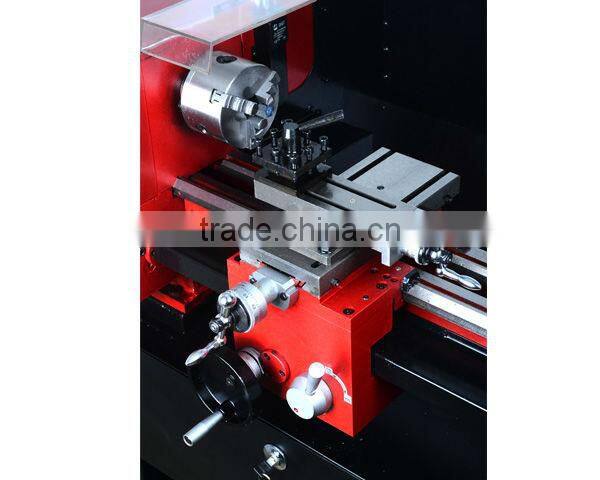

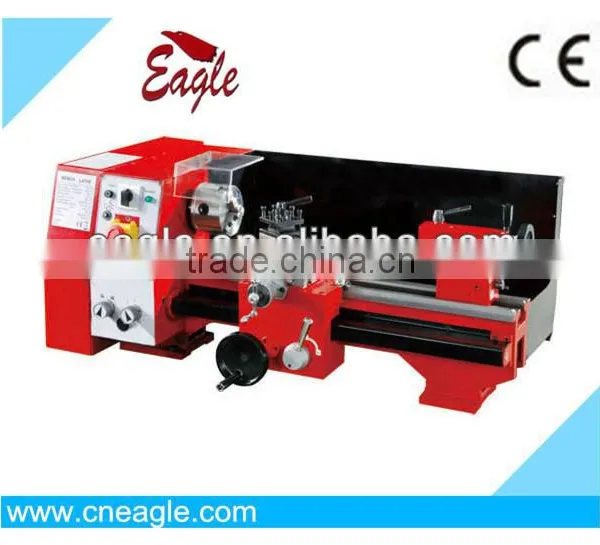

Bench Lathe

Eagle Industries, Ltd.
Bench Lathe thumbnail-1
Bench Lathe photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Automatic
Max. Swing Diameter 410mm
Place of Origin Shandong, China
Brand Name Eagle
Model Number BL210B
Voltage 220V
Power(W) 550W
Dimension(L*W*H) 1070*730*570mm
Weight 109/136kg
After-sales Service Provided No overseas service provided

Specifications

Powered X and Y axis
Metric and imperial thread cutting abilities

Bench Lathe

Specifications





Swing over bed210mm
Distance between center  Model 410410mm
                                               Model 510510mm
Hole through spindle20mm
Spindle taperMT3
Spindle speed (6 steps)100-2000 rpm
Tailstock taperMT2
Thread of range  Metric version 0.4-3.5 mm  (15 Threads pitches)
                            Imperial version  7-44 TPI  (12 Threads pitches)
Cross slide travel100mm
compound travel70mm
Motor output power550W
Weight (Net/Gross)    94/121kg
Packing size(L×W×H) 1070×730×570mm
ModelBL210B-410 / 510
Item Number100113 / 100114







Standard attachment
100mm 3-jaw chuck
MT2 center
Change gear set
Wrench set
Oil can





Key Feature

  • • Powered X and Y axis
  • • Metric and imperial thread cutting abilities
  • • Thread pitch selected from a gearbox
  • • Integral splash guard
  • • 6 ratio stepped pulley spindle speeds
  • • Full range of accessories available

Optional Accessories





Serial No.Item Description
S/N:10022Cutter 11 pieces set
DIN 4971R Straight cutter
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4975 Tip cutter
DIN 4976 Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
DIN 4980L Left angle cutter
DIN 4980R Right angle cutter
DIN 4981R Cutter
S/N:10024Rolling center MT#2
S/N:10027Tailstock chuck 13mm Dia.13mm+MT#2
S/N:10029100mm 4-jaw chuck
S/N:10131AGrinding attachment
Spindle speed  0-6000±10%rpm
Wheel size  80*20*10mm
Motor output power  250W
Net/Gross weight   4/5kg
S/N:10131-1Wheel replacement
S/N:10160Steady rest
S/N:10161Follow rest
S/N:10162Face plate
Slot size 12mm
180mm
S/N:10162AClamping kit for face plate
Bolt size 12mm
S/N:10164Stand
Overall demension: 950*450*830mm
S/N:10065Digital readout for cutting depth kit
S/N:10167Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm
S/N:10167AMill chuck set(Imperial)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm
S/N:10168Quick change cutter rest
S/N:10198Lux cutting set 10*10mm 11pcs
DIN 4971R Straight cutter
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4975 Tip cutter
DIN 4976 Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
DIN 4980L Left angle cutter
DIN 4980R Right angle cutter
DIN 4981R Cutter
S/N:10201Cutting set 10mm(Tin Coated)
S/N:10201-1Tip replacement (set)





 Bench LatheBench Lathe
