High Quality Air Leg Pneumatic Rock Drill 7655

Jining Bafang Mining Machinery Co., Ltd.
High Quality Air Leg Pneumatic Rock Drill 7655 thumbnail-1
High Quality Air Leg Pneumatic Rock Drill 7655 thumbnail-2

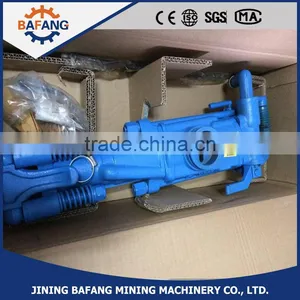

High Quality Air Leg Pneumatic Rock Drill 7655 thumbnail-3
High Quality Air Leg Pneumatic Rock Drill 7655 photo-1
High Quality Air Leg Pneumatic Rock Drill 7655 photo-2

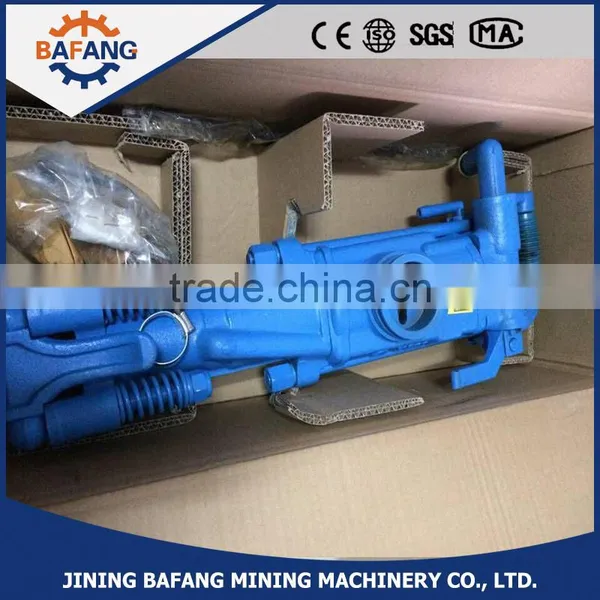

High Quality Air Leg Pneumatic Rock Drill 7655 photo-3
US$ 200 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Other, pneumatic
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Other, pneumatic
Place of Origin Shandong, China
Brand Name Bafang
Model Number 7655 rock drill
Usage Coal
Weight 24kg
Certification ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

High quality air leg pneumatic rock drill 7655

High quality air leg pneumatic rock drill 7655

The rock drill YT23(7655) is a kind of high efficiency hand hold rock drill machinery. It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defense project facility.It is suitable for drilling and blasting under various of rocks at any direction angles. Blast hole diameter is 34-42 mm, drill hole depth is 5 m.

 Features of pneumatic rock drill 7655:

1. Easily-accessible position throttle

2. Integral muffler,lower noise

3. It accepts heavy duty bits

4. Reliable structure,easy and stable operation

5. Drill diam. can be from 32mm-60mm.

6. Hand-held and air legs rock drill accessible.

7. Provide the ultimate combination of performance and economy.

8. Smart,and durable.

Specifications of pneumatic rock drill 7655:



pneumatic rock drill YT23(7655)

Model

YT23(7655)

Weight

24kg

Length

628mm

Cylinder diam.

76mm

Piston stroke

60mm

Working pressure

0.5-0.6Mpa

Impact energy

≥60.2 (J)

Impact frequency

≥36Hz

Air consumption

≤80L/s

Working water pressure

0.2~0.3 (Mpa)

Air pipe inner diam.

25 (mm)

Water pipe inner diam.

13 (mm)

Rock drill hole diam.

34~42 (mm)

Rock drill hole depth

5 (m)

Shank size

22*108 (mm)

Oiler FY200A

Tank

200ml

Weight

1.2kg

Optional for Air leg:

Air Leg FT160A &FT160B

Model No.

FT160A

FT160B

Weight

17kg

16kg

Max. Length of air leg

3006mm

2526mm

Min. Length of air leg

1668mm

1428mm

Push length

1338mm

1098mm

The maximum axial thrust

2000N

2000N





High quality air leg pneumatic rock drill 7655



High quality air leg pneumatic rock drill 7655High quality air leg pneumatic rock drill 7655





High quality air leg pneumatic rock drill 7655

High quality air leg pneumatic rock drill 7655High quality air leg pneumatic rock drill 7655High quality air leg pneumatic rock drill 7655High quality air leg pneumatic rock drill 7655High quality air leg pneumatic rock drill 7655

 High quality air leg pneumatic rock drill 7655
