KHYD mine explosion proof electric rock drill/ electric rock rotary drill
- 8000 Piece / Pieces per Month
- Qingdao Ningbo
- Credit Card
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Electric | Place of Origin | Shandong, China | |
| Brand Name | Bafang | Model Number | KHYD40 | |
| Usage | Coal | Voltage | 380V | |
| Power(W) | 2kw | Dimension(L*W*H) | 570*360*300mm | |
| Weight | 42kg | Certification | ISO9001 | |
| Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

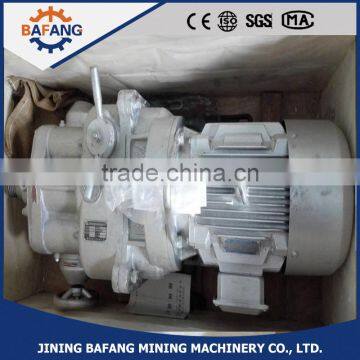

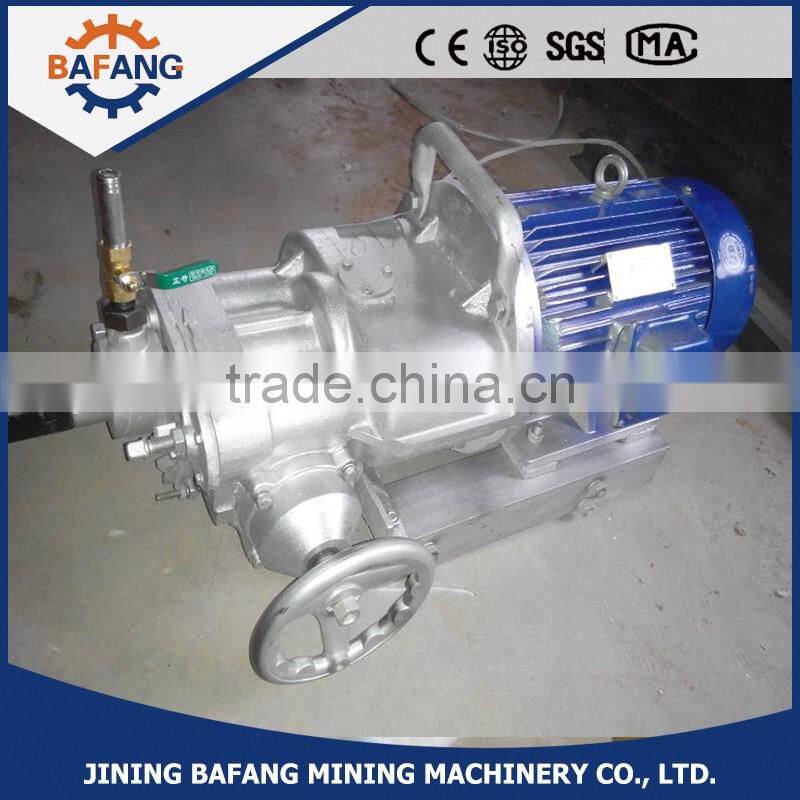

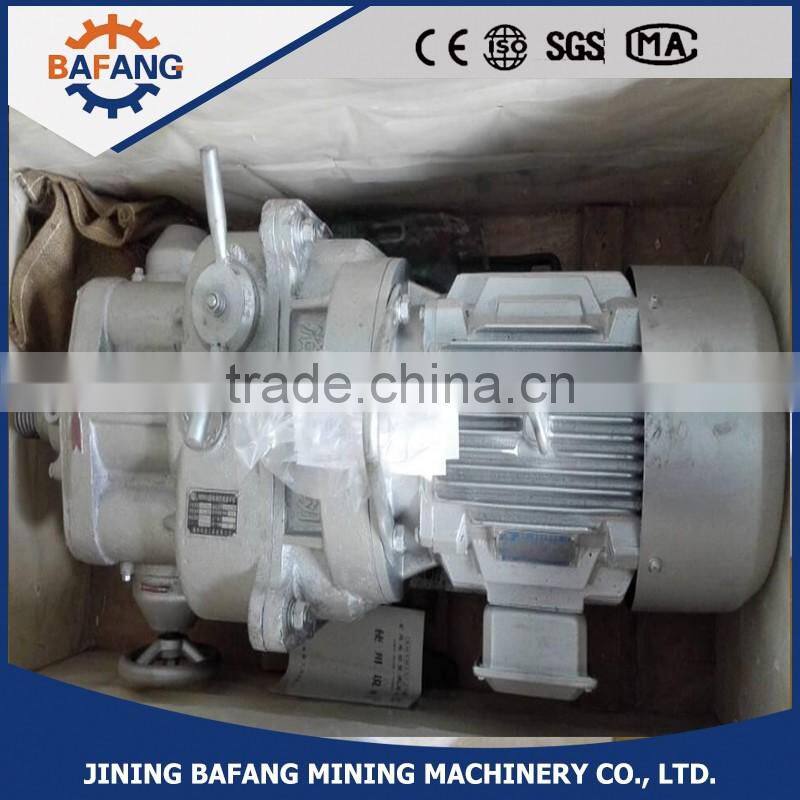

KHYD mine explosion proof electric rock drill/ electric rock rotary drill
1.KHYD explosion proof electric rock drill Appliance:
1.Be used for drilling burst mine hole in rock
2.Be able to do wet type and dry type work
3.Be easy to move, easy to operate
2. KHYD explosion proof electric rock drill Feature:
1.Electric rock drill is used for drilling burst mine hole in rock.
2. It is widely used in the mine shaft excavation, road construction, water conservancy construction, metallurgy mining, rock engineering, quarry operation, basic engineering drilling reinforcement construction process.
3.The explosion-proof electric rock drill is used for drilling water injection hole, on coal seam, exploring water holes and discharging gas, also can be used for soft rock tunnel excavation.

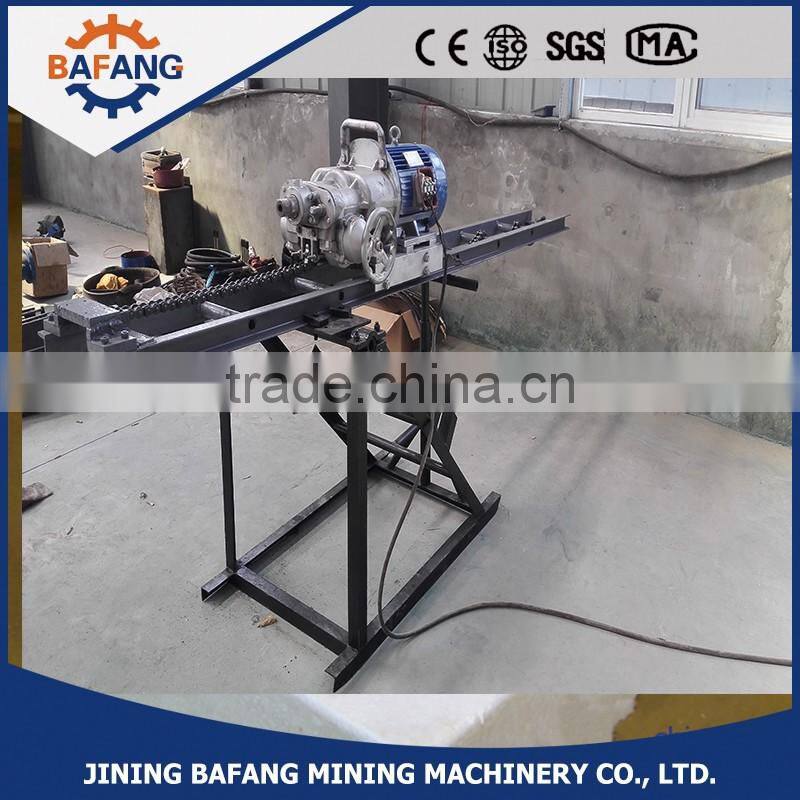

4.they can do wet type and dry type work (equipped with twist drill rod). Drills holes horizontally forward or tilt up, only need to control the handwheel, the drill will track forward and backward automatically on the railway.
Product Parameter:
Model | Drilling dia. for rock | Drilling dia. for mine | Drilling depth for rock | Drilling depth for mine | Spindle speed | Power | weight |
KHYD40 | 42mm | 45-60mm | 5m | 20-60m | 2814 r/min | 2kw | 40kg |
KHYD75 | 42mm | 45-80mm | 10m | 30-80m | 1420 r/min | 3kw | 75kg |
KHYD140 | 42-80mm | 80-100mm | 20m | 30-80m | 1440 r/min | 5.5kw | 140kg |
KHYD150 | 42-80mm | 80-120mm | 25m | 40-100m | 1440 r/min | 7.5kw | 150kg |
accessories:35#/42# round dril rod / Twist drill rod alloy bit and slide | |||||||
