Specifications
Flexo Label printing machine1.Color firmness,wash durable,non-fading.
2.Printing color is bright,firm...
3.Easy operation

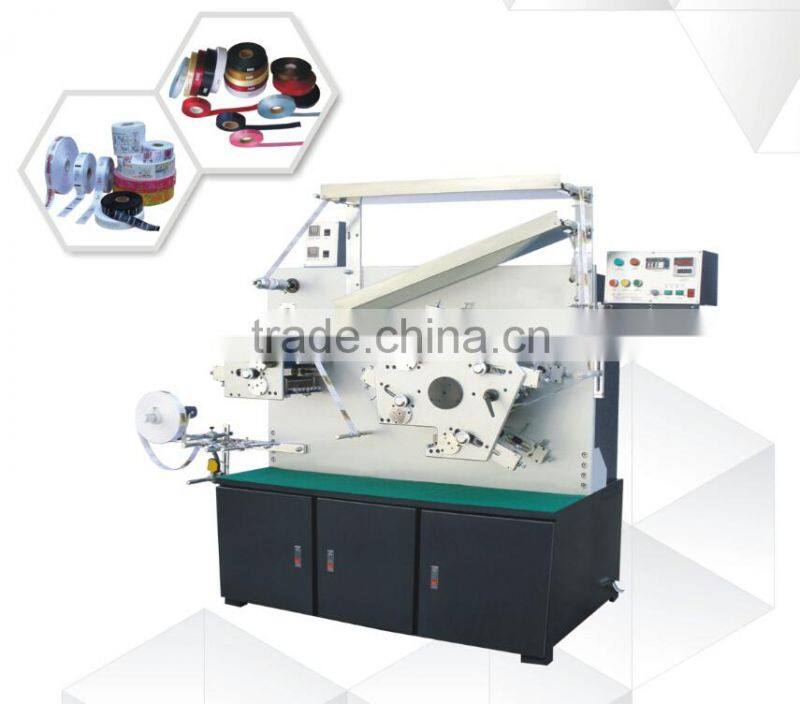

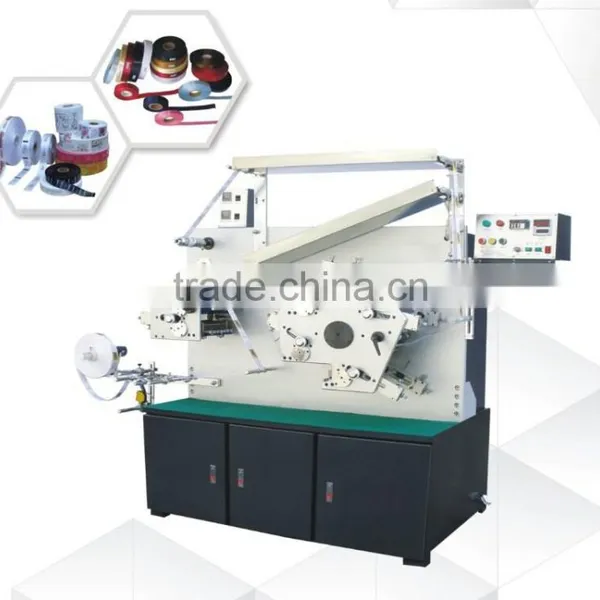

COR 42-S Flexo Label printing machine
Main technical variables:
Model |
COMHR21S |
COMHR31S |
COMHR42S |
COMHR62S |
Front side printing |
2 colors |
3 colors |
4 colors |
6 colors |
Back side printing |
1 color |
1 color |
2 colors |
2 colors |
Max. printing length |
300mm |
300mm |
300mm |
300mm |
Min. printing width |
106mm |
106mm |
106mm |
106mm |
Max. printing width |
150mm |
150mm |
150mm |
150mm |
Max. printing speed |
60m/min |
60m/min |
60m/min |
60m/min |
Feeder/re-winder capacity |
ø400m |
ø400m |
ø400m |
ø400m |
Power |
220v/2.4kw |
220v/2.4kw |
220v/2.4kw |
220v/2.4kw |
Weight |
400kgs |
500kgs |
600kgs |
800kgs |
Dimension |
220*800*1870mm |
2200*800*1870mm |
2400*800*1870mm |
2800*800*1870mm |
Characteristics:
The machine finishes the printing through the high precision mesh cylinder to convey
the in evenly to the printing cylinders which then directly print the ink by pressing on
the tape surface. After that they are dried through the drying system. Then the whole
printing is finished. It is the variety of printing cylinders for the user to exchange.
In this way, it changes the printing length, featuring accurate printing.
It can print 60 meters per hour. It can be the substitute for the mesh printing machine.
