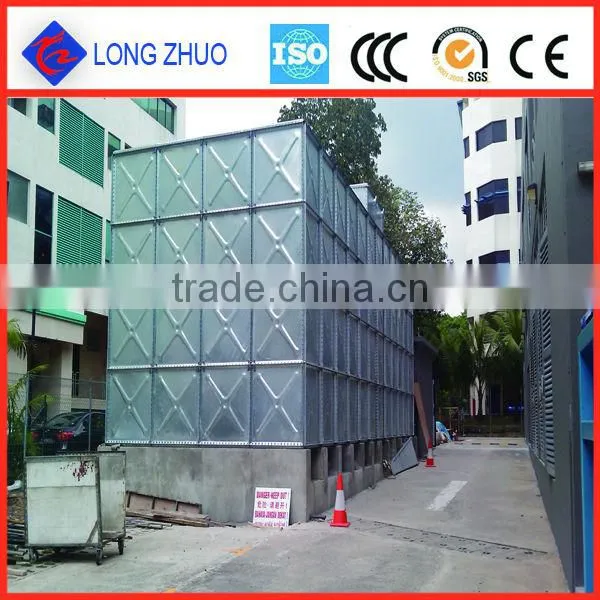

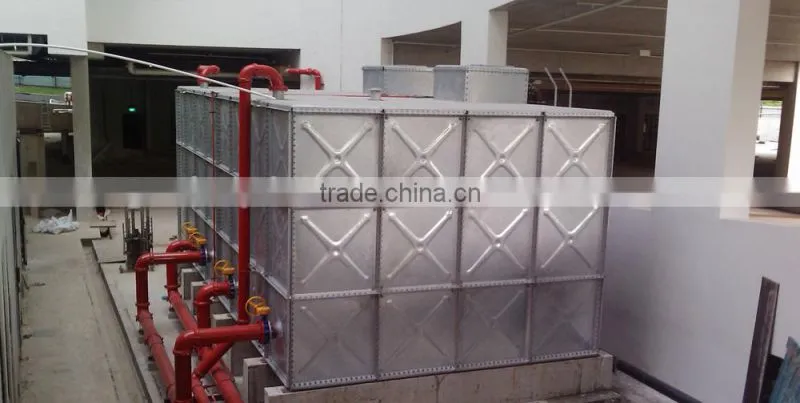

Galvanize steel water tank for water treatment/Pressed Galvanized Steel Water Tank
Product Introduction
The hot dipped galvanized steel water tank is manufactured new type water tank.
The manufacture and the installment of tank have no influence of the construction.
There are not needed the welding apparatus, the surface is hot dipped galvanize antiseptic treatment.
It’s artistic durable, prevents two timespollution to water quality and it beneficial to human health.
The water tank meets the construction product standardization, the serration and the factorization request.
Product Detail
1 Size:
Long Zhuo Brand sectional water tanks are fabricated in 2 different measurements namely imperial and metric.
We provide panels in 1,220 mm x 1,220 mm for imperial and 1,000 mm x 1,000 mm for metricmeasurements.
For tanks of non standard measurements required, we do provide ribbed panels in any size,
this is to facilitate the planning and design of water storage system.
Needless to say, it would ease the problems of awkward space constrained location with water stored to maximum.
2 Components:
Internal water tanks are reinforced with internal bracings made up of brackets and stays.
The whole tank is rigidly straightened with bolts and nuts.
The tank is sealed with Butyl Strip and Sealants that is non - toxic, odourless and will not impair in colour.
Struction:
Packaging and install:
Characteristic:
1- Easy to assemble.
2- Made of bottom, side and roof panels and panels with manhole.
3-Tank of different height uses different bottom panels, side panels and top panels strictly according to the assembling principle.
4-Assembling principle guarantees safety coefficient by reasonable saving of materials.
5-Supports system (tie system) is designed and verified by precise mechanical calculations and tests.
Veneer physical and chemical properties:
Project |
Performance index |
Tensile strength, Mpa |
≥60 |
Bending strength, Mpa |
≥100 |
Bending modulus, Gpa |
≥7.0 |
Pap hardness |
≥60 |
Bibulous rate,% |
≤1.0 |
Glass fiber content,% |
≥25 |
Performance:
Project |
Requirements |
Leakage |
No leakage after filled with water |
Full of water deformation |
Filled with water, wall maximum deformation after no more than 1.0% of the tank bottom center height, no more than 10 mm maximum deformation |
Water quality |
Accord with GB5740 |
Our Workshop:
