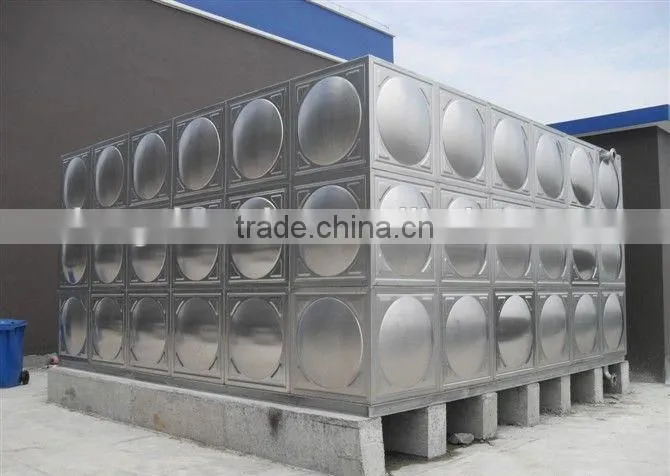

Help CenterChina Gold Supplier High Quality SMC Sheet for Water Tank/Electric Meter Box Complete Plant in Construction Industry
Related Products
-
Firefighting Water Tank Galvanize Water Tanks China MadeUS$ 350 - 500MOQ: 1 Set -
Large Volume Hot Dip Galvanized Steel Water TankUS$ 350 - 500MOQ: 1 Set
-
1220mm*1220mm Galvanize Steel Water Tank PanelsUS$ 350 - 500MOQ: 1 Set
-
1000mm*1000mm Hot-dip Galvanize Steel Panels With Stianless Steel AccessoriesUS$ 350 - 500MOQ: 1 Set
-
Composite Plate Assembly Galvanize Steel Water TanksUS$ 350 - 500MOQ: 1 Set
Specifications
1,Rotproofness
2,High strength, good sealing
3,In light weight
4,To prevent the secondary pollution of water quality
2. SMC Water Tank Features and structure
(1) Strong resistance to corrosion.
1. Support for Panels: The panels shall be supported externally or internally by an adequate support system. External Reinforcement - Hot Dipped Galvanized Steel
Internal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod
2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience
and technology on SMC products. It maintains soft itself and adhesives even at low temperatures
3. Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in
contact with water internally are hot dipped galvanized steel or stainless steel 304
4. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304
5. Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same
with the supports. The external ladders shall be galvanized mild steel or equivalent
6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The
concave drain panel has been designed to ensure the periodic cleaning and inspection of tank
7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter
8. Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of:
600 x 600mm. the opening can be designs of bolt, seal-tight locking arrangement
9. ABS roof vent with PE insect screen
10. Float level indicator, optional SS304 for internal and external support structure are available on request
Water tank size: Can be made as your reuqest.
Panel size: 1mx1m, 0.5mx0.5m, 1mx0.5m
Wall board thickness: 5mm,8mm,10mm,12mm,14mm,16mm etc.
4. SMC Water Tank Physical Properties
DESIGN PARAMETERS FOR SECTIONAL TANK | ||
Tensile Strength | ≥70MPa | |
Flexural Strength | ≥100MPa | |
bending modulus | ≥7.0GPa | |
Barcol Hardness | ≥60MPa | |
Water Absorption | ≤1.0% | |
Fiberglass content | ≥25 25% | |
Light transmission | Nil | |
Outdoor weathering(Natural sunlight) | Stabilized | |
Toxicity | Nil | |
Micro biological growth | Nil | |
- We usually use wooden pallet or container. Of couse if you have special request,we would consider seriously.
- We will delivery products 20 days once payment arrived.

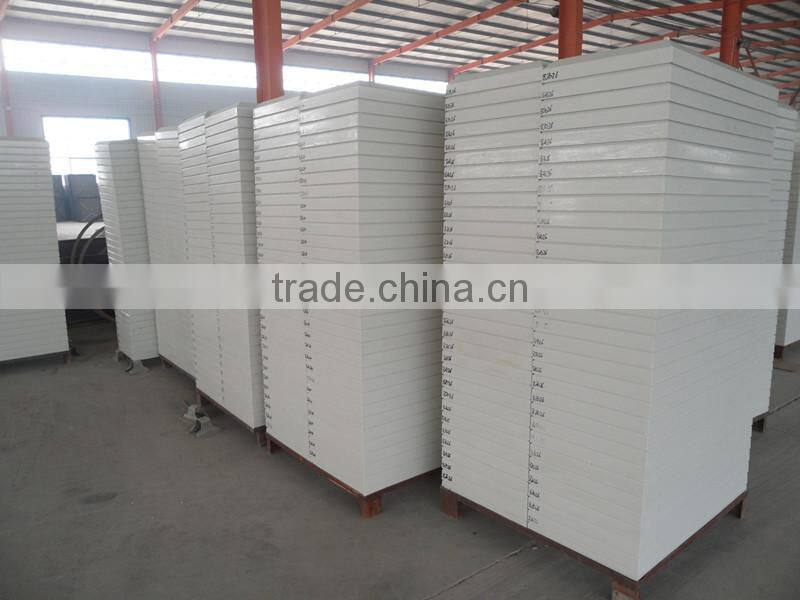

Our workshop
