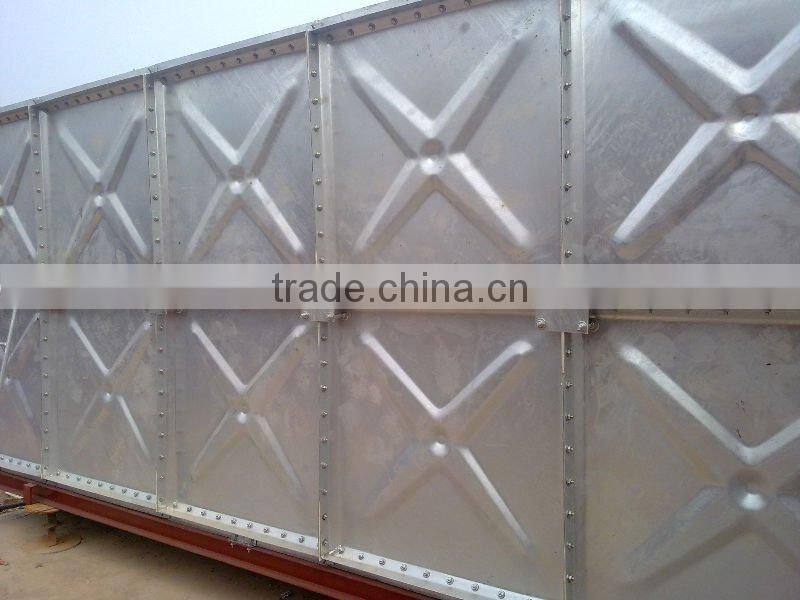

panel Type Water Tank
Introduction:
1. Material
The sectional panel tank shall consist of 4mmx 4mm or 1mm x 1mm panel manufactured from 1.5mm to 4.0mm thickness according to requirement.
2. Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
3. Reinforcement method
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water.
The Top panel is supported by top panel support, which shall be made of stainless steel grade 304 or 316 material according to requirement.
4. Accessories
1. Bolt nut & washers stainless steel 304 material.
2. Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
3. Covers the tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement.
4. Ladders and Level Indicator
Internal & external ladder shall be made of stainless steel grade 304 material.
Applications:
1. Industrial Water Treatment with multi-layer media
2. Water Softening Application
3. Centralized Filtration System for high rise residential and commercial buildings such as condominiums, high rise office building, hotels and resorts.
4. Aquaculture, fish farming and hatchery filtration system
5. Many other water filtration and treatment applications.
Specification:
Panel Thickness |
Base:2.5mm, Side 1: 2.5mm, Side 2: 2.3 mm, Cover: 2.0mm |
|
Panel Type |
1000mm*1000mm |
|
Manway |
600mm,Rounded |
1 |
Vent |
Customized design |
1 |
Inlet |
Customized design |
1 |
Outlet |
Customized design |
1 |
Overflow |
Customized design |
1 |
Drain |
Customized design |
1 |
Boltnut |
35mm*10mm |
|
Bracing |
20mm |
|
Ladder Inside |
2000mm*400mm |
1 |
Ladder Outside |
2300mm*400mm |
1 |
Contents Gauge |
Yes |
1 |

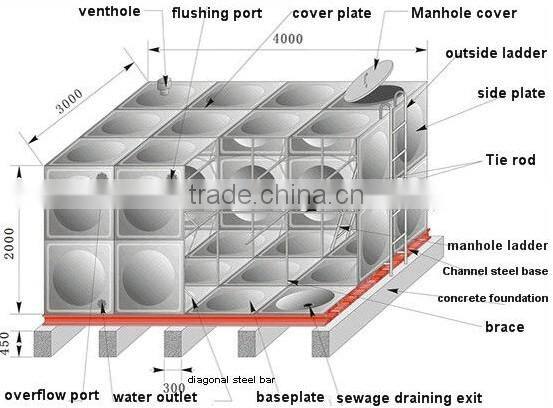

Struction:
Our Maket:
OUr Company:
