Electric Shuttle Bus With Trailer, 29 Persons, CE Approved

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Electric Shuttle Bus With Trailer, 29 Persons, CE Approved thumbnail-1
Electric Shuttle Bus With Trailer, 29 Persons, CE Approved photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Power:
Electric
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Power Electric
Place of Origin Jiangsu, China
Brand Name Eagle
Model Number EG6158T with EG6158T trailer

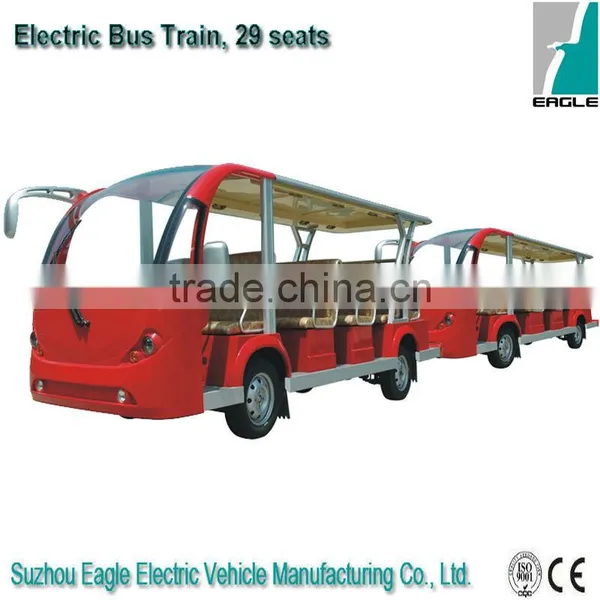

Electric shuttle bus with trailer, 29 persons, CE approved

Product Description



ModelEG6158T+EG6158T trailerEG6158T+EG6158T trailer 02
System72V/6.3KW Series72V/7.5KW AC system
Key Components
Battery24xT105(185Ah@5hr rate), 2 groups24xT105(185Ah@5hr rate), 2 groups
Motor6.3KW Chinese motor7.5KW Chinese motor
ControllerCurtis 1209 (400A@2minutes)Zapi AC2(400A@2minute)
Performance
Passenger capacity14+1514+15
Range (loaded) based on flat road at a speed of 20km/h (km)*>75>75
Max. speed4040
Minimum turning radius (m)99
Max. climbing ability (loaded) 10%10%
Max. movement after brake at speed of 20km/h≤N/A≤N/A
Max. loading weight2320kgs2320kgs
Net weight2430kgs2430kgs
Dimensions
Overall dimensions (mm)2pcs, 5000x1490x2050
Min. ground clearance (mm)135
Wheelbase (mm) front tractor2710
Front wheel tread (mm)1222
Rear wheel tread (mm)1185
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration)
Body and Frame
FrameWelded steel framework with sand blasting+paint treatment
BodyFibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body)
Standing board handrailSteel with paint
Stainless Steel
RoofFibreglass+aluminum frame, with roof handle
WindshieldLaminated glass
2point seat belt20pcs
2point seat belt29pcs
Overshadowing Curtain
EnclosurePVC
Large Seats:
     1) backrest and cushionSponge + artificial leather
     2) armrestAluminum
New seatBackrest and seat cushion be separated
FloorBamboo + artificial leather
Cup drinker holder1pc
Inner rear view mirrorOne piece per cart in the middle of the windshield, just in the front tractor
Side rear view mirrorTwo pieces per cart
Coin box
Battery watering system,72V systemwithout water supply tool
Manual Pumpwater supply tool (other water supply tools are available)
Electric system
Lighting system and hornFront: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light),with DC-DC converter (converting from 48V to 12V) , horn.
License plate light12V
DashboardVoltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch; Headlight switch, turn signal switch, wiper switch, horn button;
Audio SystemRadio and MP3 receiver
CD player to replace MP3 receiver
MicrophoneWired
Wiredless
Speaker4pcs
Reversing alarm
Switch assemblyLights switch, horn switch, wiper switch
Wiper12V
with water sprayer
Solar panel2pcs, 72V/270W
Emergency power-off button
ChargerChina origin, input 110V-240V~50Hz-60Hz, output 48V, 25A
Steering and Suspension
Steering systemSingle-stage rack and pinion steering system, automatic rocker compensating function
Right hand drive system
Electrical power steering
Brake systemFour wheel hydraulic drum brake+hand parking brake
Transmission systemClutch, 5F+1R gear box, transmission shaft
Front suspensionIndependent suspension, helix spring + shock absorber
Rear suspensionrear plate spring + shock absorber
Wheel & Tyre4J*12 Steel wheel, wheel cap, 155R12,8PR
4J*12 Aluminum wheel,

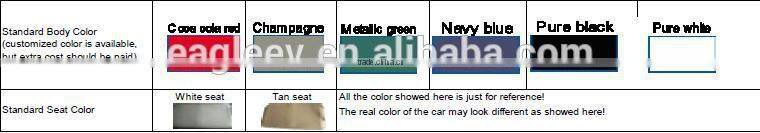

Color

 Electric shuttle bus with trailer, 29 persons, CE approved



Packaging & Shipping

 Electric shuttle bus with trailer, 29 persons, CE approved



Company Information

 Electric shuttle bus with trailer, 29 persons, CE approved



Certifications

 Electric shuttle bus with trailer, 29 persons, CE approved



After-Sales Service



All electric golf carts sold by us are quality guaranteed.

We provide 13 months warranty to our electric vehicles from the shipping date.
