China New Minivan And Production Lines Technology Guide Service Quality Choice
US$ 4,419 - 6,999
MOQ: 1 Unit
Key Specifications
Get Latest Price
Power:
Other, Gasoline/Petrol, 44 kw / 60 PS
Place of Origin:
Chongqing, China
Brand Name:
Jinbei
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Roof Mounted Air Conditioner Ice Cream Van for SaleUS$ 4,999 - 5,499MOQ: 3 Units -
2013 8 Seats Europe IV Standard Passenger-cargo Dual-purpose Mini VanUS$ 9,900 - 11,000MOQ: 3 Units
-
7 Seats Mobile Food Refrigeration Mini VanUS$ 4,999 - 5,499MOQ: 3 Units
-
8 Seats New Used Food Van for SaleUS$ 4,999 - 5,499MOQ: 3 Units
-
2013 Wagon Truck Van for Sale in AfricaUS$ 4,999 - 5,499MOQ: 3 Units
Power
Other, Gasoline/Petrol, 44 kw / 60 PS
Place of Origin
Chongqing, China
Brand Name
Jinbei
Model Number
6390
China New Minivan And Production Lines Technology Guide Service
Our group aims to help our customer build a motor vehicle assembly plant in their country. Operations include stamping, plastics injection molding, welding, painting, sub-assembly and assembly.
It is a flexible and small-investment-start auto plants. The plant's capacity could later be expanded depending on demand. The plant will spur investments. This investment will trigger others, those of their suppliers.
What we can service,
1. vehicle SKD, CKD kits
2. vehicle assembly equipment, installation service and maintenance
3. motor vehicle assembly technical assistance(engineers' sending, workers' training, etc)
Currect assembly vehicle
1. diesel & gasoline pickup is available for LHD and RHD
2. diesel & gasoline SUV
3. 8 seats family minivan & 15 seats commercial van
4. gasoline & electric sightseeing mini moke car
5. city bus, long distance bus, minibus
| Engine | Displacement | 0.998L | |
| Emission standard | Euro 4 | ||
| Rated Power/Rotate speed(kw/(r/rim)) | 44/5600 | ||
| Maximum torque/Rotate speed(N.M/r/rim)) | 85/3500-4000 | ||
| Dimensions | Length x Width x Height | 3790x1550x1930 mm | |
| Wheelbase | 2515 | ||
| Axle load withot load | Front axle load | 515 kg | |
| Rear axle load | 505 kg | ||
| Axle load with load | Front axle load | 725 kg | |
| Rear axle load | 800 kg | ||
| Approach angle/Departure angle | 36°/16° | ||
| Weight | Vehicle curb weight | 1020 kg | |
| Gross comb. weight | 1525 kg | ||
| Performance | Top speed | 120 km/h | |
| Max. grade ability | ≥30 % | ||
| Min. ground clearance | 160 mm | ||
| Min. turning circle | 9.8 m | ||
| Fuel tank | Capacity | 40 L | |
| Wheel&Tire | Type & Size | Tire:175/70R14LT, full-size spare tire with steel rim | |
| Chassis | Front suspension | McPherson independent suspension | yes |
| Rear suspension | non-independent suspension | yes | |
| Brakes | Front Wheel disc brakes | yes | |
| Rear wheel disc brakes | yse | ||
| Steering forms | Rack and pinion | yse | |
| Vacuum booster, two-circuit hydraulic brake, SABS | yse | ||
| Rim Material | Steel | yes | |
| Rim Size | 14-inch | yes | |
| Tire | 165/70 R14 81T | yes | |
| Spare tire | Full-size | yes | |
| Security Configuration | Seatbelt warnnig | yes | |
| Seat belt | Front preload three-point seatbelts | yes | |
| Second row three-point seat belts | yes | ||
| The third row three-point seat belts | yes | ||
| High brake lights | yes | ||
| Exterior,Interior configuration,A/C & audio | wheel rim Decorative Cover | yes | |
| Lifters | Manual | yes | |
| Front windshield | Insulation laminated white glass | yes | |
| Back door Glass | white Tempered glass | yes | |
| Front door glass | Green Tempered glass | yes | |
| Middle door glass | Green Tempered glass | yes | |
| Side window glass | Green Tempered glass | yes | |
| Interior | 5-door and body flat-panel interior | yes | |
| Front door threshold rubber | yes | ||
| Middle door threshold rubber | yes | ||
| Roof interior | Air conditioning hole | yes | |
| Handrail | ALL | yes | |
| Sunvisor | Sunvisor assembly(L) | yes | |
| Sunvisor assembly(R) | yes | ||
| Dashboard | Leather | yes | |
| Center console | Matt black | yes | |
| Air outlet | Shutter | yes | |
| Steering wheel | Three-spoke | yes | |
| Carpet | PVCGrey PVC | yes | |
| Seats number | 7 | ||
| Main/deputy driver's seat | Adjustable cloth seat with pillow | yes | |
| Middle row seat(2 seater) | Adjustable cloth seat with pillow | yes | |

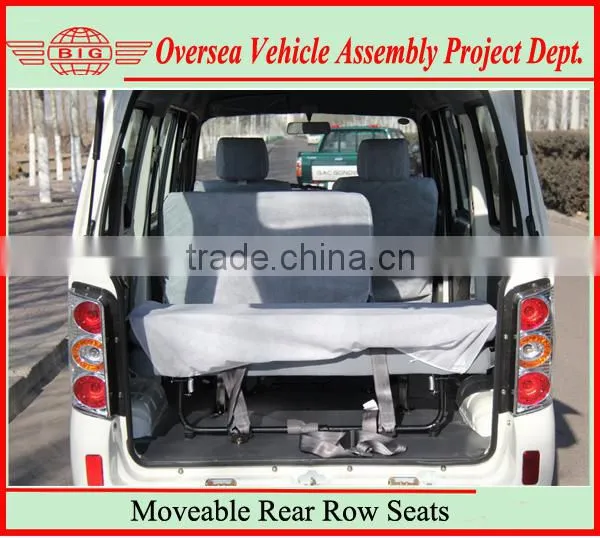

| Backrowseat (3 seater) | Adjustable cloth seat with double pillow,the chairback can flit forward | yes | |
| Combination of instruments | Stepper motor pointer+LCD | yes | |
| Sound system | Radio+MP3 | yes | |
| Double High-fidelity loudhailer | yes | ||
| Air conditioning | Environmental+overhead conditioning | yes | |
| Manual rear view mirror | yes | ||
| Front wiper | yes | ||
| Back door gas spring rod | yes | ||
| Front diamond crystal lights | yes | ||
| Rear combination lights | yes | ||
| Front fog lamps | yes | ||
| Rear top lamps | yes | ||
| Grille | Chrome-plated frame black grille | yes | |
| Front and rear bumpers | same color with body | yes | |
| Front and rear fender | yes | ||
| Door stainless steel rails | yes | ||
What is CBU, SKD, CKD?
CKD = Completely Knocked down parts . All materials supplied loose for final welding and final assembly, or raw body shell and all other parts loose and not assembled.
SKD I = Semi knocked down parts. Car body and trucks cabin are unpainted. The engine, gearbox, axles, suspension, driveshaft, steering, seats, tyres, batteries, exhaust system, electrical, etc. are supplied as individual units for assembly.
SKD II = Car body is fully painted and glazed. Truck cabin is fully painted. The engine, gearbox, axles, suspension, driveshaft, steering, seats, tyres, batteries, exhaust system, electrical, etc. are supplied as individual units for assembly. (SKD-II term may as start phase, it is just need a little equipment(USD50000) to accomplish assembly auto.)
How does this simple motor vehicle assembling plant work?
Preparation workshop → Welding workshop → Painting workshop → Chassis workshop → Final assembling workshop
General Assembly Fixture
Vehicle Body Welding Line
