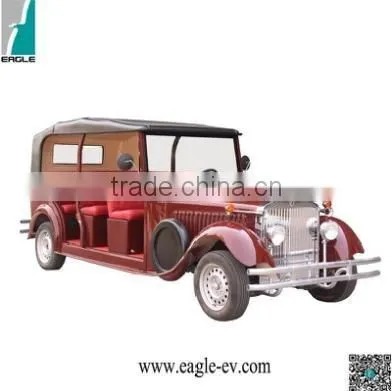

Help CenterElectric Classic Car ,6 Seats, EG6090K of CE Approved
Related Products
-
Electric Classic Car, 12 Seats, EG6120KNegotiableMOQ: 1 Unit -
Electric Classic Car, 9 Seats, EG6090KNegotiableMOQ: 1 Unit
-
Electric Classic Car, 12 Seats, EG6120K RoadsterNegotiableMOQ: 1 Unit
-
4 Seater Electric Golf Trolley Club CarNegotiableMOQ: 1 Unit
-
6 Seater Electric Trolley Golf Carts, EG2068KNegotiableMOQ: 1 Unit
Key Components
| Item | Description |
| Controller | Curtis controller, 350A, imported from USA directly |
| Motor | Rated power 5KW, Chinese brand |
| Battery | Trojan battery, T105+, imported from USA directly |
| Charger |
High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
Performance
| Item | Description |
| Passenger Capacity | 9 |
Range (loaded) (km)* |
up to 70 |
| Max.speed (km/h) | up to 22 |
| Min.turning radius (m) | 7.2 |
| Max.climbing ability(loaded) | up to 15% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 720 |
| Net weight (kgs) | 1050kgs |
Dimensions
| Item | Description |
| Overall dimensions (mm) | 4930x1610x1920 (LxWxH) |
| Min.ground clearance (mm) | 120 |
| Wheelbase (mm) | 350 |
| Front wheel tread (mm) | 1385 |
| Rear wheel tread (mm) | 1385 |
Body and Frame
| Item | Description |
| Frame & Chassis | Unitary welded steel framework |
| Body | FRP |
| F/R bumper | Carbon steel |
| Seat | Sponge with super-fibre leather,with wooden bottom |
| Floor | Skidproof leather and red carpet |
| Side trim | FRP |
| Foot step | Aluminum |
| Dashboard | FPR |
| Side rear view mirror | 2pcs |
Electric System
| Item | Description |
| Lights | 12V, headlight, front turning light, 2 front fog light, taillight (brake light and rear turing light) and 1 rear fog light |
| Wiper assembly | 12V |
| Audio system | Radio with MP3 receiver |
Steering & suspersion
| Item | Description |
| Steering System |
Single-stage rack and pinion steering system, with automatic compensation function |
| Brake System | Dual cycle 4-wheel hydraulic front disc rear drum brake with hand brake |
| Accelerator | stepless speed change |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Gear ratio 12.49:1 |
| Wheel & Tyre | 185/R65-15 tire, 6J-15 steel wheel, wheel cap |
| Container loading qty | Semi-knock-down | Refer Picture |
| 20'ft GP | 1 | |
| 40'ft GP | 2 | |
| 40'HQ | 2 |
- Customization is available
- 13 months warranty from shipping date
- FOC spare parts provided
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
Eagle people believe good service has the same importance as good quality. Eagle’s sales persons can be reached in 24 hours x 365 days. Eagle’s sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.
With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.
