Home > Transportation > Specialized Vehicle > Sightseeing Bus & Car > Chinese Electric Bus Train, 23 Persons, CE Approved

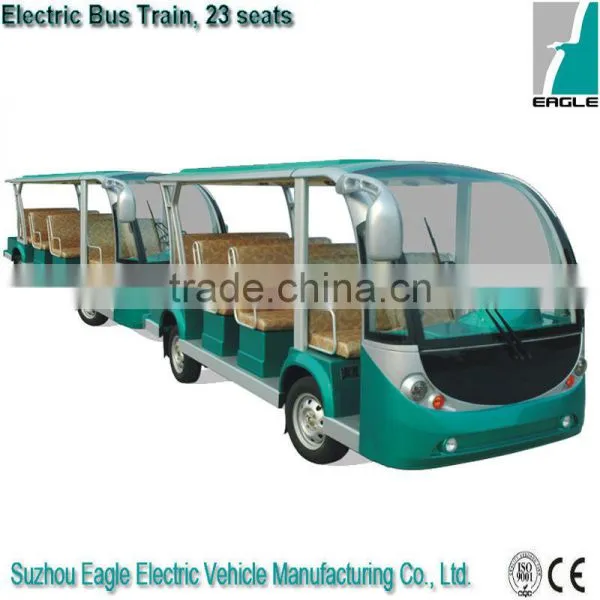

Chinese Electric Bus Train, 23 Persons, CE Approved
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Power:
Electric
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Shuttle Bus With Trailer, 29 Persons, CE ApprovedNegotiableMOQ: 1 Unit -
Electric Classic Car ,6 Seats, EG6090K of CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Classic Car, 12 Seats, EG6120KNegotiableMOQ: 1 Unit
-
Electric Classic Car, 9 Seats, EG6090KNegotiableMOQ: 1 Unit
-
Electric Classic Car, 12 Seats, EG6120K RoadsterNegotiableMOQ: 1 Unit
Power
Electric
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG6118TB with EG6118TB trailer
Chinese Electric bus train, 23 persons, CE approved
Product Description
| Model | EG6118TB+EG6118TB trailer | EG6118TB+EG6118TB trailer 02 |
| System | 72V/6.3KW Series | 72V/7.5KW AC system |
| Key Components | ||
| Battery | 24xT105(185Ah@5hr rate), 2 groups | 24xT105(185Ah@5hr rate), 2 groups |
| Motor | 6.3KW Chinese motor | 7.5KW Chinese motor |
| Controller | Curtis 1209 (400A@2minutes) | Zapi AC2(400A@2minute) |
| Performance | ||
| Passenger capacity | 11+12 | 11+12 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >75 | >75 |
| Max. speed | 40 | 40 |
| Minimum turning radius (m) | 9 | 9 |
| Max. climbing ability (loaded) | 15% | 15% |
| Max. movement after brake at speed of 20km/h | ≤N/A | ≤N/A |
| Max. loading weight | 1760kgs | 1760kgs |
| Net weight | 2310kgs | 2310kgs |
| Dimensions | ||
| Overall dimensions (mm) | 2pcs, 5000x1490x2050 | |
| Min. ground clearance (mm) | 135 | |
| Wheelbase (mm) front tractor | 2710 | |
| Front wheel tread (mm) | 1222 | |
| Rear wheel tread (mm) | 1185 | |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||
| Body and Frame | ||
| Frame | Welded steel framework with sand blasting+paint treatment | |
| Body | Fibreglass | |
| Roof | Fibreglass+aluminum frame, with roof handle | |
| Windshield | Laminated glass | |
| 2point seat belt | 16pcs | |
| 2point seat belt | 23pcs | |
| Overshadowing Curtain | ||
| Enclosure | PVC | |
| Large Seats: | ||
| 1) backrest and cushion | Sponge + artificial leather | |
| 2) armrest | Aluminum | |
| New seat | Backrest and seat cushion be separated | |
| Floor | Bamboo + artificial leather | |
| Cup drinker holder | 1pc | |
| Inner rear view mirror | One piece per cart in the middle of the windshield, just in the front tractor | |
| Side rear view mirror | Two pieces per cart | |
| Coin box | ||
| Battery watering system,72V system | without water supply tool | |
| Manual Pump | water supply tool (other water supply tools are available) | |
| Electric system | ||
| Lighting system and horn | Front: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light),with DC-DC converter (converting from 48V to 12V) , horn. | |
| License plate light | 12V | |
| Dashboard | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch; Headlight switch, turn signal switch, wiper switch, horn button; | |
| Audio System | Radio and MP3 receiver | |
| CD player to replace MP3 receiver | ||
| Microphone | Wired | |
| Wiredless | ||
| Speaker | 4pcs | |
| Reversing alarm | ||
| Switch assembly | Lights switch, horn switch, wiper switch | |
| Wiper | 12V | |
| with water sprayer | ||
| Emergency power-off button | ||
| Solar panel | 2pcs, 72V/270W | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | |
| Steering and Suspension | ||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |
| Right hand drive system | ||
| Electrical power steering | ||
| Brake system | Four wheel hydraulic drum brake+hand parking brake | |
| Transmission system | Clutch, 5F+1R gear box, transmission shaft | |
| Front suspension | Independent suspension, helix spring + shock absorber | |
| Rear suspension | rear plate spring + shock absorber | |
| Wheel & Tyre | 4J*12 Steel wheel, wheel cap, 155R12,8PR | |
| 4J*12 Aluminum wheel, | ||
Color
Packaging & Shipping
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
