Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
> 8
Fuel Type:
Electric
Battery Voltage:
48V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Classic Car, 9 Seats, EG6090KNegotiableMOQ: 1 Unit -
Electric Classic Car, 12 Seats, EG6120K RoadsterNegotiableMOQ: 1 Unit
-
Electric Classic Car ,6 Seats, EG6090K of CE ApprovedNegotiableMOQ: 1 Unit
-
4 Seater Electric Golf Trolley Club CarNegotiableMOQ: 1 Unit
-
6 Seater Electric Trolley Golf Carts, EG2068KNegotiableMOQ: 1 Unit
Fuel Type
Electric
Battery Voltage
48V
Certification
CE
Application

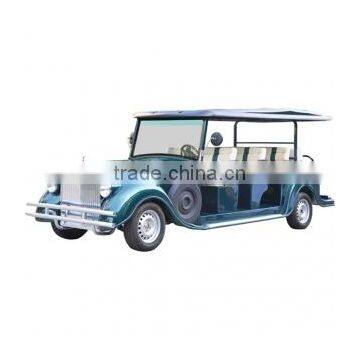

As the other two models,Electric classic car EG6120K can be used in amusement park, theme park,airport,resort,hotel,wedding party and any close site for people carrying, especially VIP!
Key Components
| Item | Description |
| Controller | Curtis controller, 350A, imported from USA directly |
| Motor | Rated power 5KW(6.8HP), Chinese brand,DC |
| Battery | Trojan battery, T105+, imported from USA directly |
| Charger | 48V High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) 72V Transformed offboard charger (input 100V-240V,50-60HZ, output 72V/25A) |
Performance
| Item | Description |
| Passenger Capacity | 12 |
Range (loaded) (km)* | up to 70 |
| Max.speed (km/h) | up to 25 |
| Min.turning radius (m) | N/A |
| Max.climbing ability(loaded) | up to 10% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 960 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (mm) | N/A |
| Min.ground clearance (mm) | 120 |
| Wheelbase (mm) | 3500 |
| Front wheel tread (mm) | 1385 |
| Rear wheel tread (mm) | 1385 |
Body and Frame
| Item | Description |
| Frame & Chassis | FRP Welded steel framework with sand blasting and painting |
| Body | FRP |
| Roof | FRP |
| Windshield | Front Laminated glass, rear toughened glass |
| Seat | Sponge with super-fibre leather,with wooden bottom |
| Seatbelt | 2-point seatbelt |
| Floor | Skidproof leather and red carpet |
| Front bumper | Aluminum |
| Side trim | FRP |
| Foot step | Aluminum |
| Dashboard | FRP, with F/R switch, emergency light switch, speedometer, amperemeter, voltameter, combination switch, etc.. |
| Side rear view mirror | 2pcs |
Electric System
| Item | Description |
| Lights | 12V, headlight, front turning light, 2 front fog light, taillight (brake light and rear turing light) and 1 rear fog light |
| Horn | Air-horn |
| Reverse buzzer | Electric, 12V |
| Emergency Button | For cutting the main power |
| Combination switch | including switch for headlight, turning light, fog light and horn |
| DC/DC converter | 48V/12V, 72V/12V |
| Digital Meter | Amperemeter, voltometer, speedometer |
| Audio system | Radio with MP3 receiver and 2 waterproof speaker |
Steering & suspersion
| Item | Description |
| Steering System | Single-stage rack and pinion steering system, with automatic compensation function |
| Brake System | 4-wheel hydraulic front disc rear drum brake |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Independent suspension |
| Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, steel differential case, 12.49:1 gear ratio |
| Wheel & Tyre | 175/70R14 tire, 5J*14 steel wheel, wheel cap |
Option Accessories
To increase the sales value of our electric classic car, we also provide many optional accessories.
| Item | Option description |
| 1 | Chromeplate wheel cover |
Color Options
| Item | Pure white | Pure black | Pearl red |
Body (including roof) | |||
| Lake green | Greece Yellow | Pearl White | |
Packing & Shipping
Electric classic car will be packed in steel crate
| Container loading qty | Assembly | Refer Picture |
| 20'ft GP | 1 | |
| 40'ft GP | 2 | |
| 40'HQ | 2 |
Warranty
All electric classic car sold by us are quality guaranteed.
We provide 13 months warranty to our electric classic cars from the shipping date.
