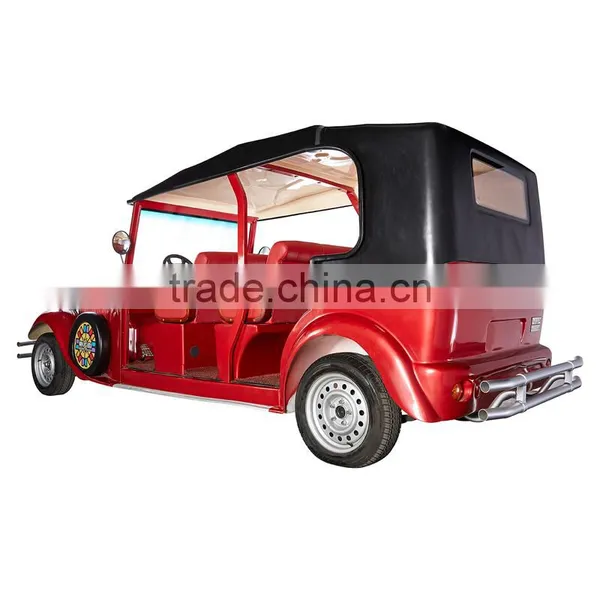

Electric Classic Car, 9 Seats, EG6090K

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

> 8

Fuel Type:

Electric

Battery Voltage:

48V

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Fuel Type Electric

Battery Voltage 48V

Certification CE

Application

Electric classic car EG6090K can be used in amusement park, theme park,airport and any close site for people carrying, especially VIP!

Key Components

Item	Description
Controller	Curtis controller, 350A, imported from USA directly
Motor	Rated power 5KW(6.8HP), Chinese brand,AC/DC
Battery	Trojan battery, T105+, imported from USA directly
Charger	48V High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) 72V Transformed offboard charger (input 100V-240V,50-60HZ, output 72V/25A)

Performance

Item	Description
Passenger Capacity	9
Range (loaded) (km)*	up to 90
Max.speed (km/h)	up to 28
Min.turning radius (m)	7.2
Max.climbing ability(loaded)	up to 15%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	720
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Body and Frame

Item	Description
Frame & Chassis	FRP Welded steel framework with sand blasting and painting
Body	FRP
Roof	FRP
Windshield	Front Laminated glass, rear toughened glass
Seat	Sponge with super-fibre leather,with wooden bottom
Floor	Skidproof leather and red carpet
Side trim	FRP
Foot step	Aluminum
Dashboard	FRP, with F/R switch, emergency light switch, speedometer, amperemeter, voltameter, combination switch, etc..
Side rear view mirror	2pcs

Electric System

Item	Description
Lights	12V, headlight, front turning light, 2 front fog light, taillight (brake light and rear turing light) and 1 rear fog light
Horn	Air-horn
Reverse buzzer	Electric, 12V
Combination switch	including switch for headlight, turning light, fog light and horn
DC/DC converter	48V/12V, 72V/12V
Digital Meter	Amperemeter, voltometer, speedometer
Audio system	Radio with MP3 receiver and 2 waterproof speaker

Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	4-wheel hydraulic front disc rear drum brake
Accelerator	Resistance type, stepless speed change
Front suspension	Independent suspension
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, steel differential case, 12.49:1 gear ratio
Wheel & Tyre	185/R65-15 tire, 6J-15 steel wheel, wheel cap
