Help CenterFigure2002 2202 Specif Ication and Reference Dimensions of Union
Related Products
-
Figure 1502 Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces -
Figure 1002 Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces
-
Figure 1003 Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces
-
Figure 602Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces
-
Figure 402 606 Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces
For this union, only the 2in type is available with a replaceable resilient nitrile-butadiene rubber seal ring combined in the stainless steel liner tube, providing complete compression protection in application with extra high pressure. The design of detachable nut/segment ring/retainer ring simplifies the removal of the nut from the piping.

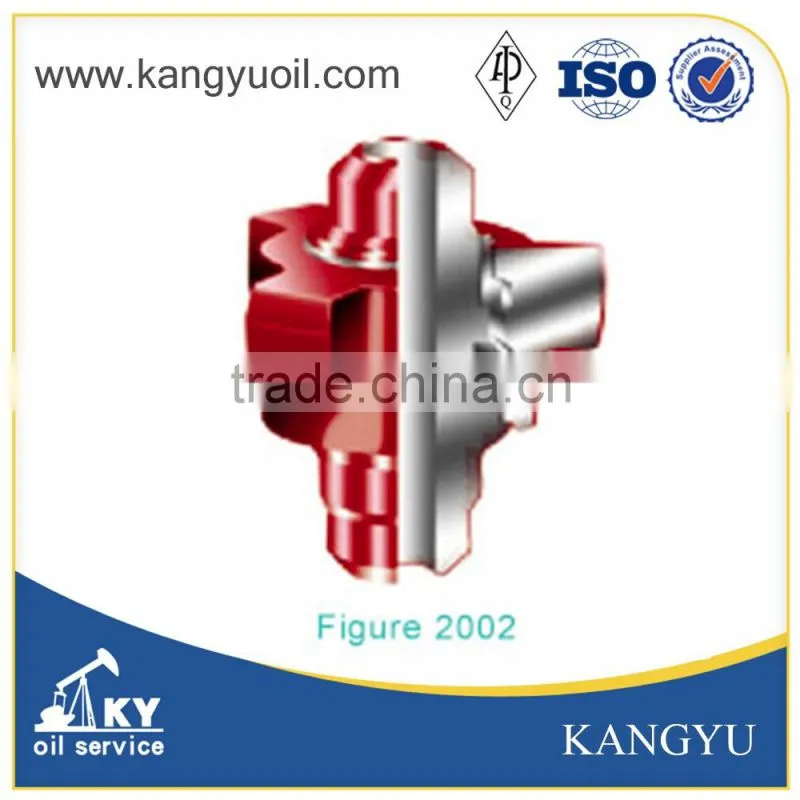

For figure 2002, 20000 PSI NSCWP, test pressure at 30000PSI with red nut and parts
Nominal pipe |
Total length |
Nut radius |
Materials |
Weight |
|||||
Nut |
Part |
||||||||
in |
mm |
in |
mm |
in |
mm |
|
|
lbs |
kgs |
2 |
50.8 |
73/8 |
187.32 |
311/18 |
93.66 |
SF |
AS |
22.5 |
49.60 |

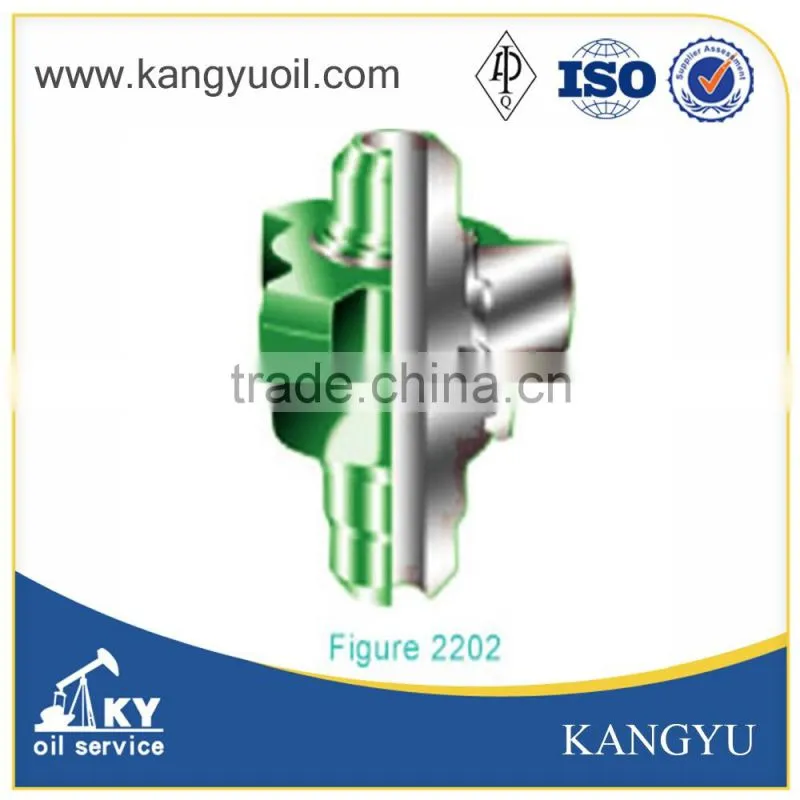

With fluoroelastomer seal ring, 15000PSI NSCWP and the heat-treated parts 100% subjected to hardness test, this model complies with National Association of Corrosion Engineers Standard MR-01-75 and American Petroleum Institute RP-14E.
This product is designated for application with acid gases. Green nuts and parts.
Note: DIC = ductile iron casting SC = steel casting SF = steel forging AS = alloy steel
1. Your inquiry related to our products or prices will be replied in 12 hours.
2. Well-trained and experienced staffs to answer all your inquiries.
3. Protection of your sales area, ideas of design and all your private information
standard package or according to customers needs
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
