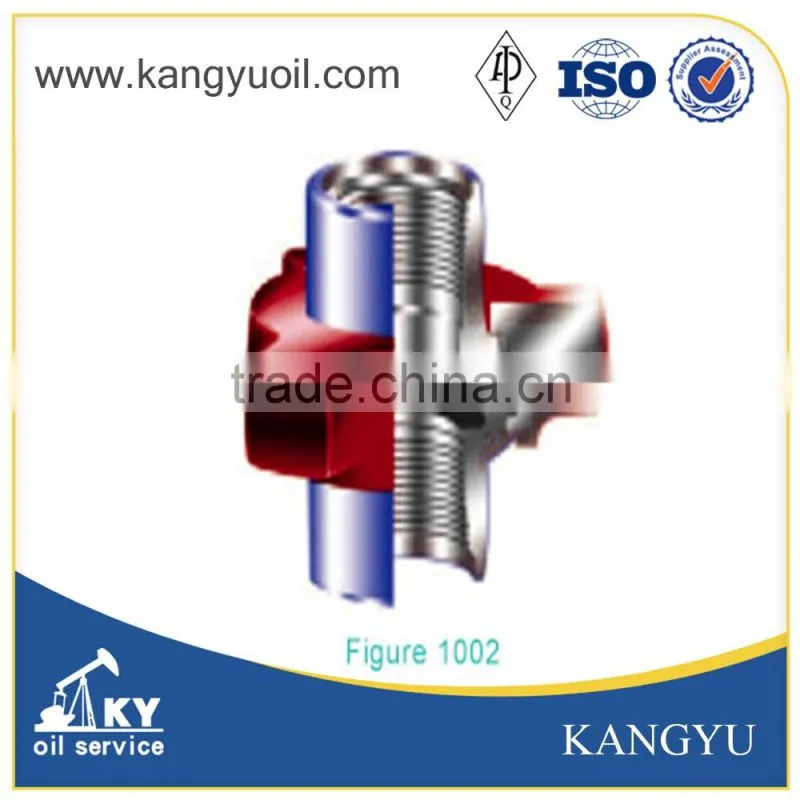

Help CenterFigure 1002 Specif Ication and Reference Dimensions of Union
Related Products
-
Figure 1003 Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces -
Figure 602Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces
-
Figure 402 606 Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces
-
API Wellhead Tools Medium and Heavy Crudes Efficient Gas-water Sand SeparatorNegotiableMOQ: 1 Set
-
Figure 400 Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces
Resilient nitrile-butadiene rubber seal ring is mounted.
It is recommended for cement filling, fracturing, acidizing, testing and choke and kill line. It is designed for high-pressure systems including truck-mounted system. Also, it may be used as
pressureless seal union. Butt weld Sch. 160 or XXH is desired.
Specif ication and reference dimensions of union
Nominal pipe |
Total length |
Pipck bore |
Nut radius |
Materials |
Weight |
||||||
Nut |
Part |
||||||||||
in |
mm |
in |
mm |
in |
mm |
in |
mm |
|
|
lbs |
kgs |
1 |
25.4 |
31/2 |
88.9 |
1/4 |
6.4 |
21/4 |
57.2 |
SF |
SF |
3.5 |
1.6 |
2 |
50.8 |
53/18 |
131.8 |
1/4 |
6.4 |
311/18 |
93.7 |
SF |
SF |
13.25 |
5.9 |
3 |
76.2 |
63/8 |
161.92 |
3/8 |
9.5 |
43/8 |
117.5 |
SF |
SF |
21.0 |
9.5 |
4 |
101.6 |
81/18 |
204.8 |
3/8 |
9.5 |
51/4 |
133.4 |
SF |
SF |
39.5 |
17.9 |
5 |
127 |
64/6 |
172.7 |
|
|
6 |
152.4 |
SF |
SF |
61.67 |
28 |
6 |
152.4 |
71/18 |
179.4 |
|
|
71/4 |
184.2 |
SF |
SF |
70.48 |
32 |
