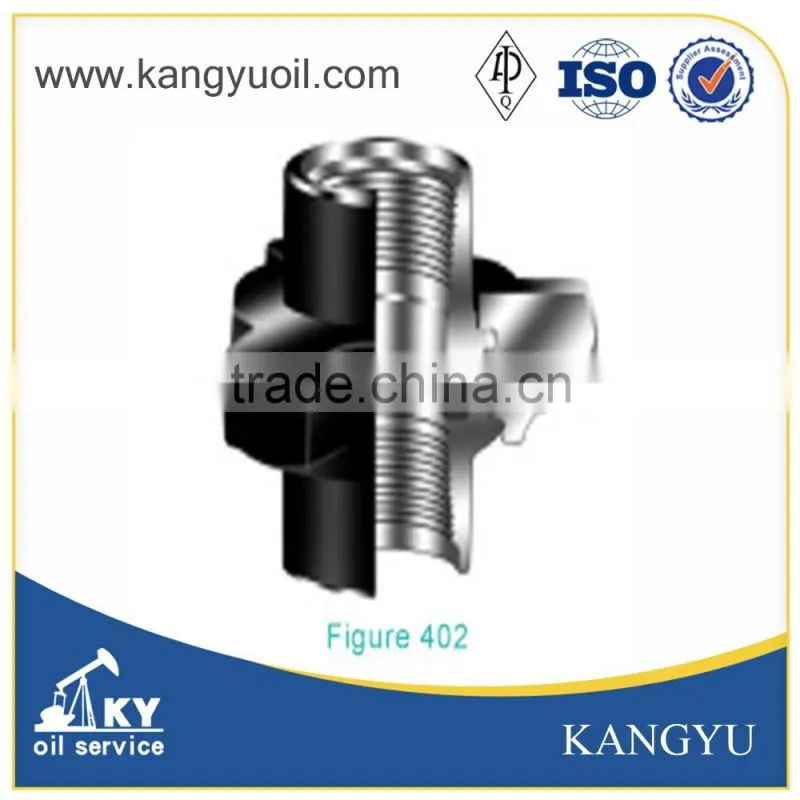

Figure 402 606 Specif Ication and Reference Dimensions of Union
It is recommended for use in the steam system and in the connection of manifold and pipe for production,drilling and well repair.
Nominal pipe |
Total length |
Pipck bore |
Nut radius |
Materials |
Weight |
||||||
Nut |
Part |
||||||||||
in |
mm |
in |
mm |
in |
mm |
in |
mm |
|
|
lbs |
kgs |
1 |
25.4 |
317/32 |
89.7 |
1/4 |
6.4 |
25/18 |
58.7 |
SF |
SF |
3.5 |
1.6 |
2 |
50.8 |
61/4 |
158.8 |
3/18 |
4.8 |
33/4 |
95.3 |
SF |
SF |
15.0 |
6.8 |

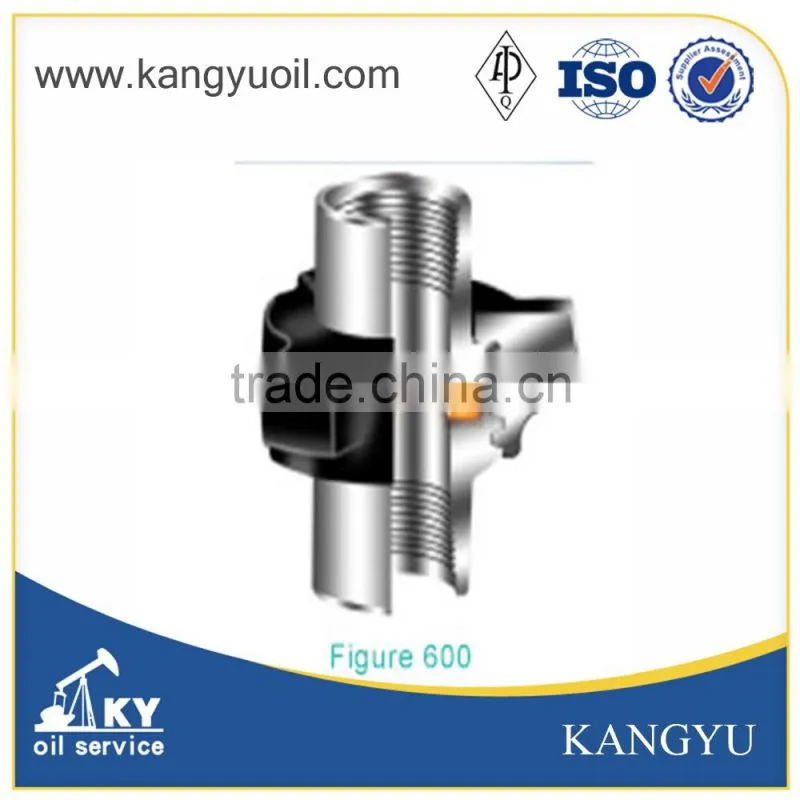

For figure 600, 6000PSI NSCWP, test pressure at 9000PSI with black nut and silvery parts
1. Your inquiry related to our products or prices will be replied in 12 hours.
2. Well-trained and experienced staffs to answer all your inquiries.
3. Protection of your sales area, ideas of design and all your private information
standard package or according to customers needs
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
